I95011

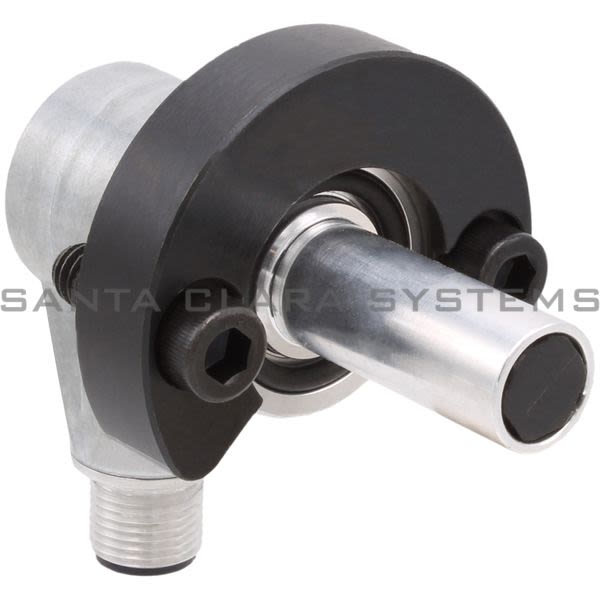

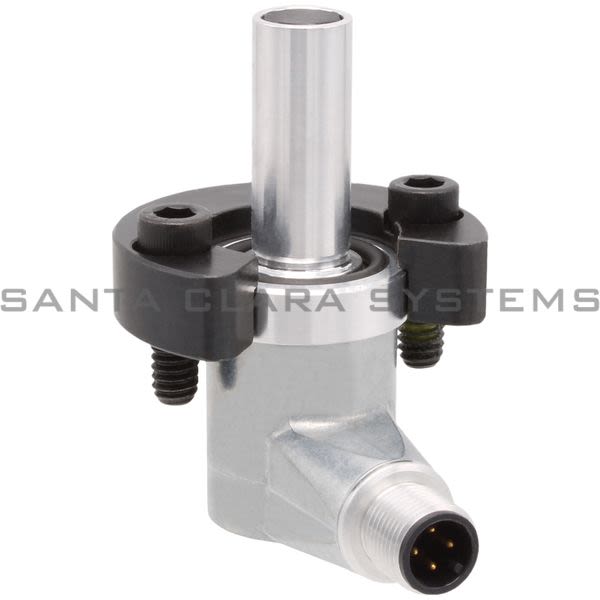

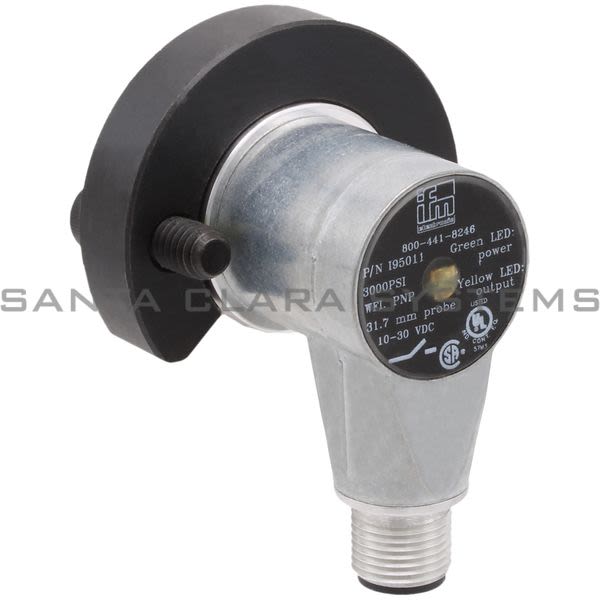

Efector - Inductive Sensor | IFG3002-BPKG/US-100-DPS

Current response time:

19 Minutes 33 Seconds

Description: Inductive Sensor | IFG3002-BPKG/US-100-DPS
Electrical Design: Pnp
Output Function: Normally Open
Mounting: Flush Mountable
Material: Aluminum
Pressure Rating [Psi]: 3000
Magnetic-Field Immune: Yes
Operating Voltage [V]: 10...30 Dc
Current Consumption [Ma]: 15
Reverse Polarity Protection: Yes
Max. Voltage Drop Switching Output Dc [V]: 2
Permanent Current Rating Of Switching Output Dc [Ma]: 200
Short-Time Current Rating Of Switching Output [Ma]: 200
Switching Frequency Dc [Hz]: 20

Short-Circuit Protection: Yes
Type Of Short-Circuit Protection: Yes (Non-Latching)
Overload Protection: Yes
Sensing Range [Mm]: 2
Real Sensing Range Sr [Mm]: 2 10 %
Correction Factor: Stainless Steel: 0.7 / Brass: 0.4 / Aluminum: 0.3
Hysteresis [% Of Sr]: 5
Switch-Point Drift [% Of Sr]: -0.5...0.5
Ambient Temperature [C]: -25...70
Protection: Ip 67
Cylinder Type: Pneumatic And Hydraulic Cylinders
Display: Switching Status 1 X Led, Yellow Power 1 X Led, Green
Connection: Connector: 1 X M12
Alternate Manufacturer Name: IFM

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on I95011 . Santa Clara Systems carries 2,284 items from Efector.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
