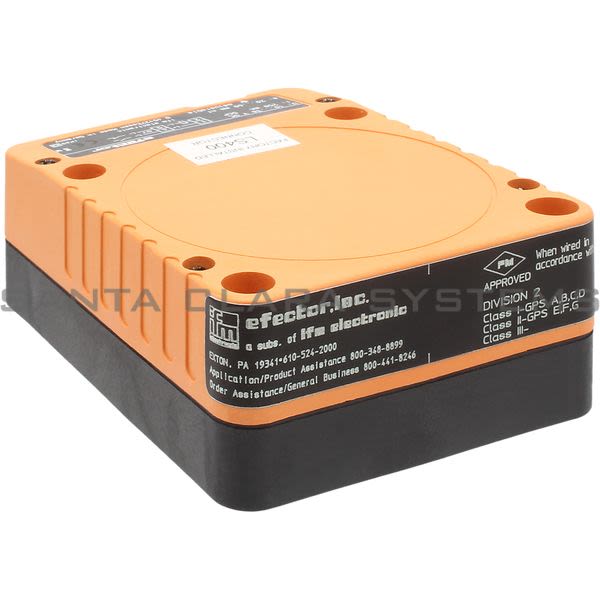

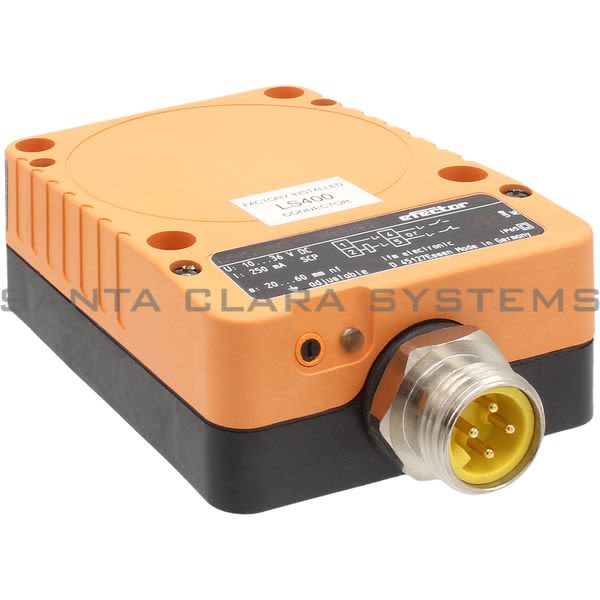

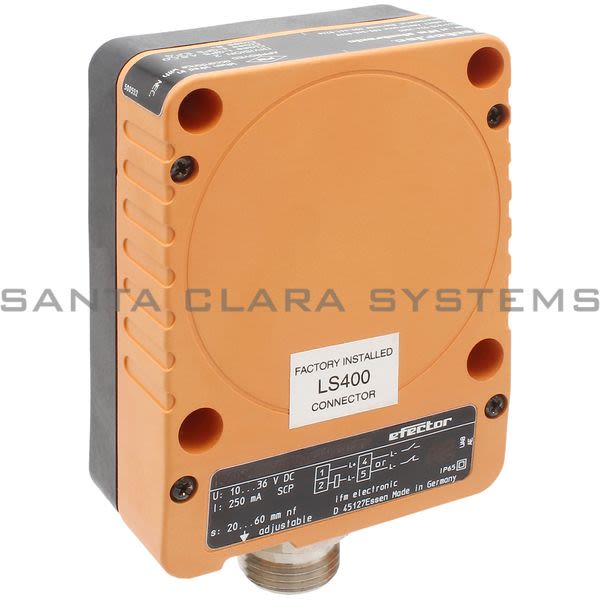

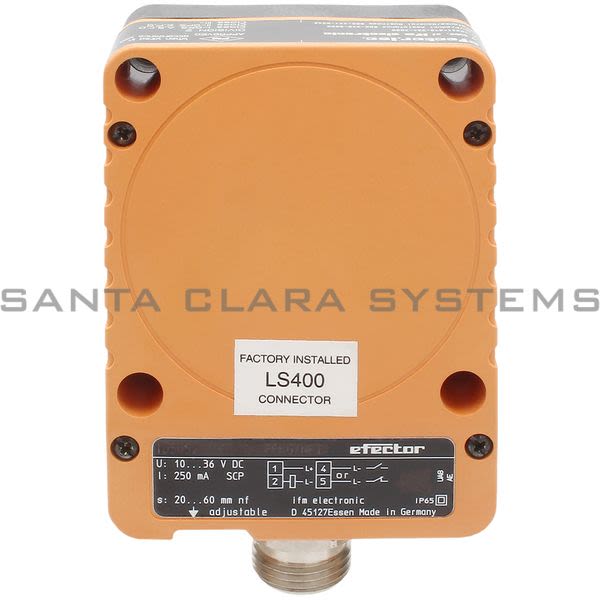

Efector ID8501 Inductive Sensor | IDE3060-FPKG/LS400LPS Product Image

ID8501

Efector - Inductive Sensor | IDE3060-FPKG/LS400LPS

Current response time:

11 Minutes 20 Seconds

Description: Inductive Sensor | IDE3060-FPKG/LS400LPS
Electrical Design: Pnp
Output Function: Normally Open / Closed; (Selectable)
Mounting: Non-Flush Mountable
Material: Ppe
Operating Voltage [V]: 10...36 Dc
Current Consumption [Ma]: 15; (24 V)
Protection Class: Ii
Reverse Polarity Protection: Yes
Max. Voltage Drop Switching Output Dc [V]: 2.5
Permanent Current Rating Of Switching Output Dc [Ma]: 250
Switching Frequency Dc [Hz]: 100
Short-Circuit Protection: Yes
Type Of Short-Circuit Protection: Yes (Non-Latching)
Overload Protection: Yes
Sensing Range [Mm]: 60

Sensing Range Adjustable: Yes
Factory Setting Sensing Range [Mm]: 60
Real Sensing Range Sr [Mm]: 60 ± 10 %
Operating Distance [Mm]: 0...48.6
Correction Factor: Steel: 1 / Stainless Steel: 0.7 / Brass: 0.4 / Aluminum: 0.3 / Copper: 0.2
Hysteresis [% Of Sr]: 1...15
Switch-Point Drift [% Of Sr]: -10...10
Ambient Temperature [°C]: -25...80
Protection: Ip 65
Emc: En 61000-4-2 Esd - Kv Cd / 8 Kv Ad En 61000-4-3 Hf Radiated 10 V/M En 61000-4-4 Burst 2 Kv En 61000-4-5 Surge 0,5 Kv Line To Line, Ri: 2 Ohm En 61000-4-6 Hf Conducted 10 V En 55011 Emission Class B
Housing: Rectangular
Dimensions [Mm]: 105 X 80 X 40
Display: Switching Status 1 X Led, Yellow
Accessories (Supplied): Screwdriver: 1
Connection: Connector: 1 X 7/8"
Alternate Manufacturer Name: IFM
