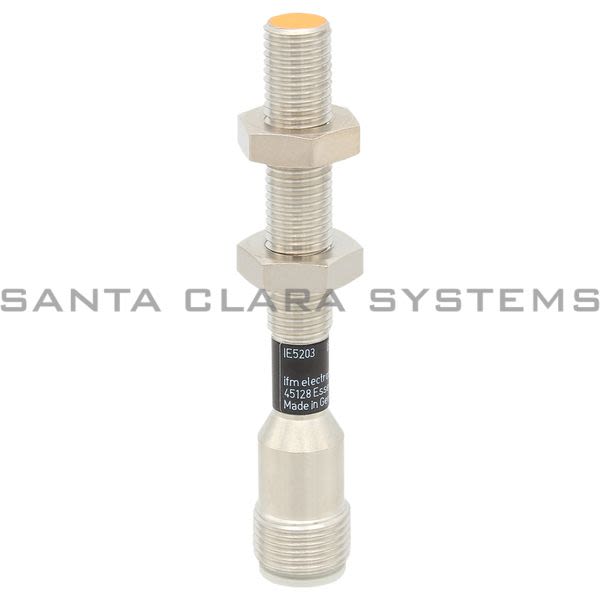

• Efector IE5203 Inductive Sensor | IEA2001-FROG/US-100-IRF Product Image

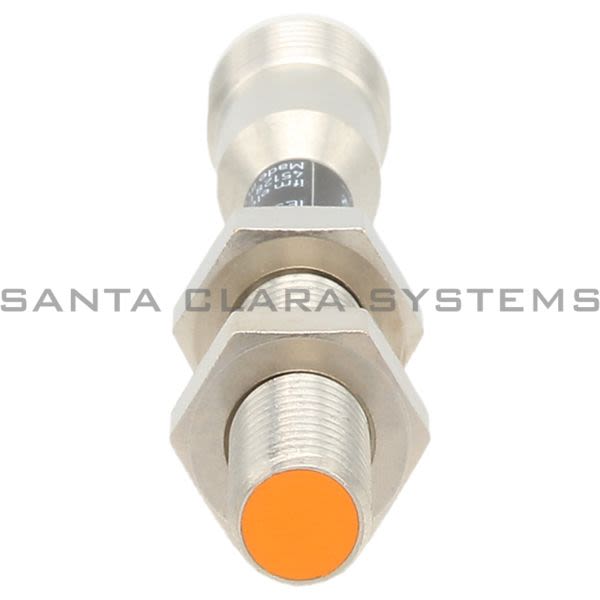

  • Efector IE5203 Inductive Sensor | IEA2001-FROG/US-100-IRF Product Image
  • Efector IE5203 Inductive Sensor | IEA2001-FROG/US-100-IRF Product Image
  • Efector IE5203 Inductive Sensor | IEA2001-FROG/US-100-IRF Product Image
  • Efector IE5203 Barcode

IE5203

Product Summary:

  • Electrical Design: DC PNP/NPN
  • Output Function: Normally Open / Closed Programmable
  • Mounting: flush mountable
  • Material: brass white bronze coated; sensing face: PBT
  • Sensing Range [mm]: 1
Get a Quote

Current response time:

15 Minutes 39 Seconds
  • Description: Inductive Sensor | IEA2001-FROG/US-100-IRF
  • Electrical Design: DC PNP/NPN
  • Output Function: Normally Open / Closed Programmable
  • Mounting: flush mountable
  • Material: brass white bronze coated; sensing face: PBT
  • Sensing Range [mm]: 1
  • Ambient Temperature [C]: -25...80
  • Operating Voltage [V]: 5...36 DC; cULus - Class 2 source required
  • Alternate Manufacturer Name: IFM
  • Housing: Threaded type
  • Dimensions [mm]: M8 x 1 / L = 69
  • Protection class: III
  • Reverse polarity protection: no
  • Max. voltage drop switching output DC [V]: 4.6
  • Minimum load current [mA]: 4
  • Max. leakage current [mA]: 0.8
  • Permanent current rating of switching output DC [mA]: 200
  • Switching frequency DC [Hz]: 2000
  • Short-circuit protection: yes
  • Overload protection: yes
  • Real sensing range Sr [mm]: 1 10 %
  • Operating distance [mm]: 0...0.8
  • Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.3 / copper: 0.2
  • Hysteresis [% of Sr]: 1...15
  • Switch-point drift [% of Sr]: -10...10
  • Protection: IP 67
  • EMC: EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 3 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 3 V EN 55011 class B
  • MTTF [years]: 3338
  • UL approval: Ta -25...80 C Enclosure type Type 1 voltage supply Class 2 File number UL E174191
  • Weight [g]: 22.5
  • Thread designation: M8 x 1
  • Tightening torque [Nm]: A = 5 mm: 1 Nm; B: 2 Nm
  • Display: Switching status 1 x LED, yellow
  • Accessories (supplied): lock nuts: 2
  • Pack quantity: 1 pcs.
  • Connector: 1 x M12
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on IE5203 . Santa Clara Systems carries 2,078 items from Efector.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
