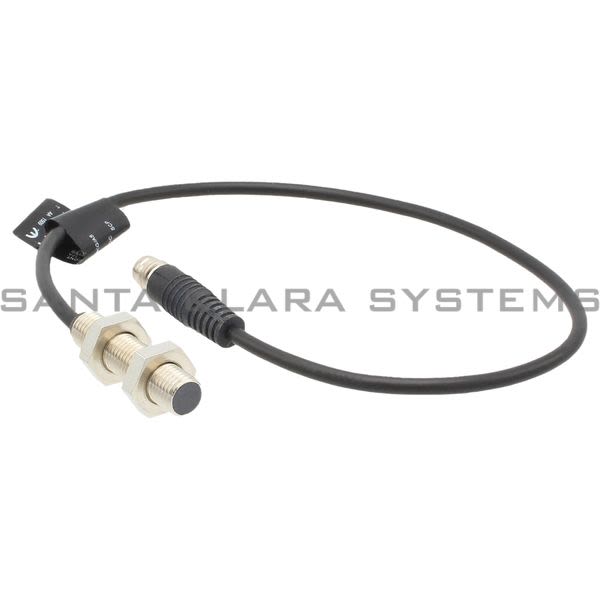

• Efector IE5344 Inductive Sensor | IEBC003BASKG/0.3M/AS Product Image

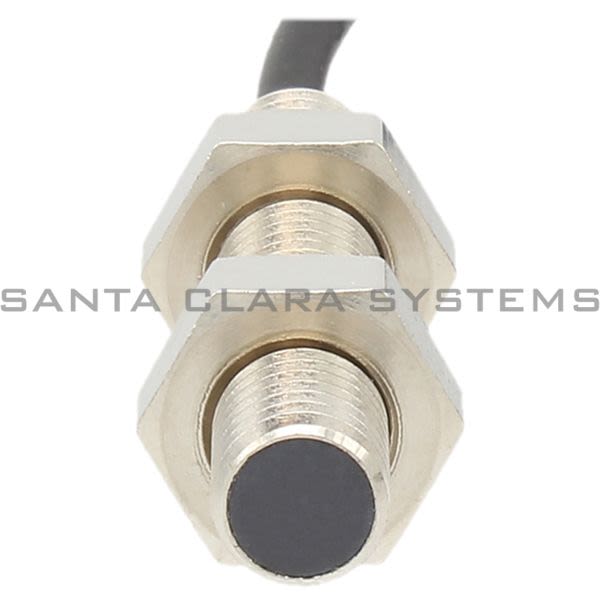

  • Efector IE5344 Inductive Sensor | IEBC003BASKG/0.3M/AS Product Image

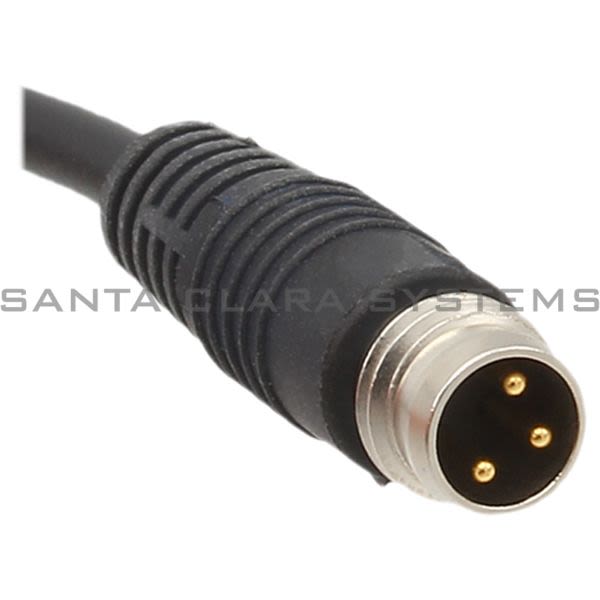

  • Efector IE5344 Inductive Sensor | IEBC003BASKG/0.3M/AS Product Image

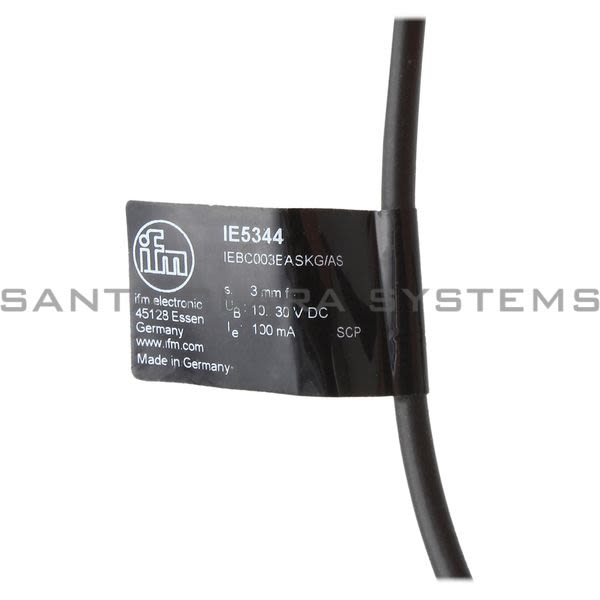

  • Efector IE5344 Inductive Sensor | IEBC003BASKG/0.3M/AS Product Image
  • Efector IE5344 Barcode

IE5344

Product Summary:

  • Electrical Design: Pnp/Npn
  • Output Function: Normally Open
  • Mounting: Flush Mountable
  • Material: Brass White Bronze Coated; Sensing Face: Lcp
  • Operating Voltage [V]: 10...30 Dc
Get a Quote

Current response time:

7 Minutes 40 Seconds
  • Description: Inductive Sensor | IEBC003BASKG/0.3M/AS
  • Electrical Design: Pnp/Npn
  • Output Function: Normally Open
  • Mounting: Flush Mountable
  • Material: Brass White Bronze Coated; Sensing Face: Lcp
  • Operating Voltage [V]: 10...30 Dc
  • Current Consumption [Ma]: < 10; (Only In 3-Wire Operation)
  • Protection Class: Iii
  • Reverse Polarity Protection: Yes
  • Max. Voltage Drop Switching Output Dc [V]: 2.8
  • Minimum Load Current [Ma]: 2
  • Max. Leakage Current [Ma]: 0.5; (Only In 2-Wire Operation)
  • Permanent Current Rating Of Switching Output Dc [Ma]: 100; (Only In 2-Wire Operation)
  • Switching Frequency Dc [Hz]: 1000
  • Short-Circuit Protection: Yes
  • Type Of Short-Circuit Protection: Yes (Non-Latching)
  • Overload Protection: Yes
  • Sensing Range [Mm]: 3
  • Operating Distance [Mm]: 0...2.4
  • Correction Factor: Steel: 1 / Stainless Steel: 0.7 / Brass: 0.5 / Aluminum: 0.4 / Copper: 0.3
  • Hysteresis [% Of Sr]: 1...15
  • Ambient Temperature [C]: 0...60
  • Protection: Ip 67
  • Emc: En 60947-5-2
  • Ul Approval: Ta -25...80 C Enclosure Type Type 1 Voltage Supply Limited Voltage/Current File Number Ul E174191
  • Housing: Threaded Type
  • Dimensions [Mm]: M8 X 1 / L = 37
  • Thread Designation: M8 X 1
  • Display: Switching Status 1 X Led, Yellow
  • Accessories (Supplied): Lock Nuts: 2
  • 2-Wire: Connector: 1 X M8; Locking: Snap-Fit
  • Alternate Manufacturer Name: IFM
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on IE5344 . Santa Clara Systems carries 2,078 items from Efector.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
