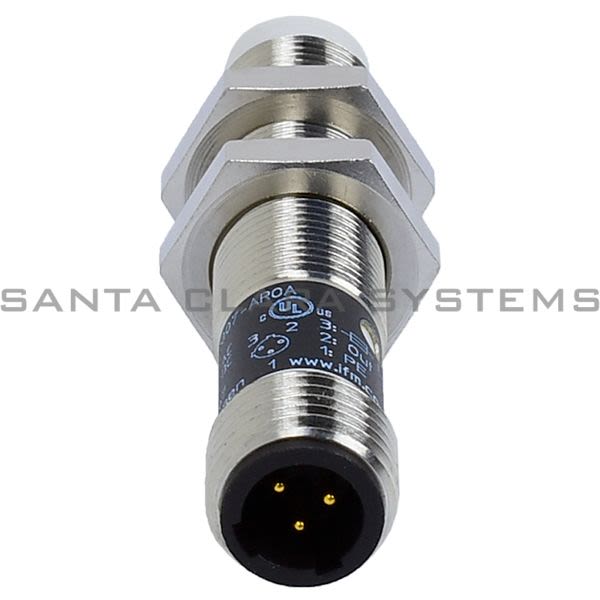

• Efector IF0312 Inductive Sensor | IFK2007-AROA/SL/LS-100AK RT Product Image

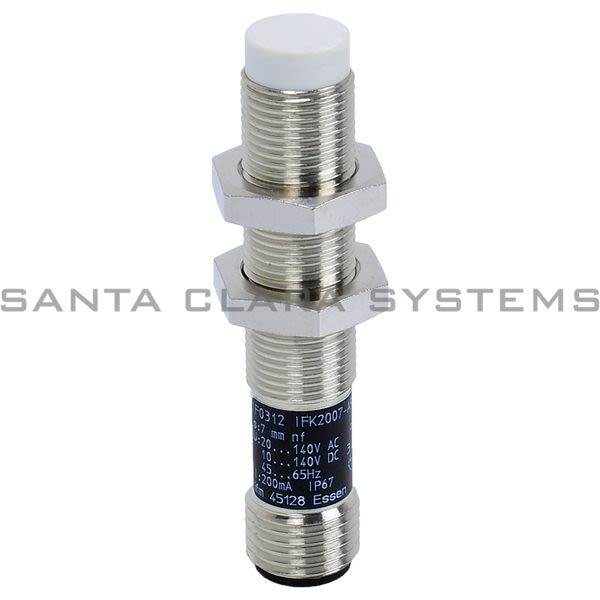

  • Efector IF0312 Inductive Sensor | IFK2007-AROA/SL/LS-100AK RT Product Image

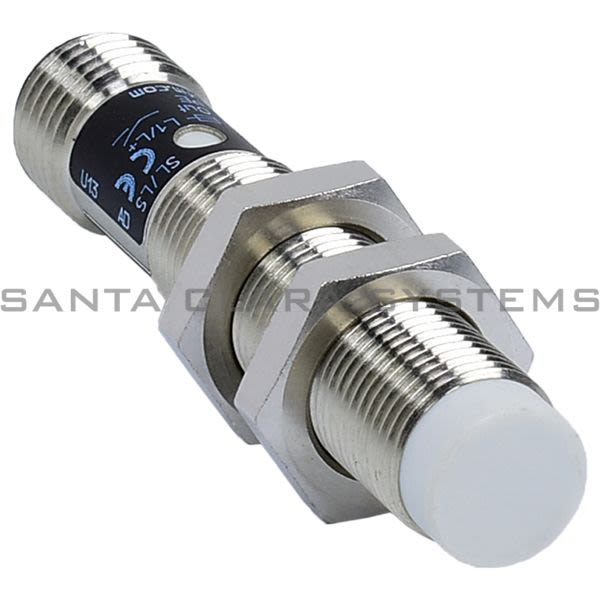

  • Efector IF0312 Inductive Sensor | IFK2007-AROA/SL/LS-100AK RT Product Image

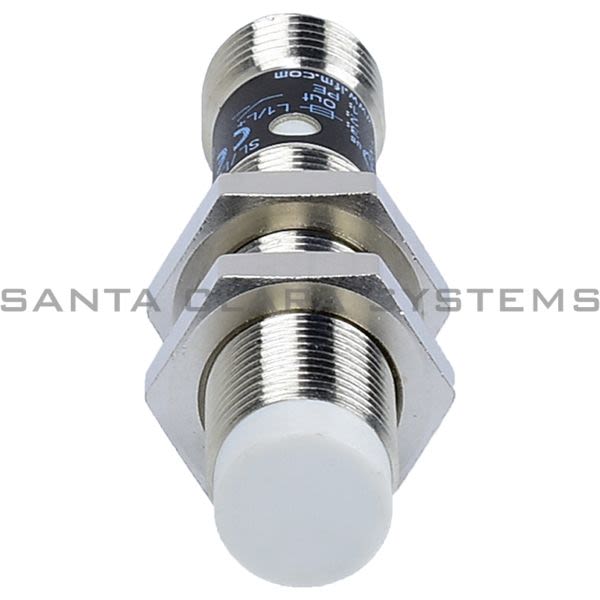

  • Efector IF0312 Inductive Sensor | IFK2007-AROA/SL/LS-100AK RT Product Image
  • Efector IF0312 Barcode

IF0312

Product Summary:

  • Electrical Design: AC/DC
  • Output Function: Normally Open
  • Operating Voltage: 20...140 AC / 10...140 DC (47...63 Hz AC)
  • Sensing Range: 7mm
  • Material: brass white bronze coated; PBT
Get a Quote

Current response time:

5 Minutes 8 Seconds
  • Description: Inductive Sensor | IFK2007-AROA/SL/LS-100AK RT
  • Electrical Design: AC/DC
  • Output Function: Normally Open
  • Operating Voltage: 20...140 AC / 10...140 DC (47...63 Hz AC)
  • Sensing Range: 7mm
  • Material: brass white bronze coated; PBT
  • Ambient Temperature [C]: -25 to 70
  • Alternate Manufacturer Name: IFM
  • Housing: Threaded type
  • Dimensions [mm]: M12 x 1
  • System: Increased sensing range
  • Frequency AC [Hz]: 47...63
  • Operating voltage [V]: 20...140 AC / 10...140 DC
  • Protection class: I
  • Reverse polarity protection: no
  • Max. voltage drop switching output DC [V]: 5
  • Max. voltage drop switching output AC [V]: 5
  • Minimum load current [mA]: 5
  • Max. leakage current [mA]: 0.8
  • Permanent current rating of switching output AC [mA]: 200
  • Permanent current rating of switching output DC [mA]: 200
  • Short-time current rating of switching output [mA]: 900; (20 ms / 0,5 Hz)
  • Switching frequency AC [Hz]: 25
  • Switching frequency DC [Hz]: 90
  • Short-circuit proof: no
  • Overload protection: no
  • Operating distance [mm]: 0...5.7
  • Increased sensing range: yes
  • Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.3 / copper: 0.2
  • Hysteresis [% of Sr]: 3...15
  • Protection: IP 67
  • EMC: EN 60947-5-2 EN 55011 class B
  • MTTF [years]: 1684
  • UL approval: Ta 0...40 C Enclosure type Type 1 voltage supply Hazardous voltage File number UL E174191
  • Weight [g]: 30.1
  • Display: Switching status 1 x LED, red
  • Required protection: miniature fuse to IEC60127-2 sheet 1; 2 A; fast acting
  • Accessories (supplied): lock nuts: 2
  • Remarks: Recommendation: check the unit for reliable function after a short circuit.
  • Pack quantity: 1 pcs.
  • Connector: 1 x 1/2"
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on IF0312 . Santa Clara Systems carries 2,078 items from Efector.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.

Alternates

  • IFK2007-AROA/SL/LS-100AK RT
