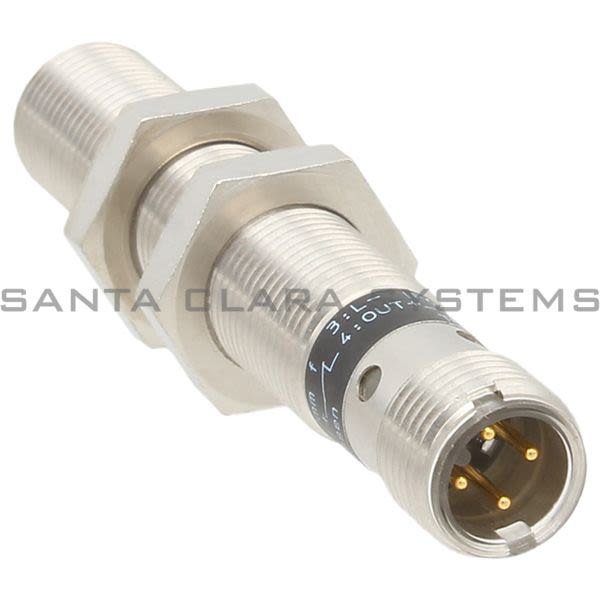

• Efector IF5653 Inductive Sensor | IFA4002-CPKG/US-104-DPA Product Image

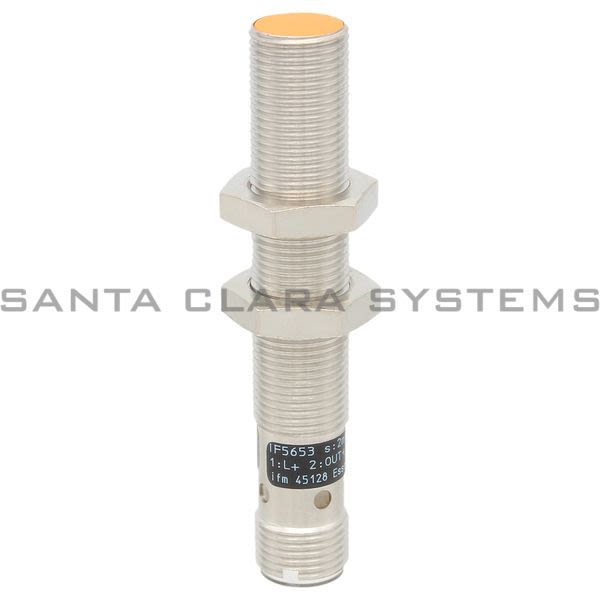

  • Efector IF5653 Inductive Sensor | IFA4002-CPKG/US-104-DPA Product Image

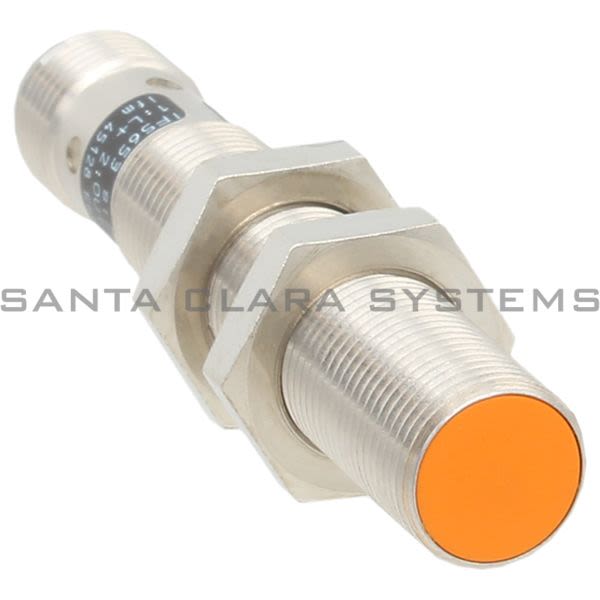

  • Efector IF5653 Inductive Sensor | IFA4002-CPKG/US-104-DPA Product Image

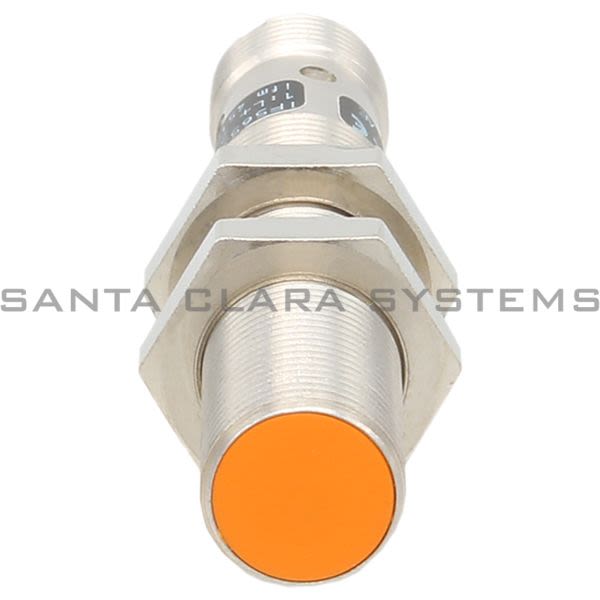

  • Efector IF5653 Inductive Sensor | IFA4002-CPKG/US-104-DPA Product Image
  • Efector IF5653 Barcode

IF5653

Product Summary:

  • Electrical Design: Pnp
  • Output Function: Complementary
  • Mounting: Flush Mountable
  • Material: Brass White Bronze Coated; Sensing Face: Pc
  • Operating Voltage [V]: 10...36 Dc
Get a Quote

Current response time:

5 Minutes 48 Seconds
  • Description: Inductive Sensor | IFA4002-CPKG/US-104-DPA
  • Electrical Design: Pnp
  • Output Function: Complementary
  • Mounting: Flush Mountable
  • Material: Brass White Bronze Coated; Sensing Face: Pc
  • Operating Voltage [V]: 10...36 Dc
  • Current Consumption [Ma]: 15; (24 V)
  • Protection Class: Ii
  • Reverse Polarity Protection: Yes
  • Max. Voltage Drop Switching Output Dc [V]: 3.5
  • Permanent Current Rating Of Switching Output Dc [Ma]: 250; (400 (...50 C))
  • Short-Time Current Rating Of Switching Output [Ma]: 400
  • Switching Frequency Dc [Hz]: 1200
  • Short-Circuit Protection: Yes
  • Type Of Short-Circuit Protection: Yes (Non-Latching)
  • Overload Protection: Yes
  • Sensing Range [Mm]: 2
  • Real Sensing Range Sr [Mm]: 2 10 %
  • Operating Distance [Mm]: 0...1.6
  • Correction Factor: Steel: 1 / Stainless Steel: 0.7 / Brass: 0.5 / Aluminum: 0.4 / Copper: 0.3
  • Hysteresis [% Of Sr]: 1...15
  • Switch-Point Drift [% Of Sr]: -10...10
  • Ambient Temperature [C]: -25...80
  • Protection: Ip 65
  • Emc: En 60947-5-2 En 55011 Class B
  • Housing: Threaded Type
  • Dimensions [Mm]: M12 X 1 / L = 70
  • Thread Designation: M12 X 1
  • Display: Switching Status 4 X 90 Led, Yellow
  • Accessories (Supplied): Lock Nuts: 2
  • Connection: Connector: 1 X M12
  • Alternate Manufacturer Name: IFM
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on IF5653 . Santa Clara Systems carries 2,078 items from Efector.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
