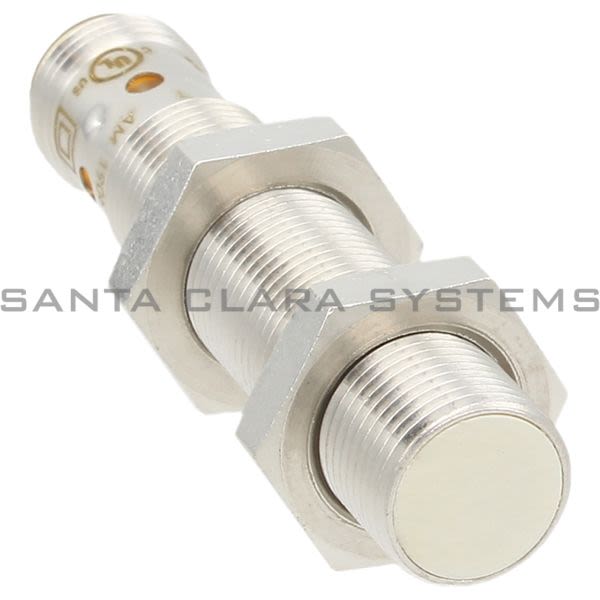

• Efector IF5775 Inductive Sensor | IFK3004BBPKG/M/US-104-DPS Product Image

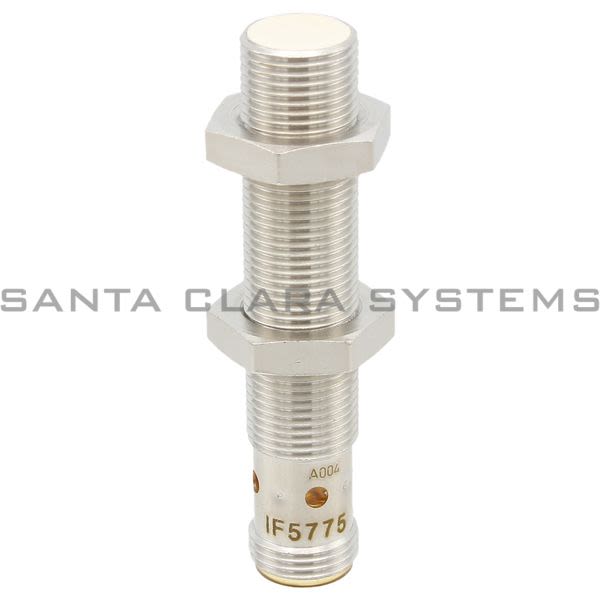

  • Efector IF5775 Inductive Sensor | IFK3004BBPKG/M/US-104-DPS Product Image

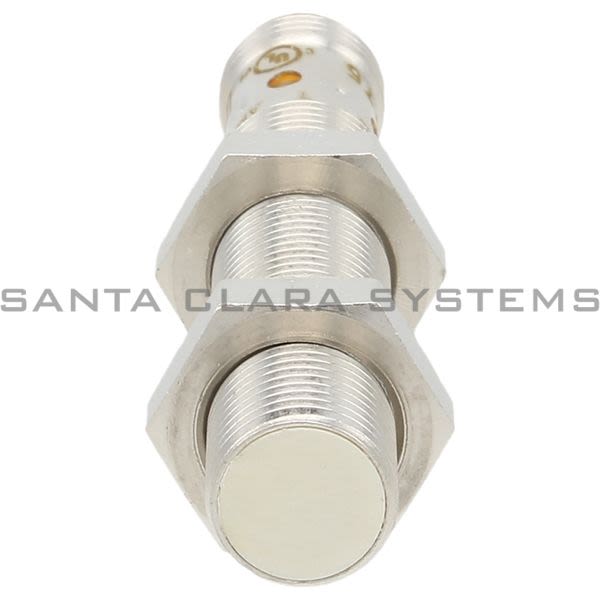

  • Efector IF5775 Inductive Sensor | IFK3004BBPKG/M/US-104-DPS Product Image

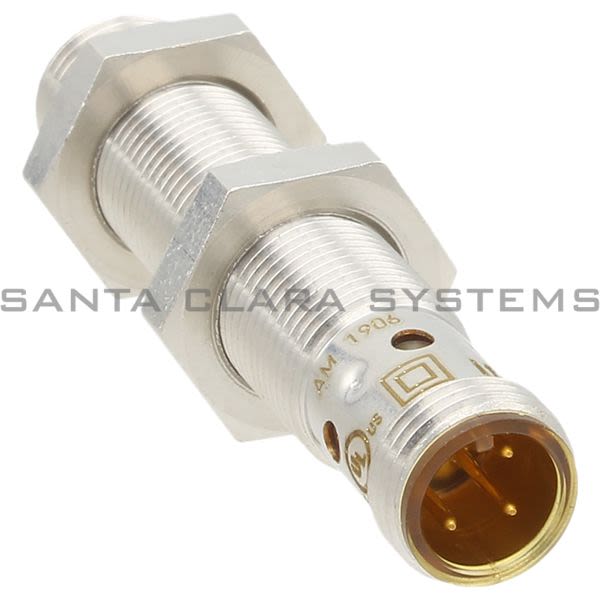

  • Efector IF5775 Inductive Sensor | IFK3004BBPKG/M/US-104-DPS Product Image
  • Efector IF5775 Barcode

IF5775

Product Summary:

  • Electrical Design: DC PNP
  • Output Function: Normally Open
  • Operating Voltage: 10 to 36 VDC
  • Sensing Range: 4mm
  • Mounting: Flush mountable
Get a Quote

Current response time:

12 Minutes 49 Seconds
  • Description: Inductive Sensor | IFK3004BBPKG/M/US-104-DPS
  • Electrical Design: DC PNP
  • Output Function: Normally Open
  • Operating Voltage: 10 to 36 VDC
  • Sensing Range: 4mm
  • Mounting: Flush mountable
  • Material: Brass white bronze coated; sensing face: LCP natural; LED window: PEI; lock nuts: brass white bronze coated
  • Alternate Manufacturer Name: IFM
  • Housing: Threaded type
  • Dimensions [mm]: M12 x 1 / L = 60
  • System: gold-plated contacts; Increased sensing range
  • Current consumption [mA]: < 10
  • Protection class: II
  • Reverse polarity protection: yes
  • Max. voltage drop switching output DC [V]: 2.5
  • Permanent current rating of switching output DC [mA]: 200
  • Switching frequency DC [Hz] : 700
  • Short-circuit protection: yes
  • Overload protection: yes
  • Real sensing range Sr [mm]: 4 10 %
  • Operating distance [mm]: 0...3.24
  • Increased sensing range: yes
  • Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3
  • Hysteresis [% of Sr]: 3...15
  • Switch-point drift [% of Sr]: -10...10
  • Ambient temperature [C]: -25...70
  • Protection: IP 68; ("Coolant")
  • EMC : EN 60947-5-2 EN 55011 class B
  • MTTF [years]: 1727
  • UL approval: Ta 0...40 C Enclosure type Type 1 voltage supply Hazardous voltage UL approval number A004 File number UL E174191
  • Weight [g]: 27.7
  • Thread designation: M12 x 1
  • Display: Switching status 4 x LED, yellow
  • Accessories (supplied): lock nuts: 2
  • Pack quantity: 1 pcs.
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on IF5775 . Santa Clara Systems carries 2,078 items from Efector.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
