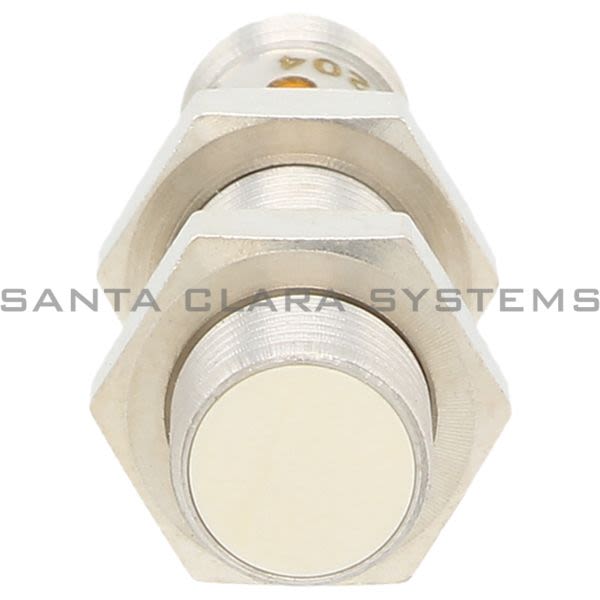

• Efector IFC204 Inductive Sensor | IFB3004BBPKG/US-104 Product Image

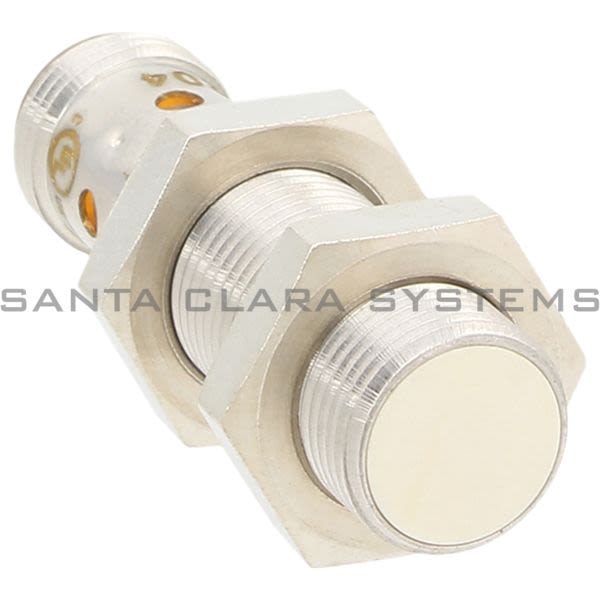

  • Efector IFC204 Inductive Sensor | IFB3004BBPKG/US-104 Product Image

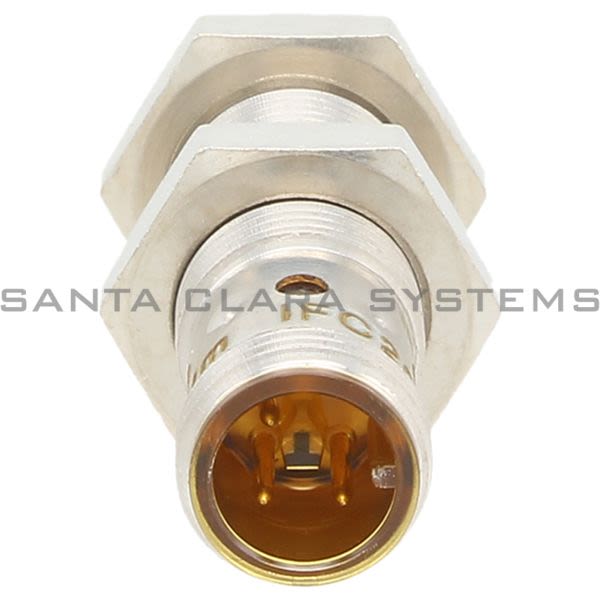

  • Efector IFC204 Inductive Sensor | IFB3004BBPKG/US-104 Product Image

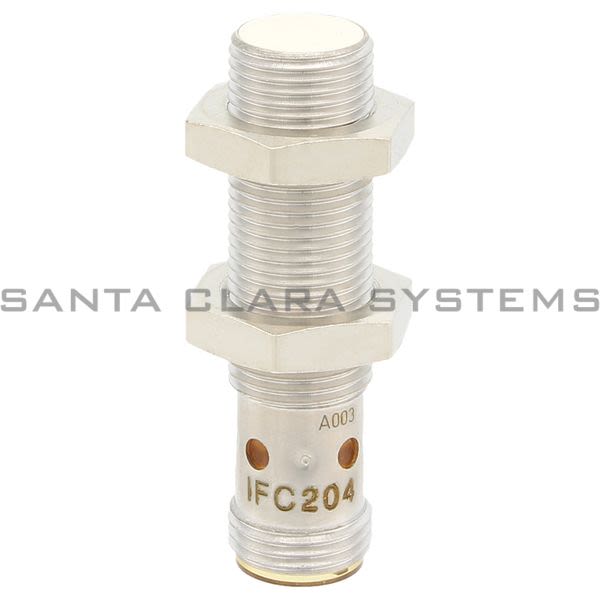

  • Efector IFC204 Inductive Sensor | IFB3004BBPKG/US-104 Product Image
  • Efector IFC204 Barcode

IFC204

Product Summary:

  • Electrical Design: DC PNP
  • Output Function: Normally Open
  • Operating Voltage: 10 to 30 VDC
  • Sensing Range: 4mm
  • Ambient Temperature [C]: -25 to 70
Get a Quote

Current response time:

By 5AM PT on Monday
  • Description: Inductive Sensor | IFB3004BBPKG/US-104
  • Electrical Design: DC PNP
  • Output Function: Normally Open
  • Operating Voltage: 10 to 30 VDC
  • Sensing Range: 4mm
  • Material: brass white bronze coated; sensing face: LCP white; LED window: PEI; lock nuts: brass white bronze coated
  • Ambient Temperature [C]: -25 to 70
  • Alternate Manufacturer Name: IFM
  • Housing: Threaded type
  • Dimensions [mm]: M12 x 1 / L = 45
  • System: gold-plated contacts; Increased sensing range
  • Application: Oils and coolants
  • Current consumption [mA]: < 10
  • Protection class: II
  • Reverse polarity protection: yes
  • Max. voltage drop switching output DC [V]: 2.5
  • Permanent current rating of switching output DC [mA]: 100
  • Switching frequency DC [Hz]: 700
  • Short-circuit protection: yes
  • Overload protection: yes
  • Real sensing range Sr [mm]: 4 10 %
  • Operating distance [mm]: 0...3.24
  • Increased sensing range: yes
  • Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3
  • Hysteresis [% of Sr]: 3...15
  • Switch-point drift [% of Sr]: -10...10
  • Protection: IP 68; ("Coolant")
  • EMC: EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 10 V EN 55011 class B
  • MTTF [years]: 1528
  • UL approval: Ta 0...40 C Enclosure type Type 1 voltage supply Hazardous voltage UL approval number A003 File number UL E174191
  • Weight [g]: 24.5
  • Thread designation: M12 x 1
  • Display: Switching status 4 x LED, yellow
  • Accessories (supplied): lock nuts: 2
  • Pack quantity: 1 pcs.
  • Connection: Connector: 1 x M12; Contacts: gold-plated
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on IFC204 . Santa Clara Systems carries 2,078 items from Efector.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
