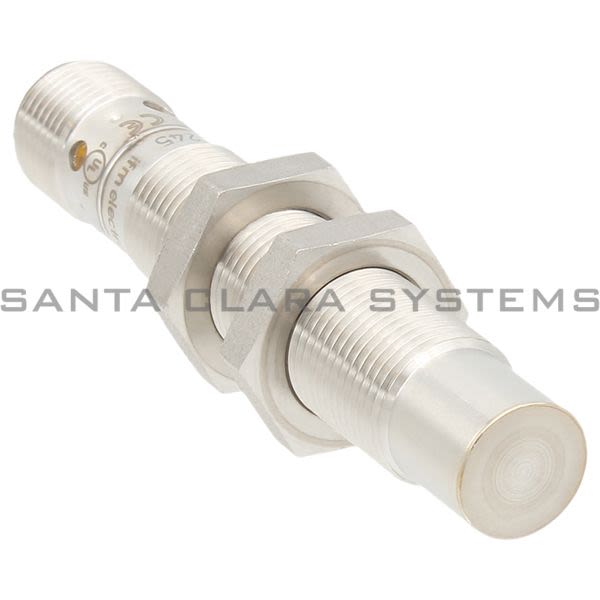

• Efector IFT245 Inductive Sensor | IFK3006-BPKG/AM/P/US-104-DPS Product Image

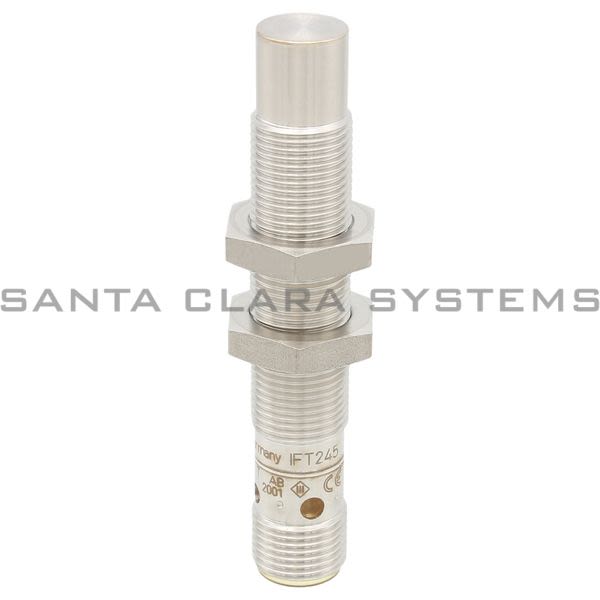

  • Efector IFT245 Inductive Sensor | IFK3006-BPKG/AM/P/US-104-DPS Product Image

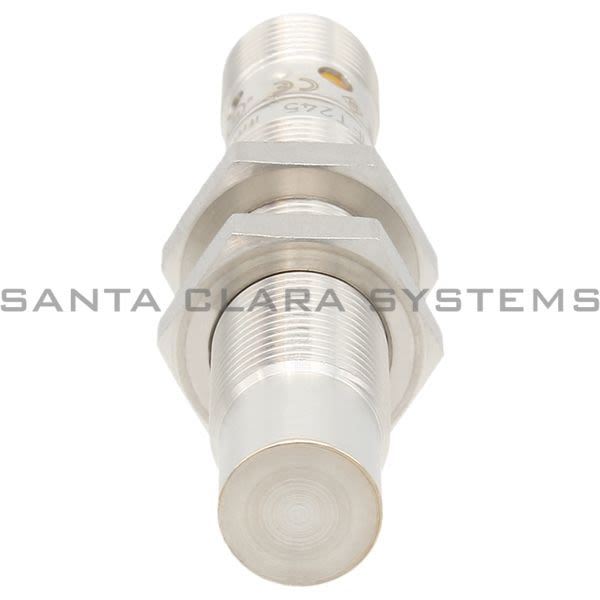

  • Efector IFT245 Inductive Sensor | IFK3006-BPKG/AM/P/US-104-DPS Product Image

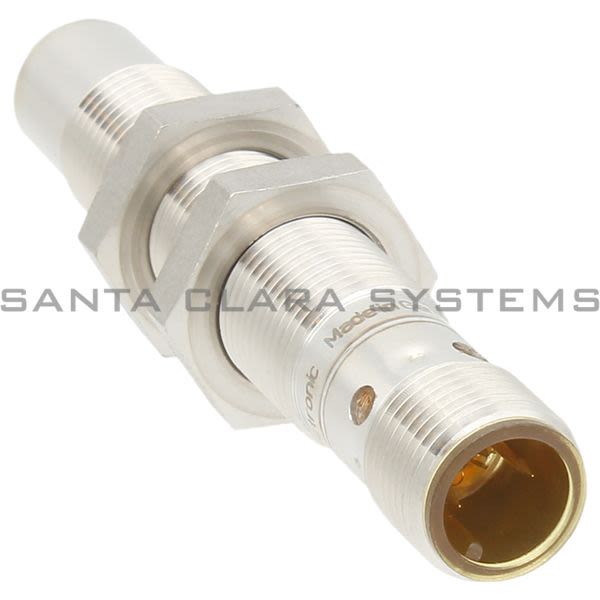

  • Efector IFT245 Inductive Sensor | IFK3006-BPKG/AM/P/US-104-DPS Product Image
  • Efector IFT245 Barcode

IFT245

Product Summary:

  • Electrical design: PNP
  • Output function: normally open
  • Sensing range [mm]: 6
  • Housing: Threaded type
  • Dimensions [mm]: M12 x 1 / L = 70
Get a Quote

Current response time:

13 Minutes 31 Seconds
  • Description: Inductive Sensor | IFK3006-BPKG/AM/P/US-104-DPS
  • Electrical design: PNP
  • Output function: normally open
  • Material: housing: stainless steel (1.4404 / 316L); sensing face: stainless steel (1.4404 / 316L); lock nuts: stainless steel (1.4404 / 316L); connector housing: PEI
  • Sensing range [mm]: 6
  • Housing: Threaded type
  • Dimensions [mm]: M12 x 1 / L = 70
  • System: gold-plated contacts; Increased sensing range; Full-metal housing
  • Application: Washdown applications
  • Pressure rating [bar]: 100
  • Operating voltage [V]: 10...36 DC
  • Current consumption [mA]: < 25
  • Protection class: III
  • Max. voltage drop switching output DC [V]: 2.5
  • Permanent current rating of switching output DC [mA]: 100
  • Switching frequency DC [Hz]: 500
  • Short-circuit protection: yes
  • Type of short-circuit protection: yes (non-latching)
  • Overload protection: yes
  • Real sensing range Sr [mm]: 6 10 %
  • Operating distance [mm]: 0...4.9
  • Increased sensing range: yes
  • Correction factor: steel: 1 / stainless steel: 1 / brass: 0.9 / aluminum: 0.75 / copper: 0.6
  • Hysteresis [% of Sr]: 1...20
  • Switch-point drift [% of Sr]: -10...10
  • Ambient temperature [C]: 0...100
  • Protection: IP 65; IP 67; IP 68; IP 69K
  • EMC: EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 10 V EN 55011 emission class B
  • Impact resistance: EN 60068-2-27 Ehc 1 J
  • MTTF [years]: 810
  • UL approval: Ta 0...40 C Enclosure type Type 1 voltage supply Limited Voltage/Current File number UL E174191
  • Weight [g]: 31.1
  • Thread designation: M12 x 1
  • Full-metal housing: yes
  • Display: Switching status 4 x 90 LED, yellow
  • Accessories (supplied): lock nuts: 2
  • Pack quantity: 1 pcs.
  • Connection: Connector: 1 x M12; Contacts: gold-plated
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on IFT245 . Santa Clara Systems carries 2,078 items from Efector.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
