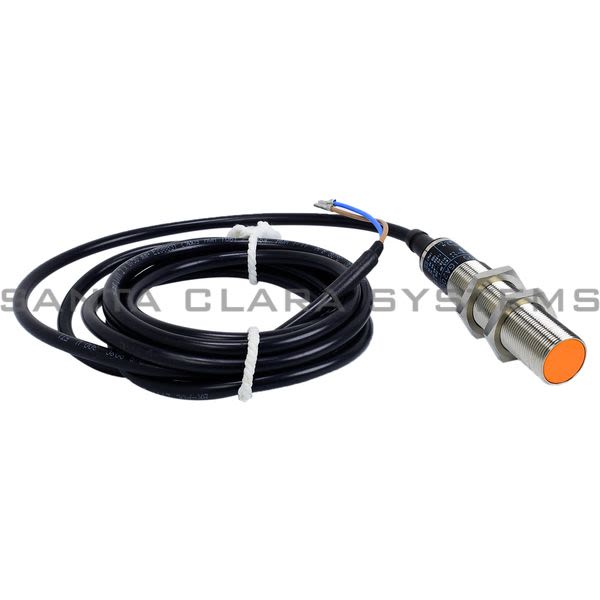

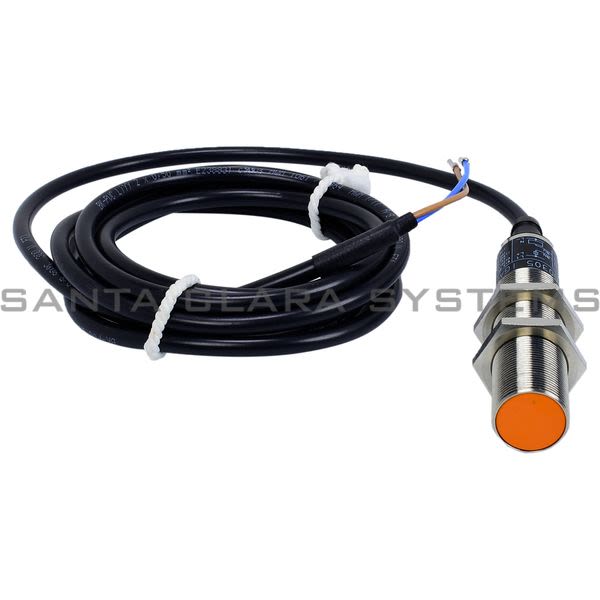

• Efector IG0305 Inductive Sensor | IGA2005-ABOA/RT Product Image
  • Efector IG0305 Inductive Sensor | IGA2005-ABOA/RT Product Image
  • Efector IG0305 Inductive Sensor | IGA2005-ABOA/RT Product Image
  • Efector IG0305 Inductive Sensor | IGA2005-ABOA/RT Product Image
  • Efector IG0305 Barcode

IG0305

Product Summary:

  • Electrical Design: AC/DC
  • Output Function: Normally Open
  • Sensing Range: 5mm
  • Mounting: flush mountable
  • Material: brass white bronze coated; PC
Get a Quote

Current response time:

By 5AM PT on Monday
  • Description: Inductive Sensor | IGA2005-ABOA/RT
  • Electrical Design: AC/DC
  • Output Function: Normally Open
  • Sensing Range: 5mm
  • Mounting: flush mountable
  • Material: brass white bronze coated; PC
  • Operating Voltage [V]: 20...250 AC/DC
  • Ambient Temperature [C]: -25...80
  • Alternate Manufacturer Name: IFM
  • Housing: Threaded type
  • Dimensions [mm]: M18 x 1 / L = 80
  • Protection class: II
  • Reverse polarity protection: no
  • Max. voltage drop switching output DC [V]: 6
  • Max. voltage drop switching output AC [V]: 6.5
  • Minimum load current [mA]: 5
  • Max. leakage current [mA]: 2.5 (250 V AC) / 1.3 (110 V AC) / 0.8 (24 V DC)
  • Permanent current rating of switching output AC [mA]: 250; (350 (...50 C))
  • Permanent current rating of switching output DC [mA]: 100
  • Short-time current rating of switching output [mA]: 2200; (20 ms / 0,5 Hz)
  • Switching frequency AC [Hz]: 25
  • Switching frequency DC [Hz]: 50
  • Short-circuit proof: no
  • Overload protection: no
  • Real sensing range Sr [mm]: 5 10 %
  • Operating distance [mm]: 0...4.05
  • Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.3 / copper: 0.2
  • Hysteresis [% of Sr]: 1...15
  • Switch-point drift [% of Sr]: -10...10
  • Protection: IP 67
  • EMC: EN 60947-5-2 EN 55011 class B
  • MTTF [years]: 609
  • UL approval: Ta 0...40 C Enclosure type Type 1 voltage supply Hazardous voltage File number UL E174191
  • Weight [g]: 154.8
  • Thread designation: M18 x 1
  • Display: Switching status 1 x LED, red
  • Required protection: miniature fuse to IEC60127-2 sheet 1; 2 A; fast acting
  • Accessories (supplied): lock nuts: 2
  • Remarks: Recommendation: check the unit for reliable function after a short circuit.
  • Pack quantity: 1 pcs.

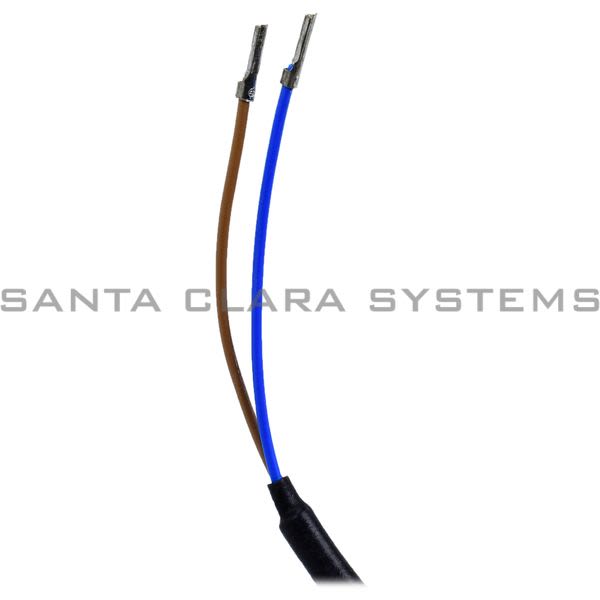

  • Connection: Cable: 2 m, PVC; 2 x 0.5 mm
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on IG0305 . Santa Clara Systems carries 2,078 items from Efector.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
