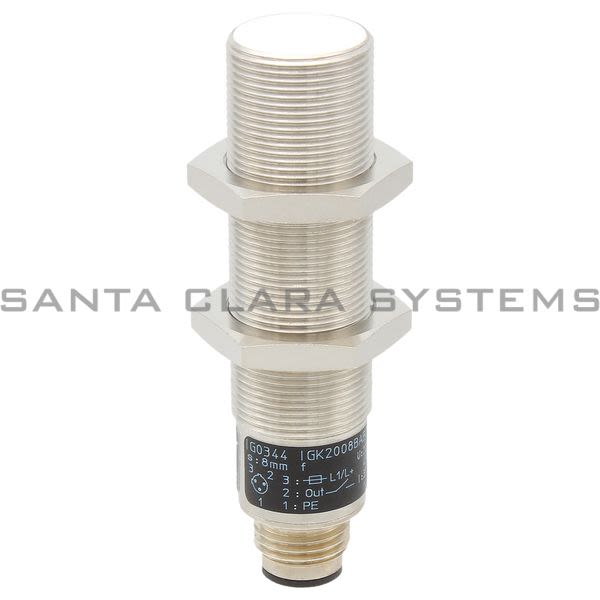

• Efector IG0344 Inductive Sensor | IGK2008BABOA/SL/LS100-AK RT Product Image

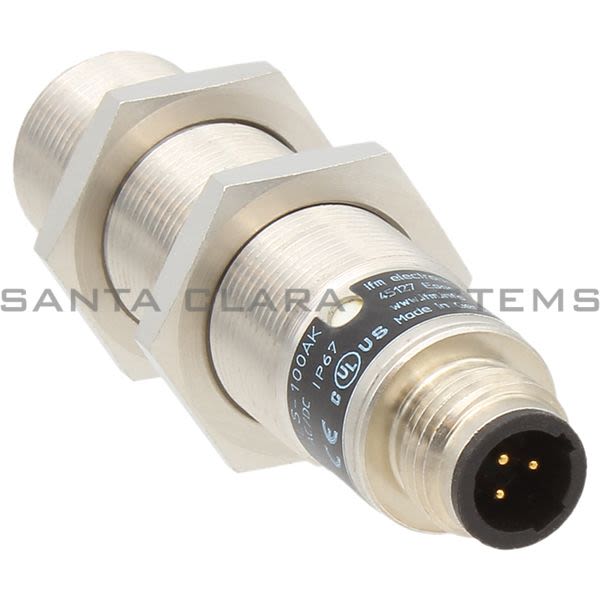

  • Efector IG0344 Inductive Sensor | IGK2008BABOA/SL/LS100-AK RT Product Image

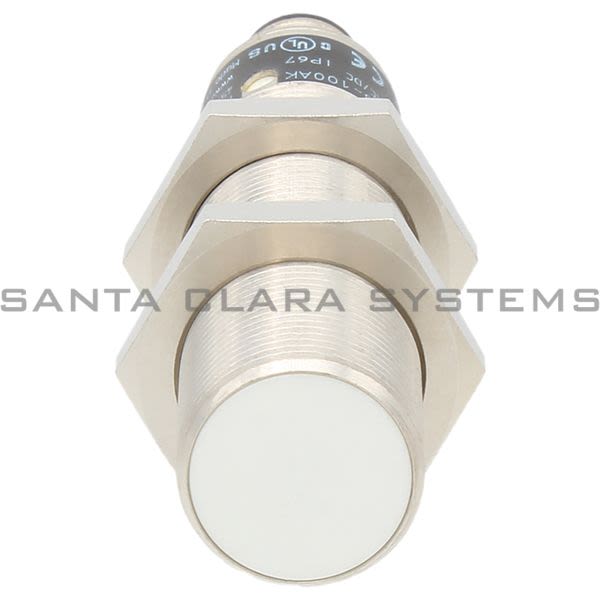

  • Efector IG0344 Inductive Sensor | IGK2008BABOA/SL/LS100-AK RT Product Image
  • Efector IG0344 Inductive Sensor | IGK2008BABOA/SL/LS100-AK RT Product Image
  • Efector IG0344 Barcode

IG0344

Product Summary:

  • Electrical Design: AC/DC
  • Output Function: Normally Open
  • Operating Voltage: 20V to 250V AC/DC
  • Sensing Range: 8mm
  • Mounting: flush mountable
Get a Quote

Current response time:

By 5AM PT on Monday
  • Description: Inductive Sensor | IGK2008BABOA/SL/LS100-AK RT
  • Electrical Design: AC/DC
  • Output Function: Normally Open
  • Operating Voltage: 20V to 250V AC/DC
  • Sensing Range: 8mm
  • Mounting: flush mountable
  • Material: brass white bronze coated; PA; PBT
  • Ambient temperature [C]: -25 to 70
  • Alternate Manufacturer Name: IFM
  • Housing: Threaded type
  • Dimensions [mm]: M18 x 1
  • System: Increased sensing range
  • Operating voltage [V]: 20...250 AC/DC
  • Protection class: I
  • Reverse polarity protection: no
  • Max. voltage drop switching output DC [V]: 6
  • Max. voltage drop switching output AC [V]: 6.5
  • Minimum load current [mA]: 5
  • Max. leakage current [mA]: 1 (250 V AC) / 0.8 (140 V AC) / 0.8 (24 V DC)
  • Permanent current rating of switching output AC [mA]: 250; (350 (...50 C))
  • Permanent current rating of switching output DC [mA]: 100
  • Short-time current rating of switching output [mA]: 2200; (20 ms / 0,5 Hz)
  • Switching frequency AC [Hz]: 25
  • Switching frequency DC [Hz]: 60
  • Short-circuit proof: no
  • Overload protection: no
  • Operating distance [mm]: 0...6.5
  • Increased sensing range: yes
  • Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.45 / aluminum: 0.4 / copper: 0.33
  • Hysteresis [% of Sr]: 3...15
  • Protection: IP 67
  • EMC: EN 60947-5-2
  • MTTF [years]: 612
  • UL approval: Ta 0...40 C Enclosure type Type 1 voltage supply Hazardous voltage File number UL E174191
  • Weight [g]: 65.2
  • Thread designation: M18 x 1
  • Display: Switching status 1 x LED, red
  • Required protection: miniature fuse to IEC60127-2 sheet 1; 2 A; fast acting
  • Accessories (supplied): lock nuts: 2
  • Remarks: Recommendation: check the unit for reliable function after a short circuit.
  • Pack quantity: 1 pcs.
  • Connector: 1 x 1/2"
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on IG0344 . Santa Clara Systems carries 2,078 items from Efector.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
