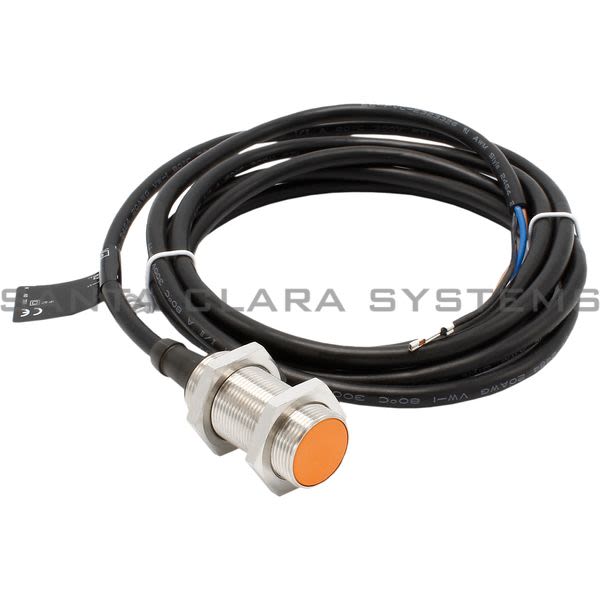

• Efector IG5221 Inductive Sensor | IGB3005-BPKG Product Image

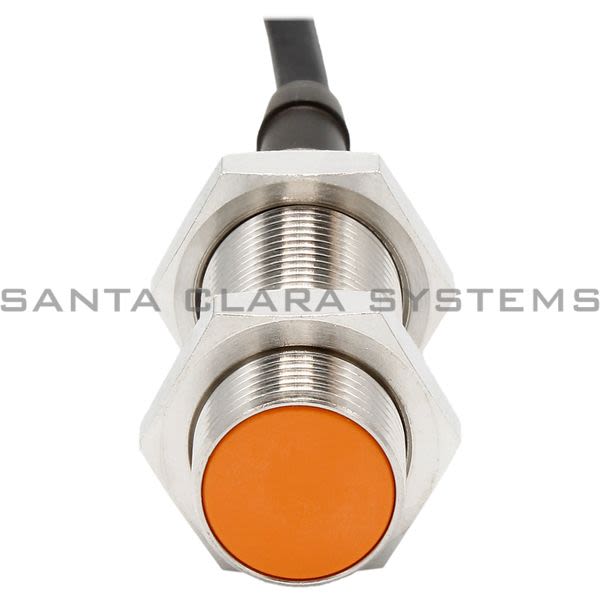

  • Efector IG5221 Inductive Sensor | IGB3005-BPKG Product Image

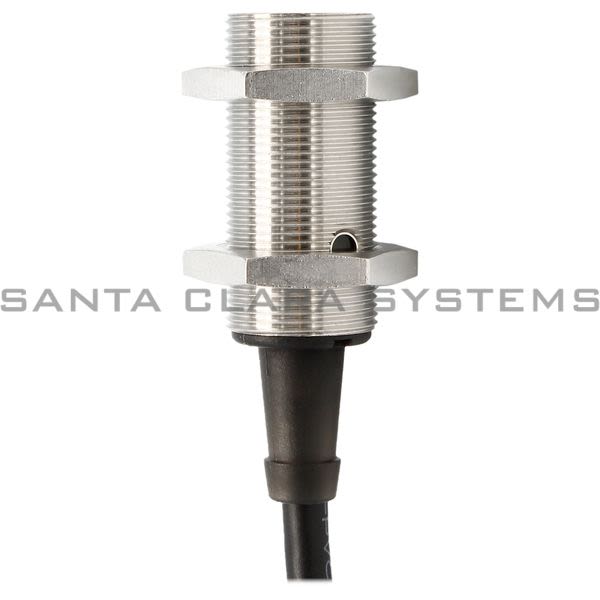

  • Efector IG5221 Inductive Sensor | IGB3005-BPKG Product Image
  • Efector IG5221 Inductive Sensor | IGB3005-BPKG Product Image
  • Efector IG5221 Barcode

IG5221

Product Summary:

  • Electrical Design: Pnp
  • Output Function: Normally Open
  • Mounting: Flush Mountable
  • Material: Brass White Bronze Coated; Sensing Face: Co-Pc
  • Operating Voltage [V]: 18...36 Dc
Get a Quote

Current response time:

By 5AM PT on Monday
  • Description: Inductive Sensor | IGB3005-BPKG
  • Electrical Design: Pnp
  • Output Function: Normally Open
  • Mounting: Flush Mountable
  • Material: Brass White Bronze Coated; Sensing Face: Co-Pc
  • Operating Voltage [V]: 18...36 Dc
  • Current Consumption [Ma]: 15; (24 V)
  • Protection Class: Ii
  • Reverse Polarity Protection: Yes
  • Max. Voltage Drop Switching Output Dc [V]: 2.5
  • Permanent Current Rating Of Switching Output Dc [Ma]: 125; (150 (...50 C))
  • Switching Frequency Dc [Hz]: 500
  • Short-Circuit Protection: Yes
  • Type Of Short-Circuit Protection: Yes (Non-Latching)
  • Overload Protection: Yes
  • Sensing Range [Mm]: 5
  • Real Sensing Range Sr [Mm]: 5 10 %
  • Operating Distance [Mm]: 0...4.05
  • Correction Factor: Steel: 1 / Stainless Steel: 0.7 / Brass: 0.4 / Aluminum: 0.3 / Copper: 0.2
  • Hysteresis [% Of Sr]: 1...15
  • Switch-Point Drift [% Of Sr]: -10...10
  • Ambient Temperature [C]: -25...80
  • Protection: Ip 67
  • Emc: En 60947-5-2 En 55011 Class B
  • Housing: Threaded Type
  • Dimensions [Mm]: M18 X 1 / L = 38
  • Thread Designation: M18 X 1
  • Display: Switching Status 1 X Led, Yellow
  • Accessories (Supplied): Lock Nuts: 2
  • Connection: Cable: 2 M, Pvc; 3 X 0.5 Mm
  • Alternate Manufacturer Name: IFM
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on IG5221 . Santa Clara Systems carries 2,078 items from Efector.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
