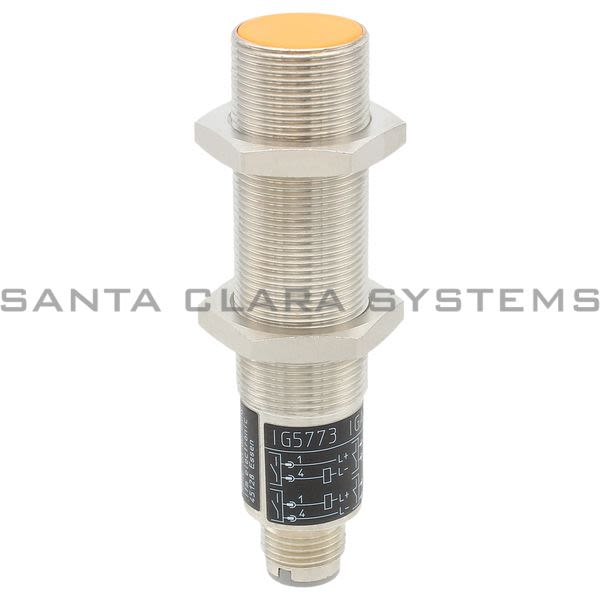

• Efector IG5773 Inductive Sensor | IGA2005-FRKG/US-100-IRF RT Product Image

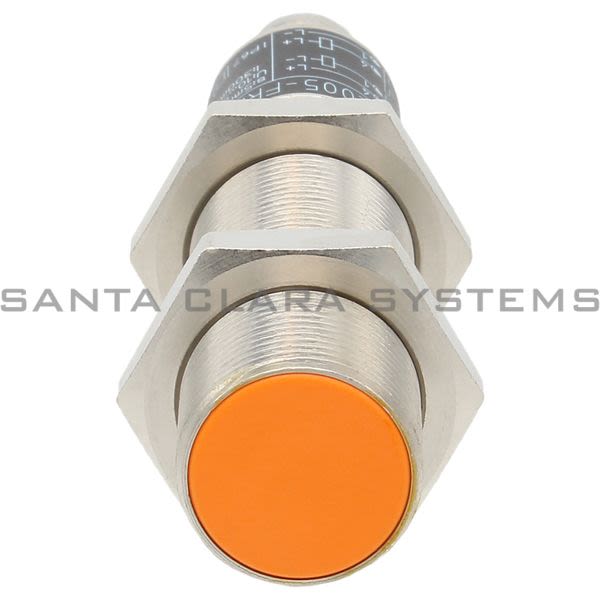

  • Efector IG5773 Inductive Sensor | IGA2005-FRKG/US-100-IRF RT Product Image

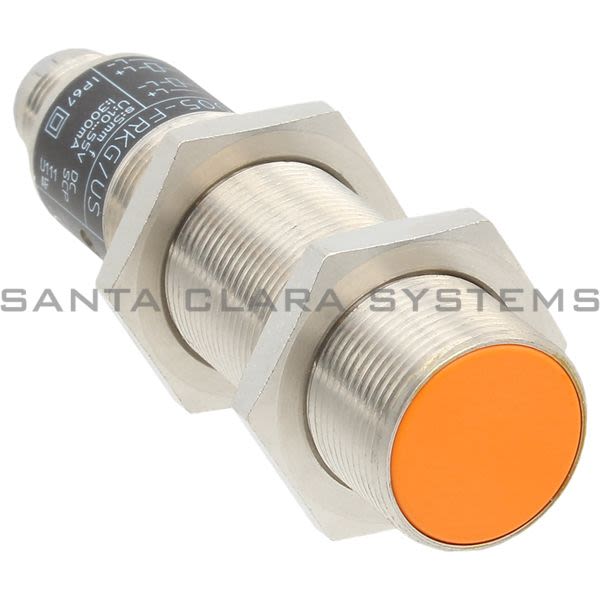

  • Efector IG5773 Inductive Sensor | IGA2005-FRKG/US-100-IRF RT Product Image
  • Efector IG5773 Inductive Sensor | IGA2005-FRKG/US-100-IRF RT Product Image
  • Efector IG5773 Barcode

IG5773

Product Summary:

  • Electrical Design: Pnp/Npn
  • Output Function: Normally Open / Closed; (Selectable)
  • Mounting: Flush Mountable
  • Material: Brass White Bronze Coated; Pc
  • Operating Voltage [V]: 10...55 Dc
Get a Quote

Current response time:

8 Minutes 32 Seconds
  • Description: Inductive Sensor | IGA2005-FRKG/US-100-IRF RT
  • Electrical Design: Pnp/Npn
  • Output Function: Normally Open / Closed; (Selectable)
  • Mounting: Flush Mountable
  • Material: Brass White Bronze Coated; Pc
  • Operating Voltage [V]: 10...55 Dc
  • Minimum load current [mA]: 4
  • Max. leakage current [mA]: 0.8
  • Sensing Range [mm]: 5
  • Ambient Temperature [C]: -25...80
  • Protection Class: Ii
  • Reverse Polarity Protection: Yes
  • Max. Voltage Drop Switching Output Dc [V]: 4.6
  • Permanent Current Rating Of Switching Output Dc [Ma]: 300
  • Switching Frequency Dc [Hz]: 700
  • Short-Circuit Protection: Yes
  • Type Of Short-Circuit Protection: Yes (Non-Latching)
  • Overload Protection: Yes
  • Real Sensing Range Sr [Mm]: 5 10 %
  • Operating Distance [Mm]: 0...4.05
  • Correction Factor: Steel: 1 / Stainless Steel: 0.7 / Brass: 0.4 / Aluminum: 0.4 / Copper: 0.3
  • Hysteresis [% Of Sr]: 3...15
  • Switch-Point Drift [% Of Sr]: -10...10
  • Protection: Ip 67
  • Emc: En 60947-5-2 En 55011 Class B
  • Ul Approval: Ta 0...40 C Enclosure Type Type 1 Voltage Supply Hazardous Voltage File Number Ul E174191
  • Housing: Threaded Type
  • Dimensions [Mm]: M18 X 1 / L = 76
  • Thread Designation: M18 X 1
  • Display: Switching Status 1 X Led, Red
  • Accessories (Supplied): Lock Nuts: 2
  • Normally Open: Connector: 1 X M12
  • Alternate Manufacturer Name: IFM
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on IG5773 . Santa Clara Systems carries 2,078 items from Efector.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.

Alternates

  • IGA2005-FRKG/US-100-IRF RT
