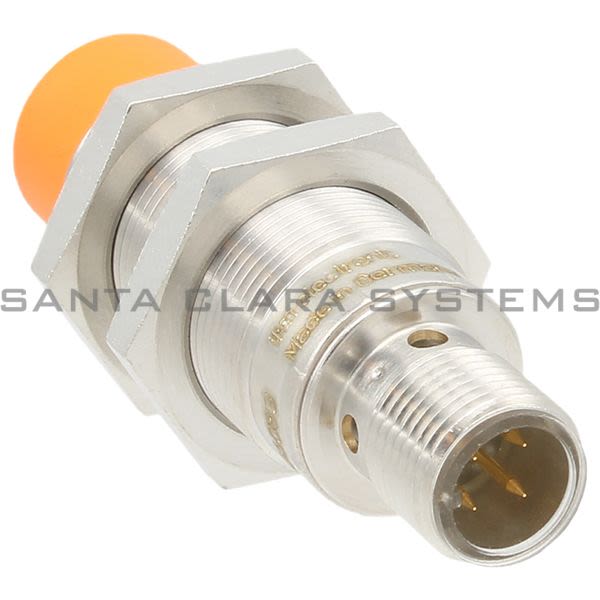

• Efector IG6083 Inductive Sensor | IGK3008A1PKG/US Product Image

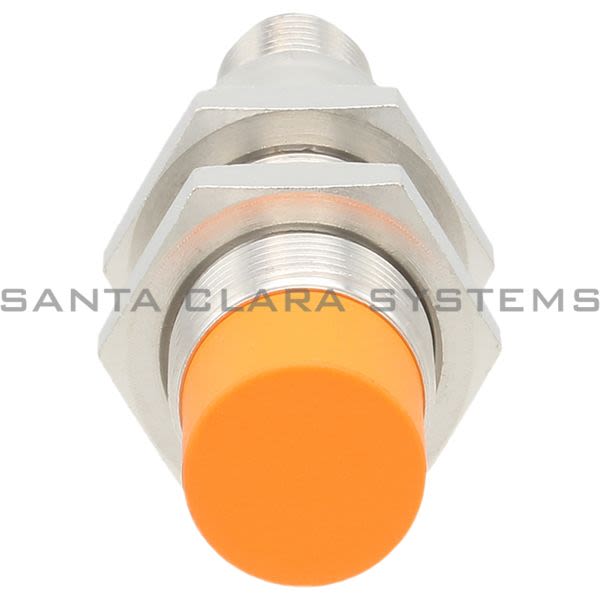

  • Efector IG6083 Inductive Sensor | IGK3008A1PKG/US Product Image

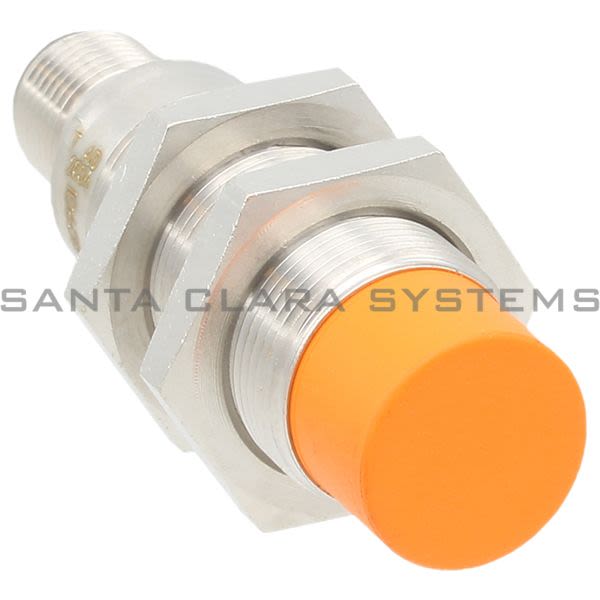

  • Efector IG6083 Inductive Sensor | IGK3008A1PKG/US Product Image

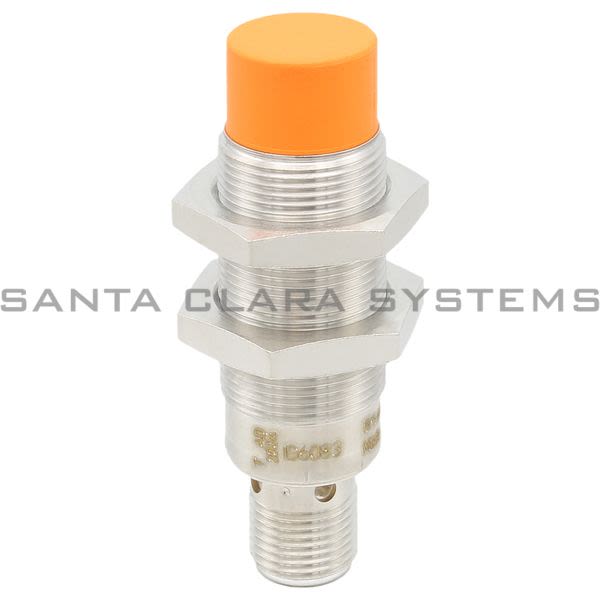

  • Efector IG6083 Inductive Sensor | IGK3008A1PKG/US Product Image
  • Efector IG6083 Barcode

IG6083

Product Summary:

  • Mounting: Non-Flush Mountable
  • Material: Housing: Brass White Bronze Coated; Sensing Face: Pbt
  • Operating Voltage [V]: 15...30 Dc
  • Current Consumption [Ma]: < 20
  • Protection Class: Ii
Get a Quote

Current response time:

6 Minutes 25 Seconds
  • Description: Inductive Sensor | IGK3008A1PKG/US
  • Mounting: Non-Flush Mountable
  • Material: Housing: Brass White Bronze Coated; Sensing Face: Pbt
  • Operating Voltage [V]: 15...30 Dc
  • Current Consumption [Ma]: < 20
  • Protection Class: Ii
  • Reverse Polarity Protection: Yes
  • Analog Current Output [Ma]: 4...20; (Linear Ring On Address; Gradient: 2,22 Ma/Mm; For Frontal Approach And For Target Made Of Mild Steel: 24 X 24 X 1 Mm)
  • Max. Load [?]: 500
  • Short-Circuit Protection: Yes
  • Overload Protection: Yes
  • Measuring Range [Mm]: 0.8...8
  • Correction Factor: Steel: 1 / Stainless Steel: 0.7 / Brass: 0.5 / Aluminum: 0.4 / Copper: 0.3
  • Linearity Error Of Analog Output [%]: 1 %; (Of Ia Max)
  • Repeatability Analog Output [%]: 1 %; (Of Ia Max)
  • Response Time [Ms]: < 10
  • Ambient Temperature [C]: -25...80
  • Protection: Ip 67
  • Housing: Threaded Type
  • Dimensions [Mm]: M18 X 1 / L = 60
  • Thread Designation: M18 X 1
  • Display: Within The Operating Range 1 X Led, Yellow Lights Outside The Operating Range 1 X Led, Yellow Flashing
  • Accessories (Supplied): Lock Nuts: 2
  • Connection: Connector: 1 X M12
  • Alternate Manufacturer Name: IFM
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on IG6083 . Santa Clara Systems carries 2,078 items from Efector.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.

Alternates

  • IGK3008A1PKG/US
