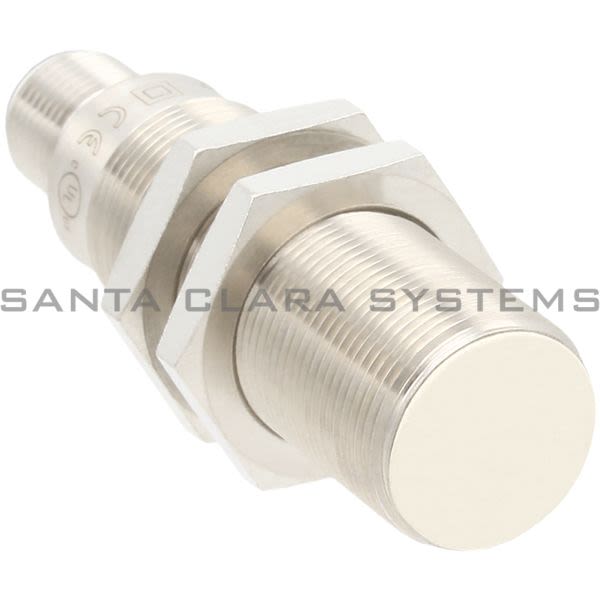

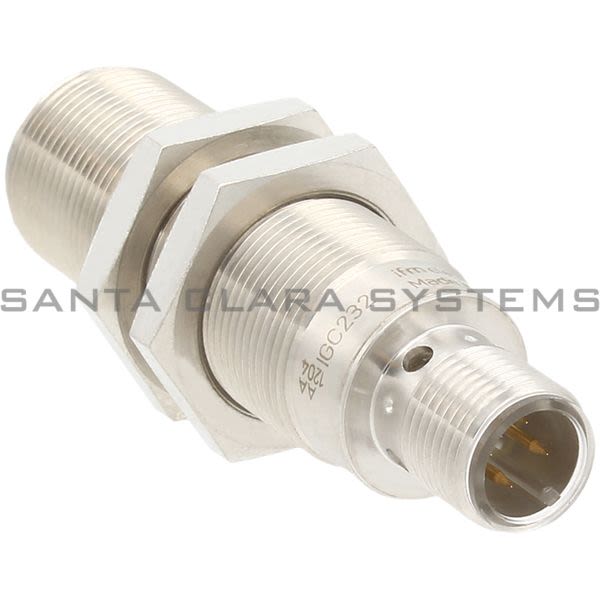

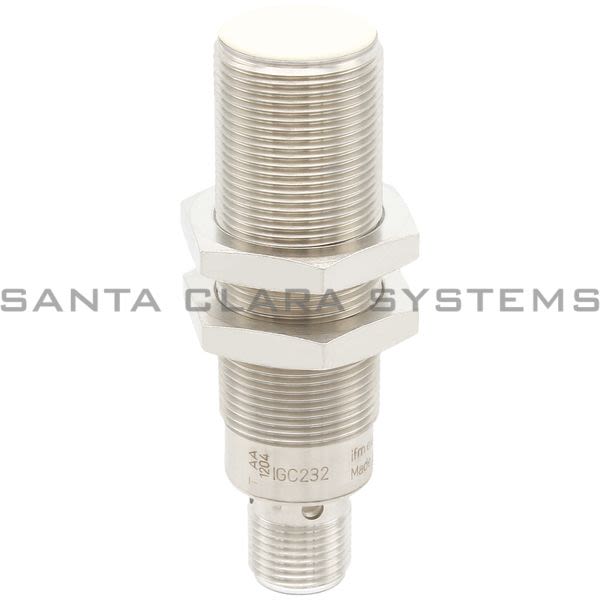

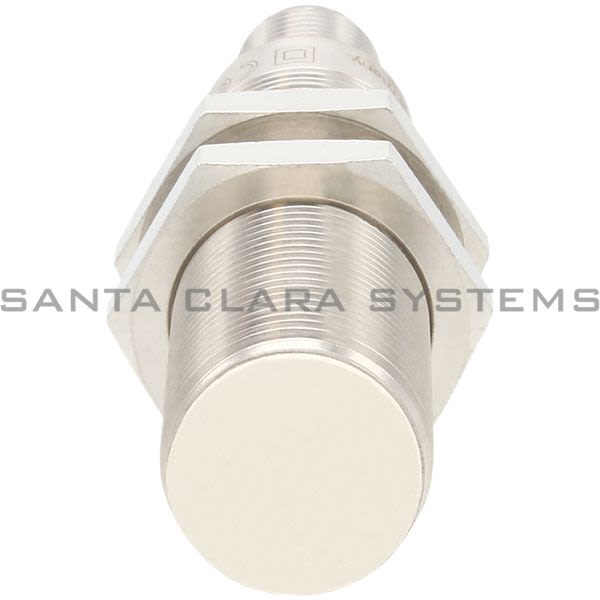

- Description: Inductive Sensor | IGK3005-BPKG/K1/V4A/US-104
- Electrical Design: Pnp
- Output Function: Normally Open
- Mounting: Flush Mountable
- Material: Housing: Stainless Steel (1.4404 / 316L); Sensing Face: Lcp White; Led Window: Pei White; Lock Nuts: Brass White Bronze Coated
- Magnetic-Field Immune: Yes
- Max. Electromagnetic Field Immunity [Mt]: 300
- Operating Voltage [V]: 10...30 Dc
- Current Consumption [Ma]: 20
- Protection Class: Ii
- Reverse Polarity Protection: Yes
- Max. Voltage Drop Switching Output Dc [V]: 2.5
- Permanent Current Rating Of Switching Output Dc [Ma]: 100
- Switching Frequency Dc [Hz]: 2000
- Short-Circuit Protection: Yes
- Overload Protection: Yes
- Sensing Range [Mm]: 5
- Real Sensing Range Sr [Mm]: 5 10 %
- Operating Distance [Mm]: 0...4.05
- Correction Factor: Steel: 1 / Stainless Steel: 1 / Brass: 1 / Aluminum: 1 / Copper: 1
- Hysteresis [% Of Sr]: 3...15
- Switch-Point Drift [% Of Sr]: -10...10
- Correction Factor = 1: Yes
- Ambient Temperature [C]: -25...70
- Protection: Ip 68; ("Coolant")
- Ul Approval: Ta -25...70 C Enclosure Type Type 1 Voltage Supply Limited Voltage/Current Ul Approval Number A005 File Number Ul E174191
- Housing: Threaded Type
- Dimensions [Mm]: M18 X 1 / L = 65
- Thread Designation: M18 X 1
- Display: Switching Status 4 X 90 Led, Yellow
- Accessories (Supplied): Lock Nuts: 2
- Connection: Connector: 1 X M12; Contacts: Gold-Plated
- Alternate Manufacturer Name: IFM
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on IGC232 . Santa Clara Systems carries 2,284 items from Efector.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
