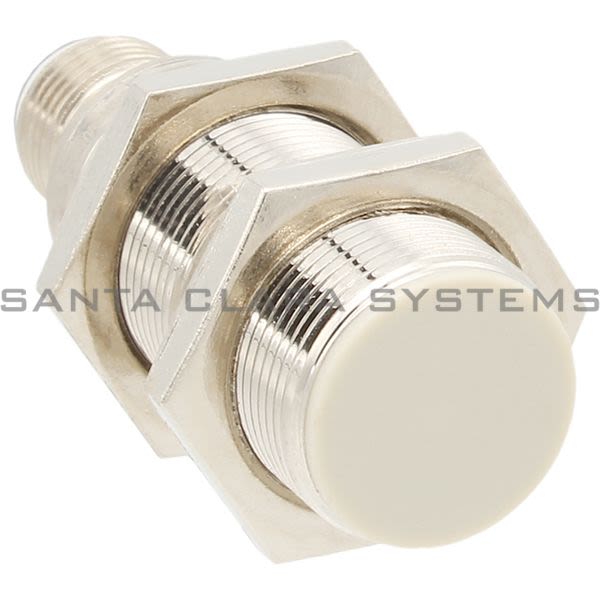

• Efector IGT203 Inductive Sensor | IGB3008BBPKG/M/V4A/US-104-DPS Product Image

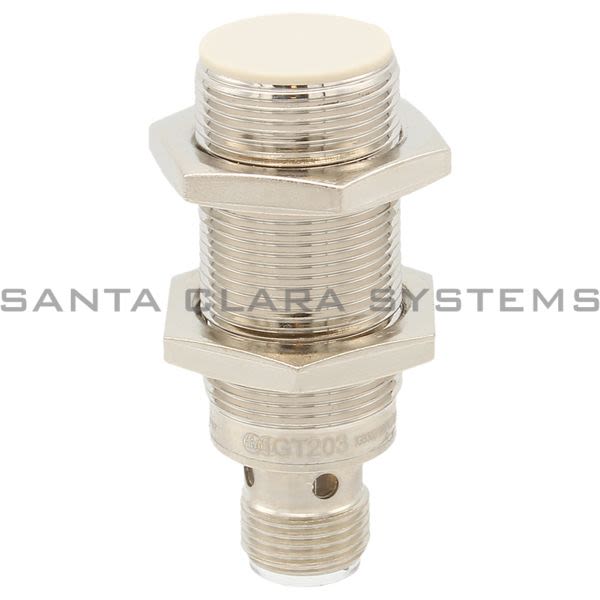

  • Efector IGT203 Inductive Sensor | IGB3008BBPKG/M/V4A/US-104-DPS Product Image

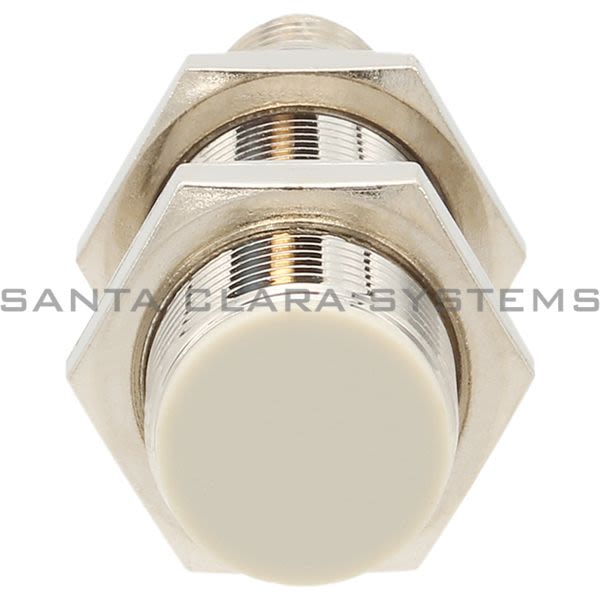

  • Efector IGT203 Inductive Sensor | IGB3008BBPKG/M/V4A/US-104-DPS Product Image

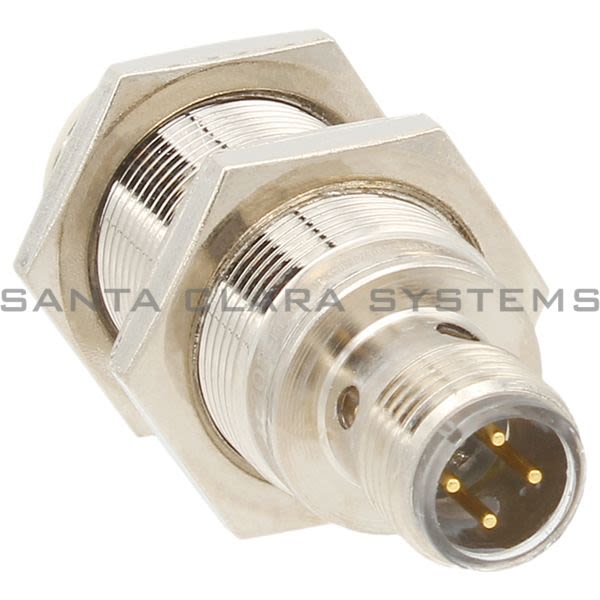

  • Efector IGT203 Inductive Sensor | IGB3008BBPKG/M/V4A/US-104-DPS Product Image
  • Efector IGT203 Barcode

IGT203

Product Summary:

  • Electrical Design: PNP
  • Output function: normally open
  • Mounting: flush mountable
  • Operating Voltage [V]: 10...36 DC
  • Current Consumption [mA]: 10; (24 V)
Get a Quote

Current response time:

18 Minutes 53 Seconds
  • Description: Inductive Sensor | IGB3008BBPKG/M/V4A/US-104-DPS
  • Electrical Design: PNP
  • Output function: normally open
  • Mounting: flush mountable
  • Material: threaded sleeve: stainless steel (1.4404 / 316L); sensing face: PEEK; lock nuts: stainless steel
  • Operating Voltage [V]: 10...36 DC
  • Current Consumption [mA]: 10; (24 V)
  • Sensing Range [mm]: 8
  • Ambient Temperature [C]: 0...100
  • Alternate Manufacturer Name: IFM
  • Housing: Threaded type
  • Dimensions [mm]: M18 x 1 / L = 46
  • System: gold-plated contacts; Increased sensing range
  • Application: Washdown applications
  • Protection class: II
  • Reverse polarity protection: yes
  • Max. voltage drop switching output DC [V]: 2.5
  • Permanent current rating of switching output DC [mA]: 100
  • Switching frequency DC [Hz]: 600
  • Short-circuit protection: yes
  • Type of short-circuit protection: yes (non-latching)
  • Overload protection: yes
  • Operating distance [mm]: 0...6.48
  • Increased sensing range: yes
  • Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.4 / copper: 0.3
  • Hysteresis [% of Sr]: 1...20
  • Protection: IP 68; IP 69K; ("COP")
  • EMC: EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 10 V EN 55011 class B
  • MTTF [years]: 1727
  • UL approval: Ta 0...40 C Enclosure type Type 1 voltage supply Limited Voltage/Current File number UL E174191
  • Weight [g]: 44.3
  • Thread designation: M18 x 1
  • Display: Switching status 4 x 90 LED, yellow
  • Accessories (supplied): lock nuts: 2
  • Pack quantity: 1 pcs.
  • Connection: Connector: 1 x M12; Contacts: gold-plated
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on IGT203 . Santa Clara Systems carries 2,078 items from Efector.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
