II0290

Efector - Inductive Sensor | II-2015-ABOA

Current response time:

By 5AM PT on Monday

Emergency?

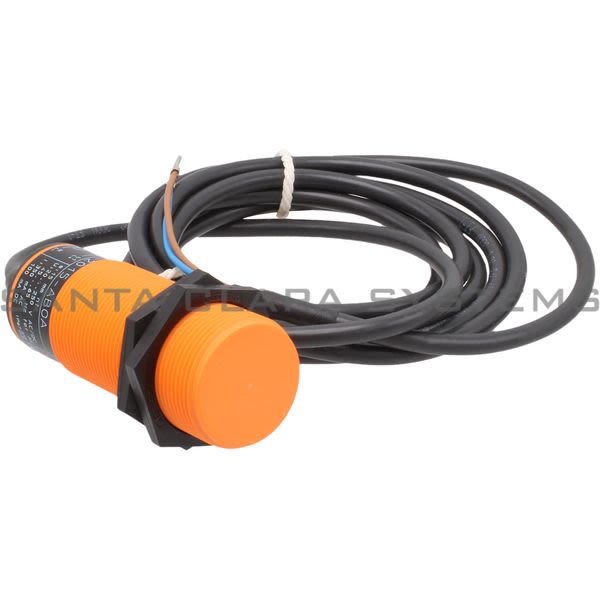

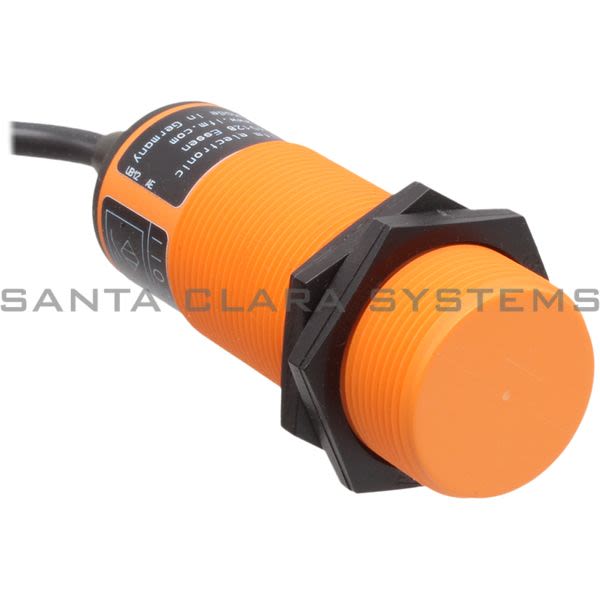

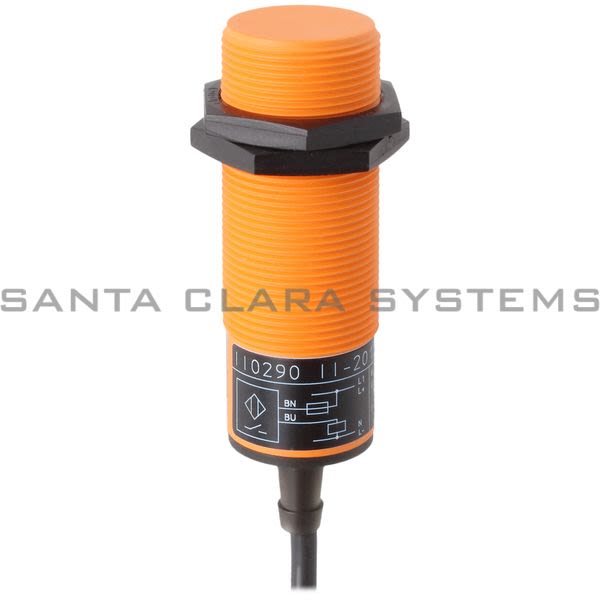

Description: Inductive Sensor | II-2015-ABOA
Output function: normally open
Mounting: non-flush mountable
Material: PBT
Sensing range [mm]: 15
Housing: Threaded type
Dimensions [mm]: M30 x 1.5 / L = 81
Operating voltage [V]: 20...250 AC/DC
Protection class: II
Reverse polarity protection: no
Max. voltage drop switching output DC [V]: 6
Max. voltage drop switching output AC [V]: 6.5
Minimum load current [mA]: 5
Max. leakage current [mA]: 2.5 (250 V AC) / 1.3 (110 V AC) / 0.8 (24 V DC)
Permanent current rating of switching output AC [mA]: 250; (350 (...50 °C))
Permanent current rating of switching output DC [mA]: 100

Short-time current rating of switching output [mA]: 2200; (20 ms / 0,5 Hz)
Switching frequency AC [Hz]: 25
Switching frequency DC [Hz]: 50
Real sensing range Sr [mm]: 15 ± 10 %
Operating distance [mm]: 0...12.1
Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.3 / copper: 0.2
Hysteresis [% of Sr]: 1...15
Switch-point drift [% of Sr]: -10...10
Ambient temperature [°C]: -25...80
Protection: IP 67
MTTF [years]: 607
Weight [g]: 180
Thread designation: M30 x 1.5
Display switching status: 1 x LED, red
Required protection: miniature fuse to IEC60127-2 sheet 1; ≤ 2 A; fast acting

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on II0290 . Santa Clara Systems carries 3,034 items from Efector.
