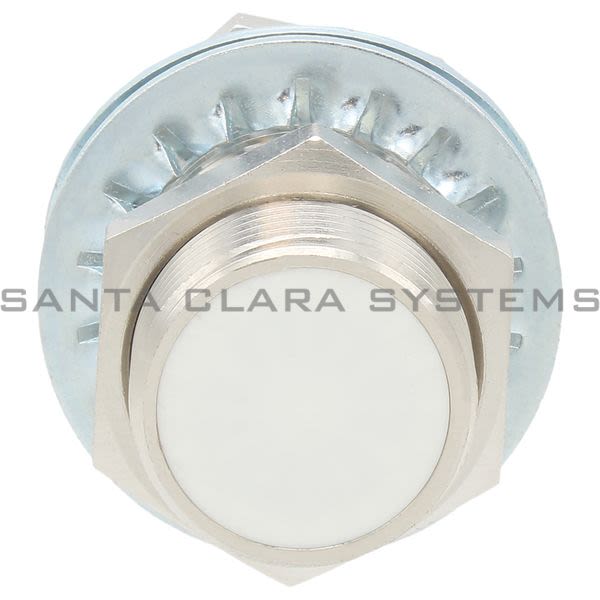

• Efector II0340 Inductive Sensor | IIK2015BABOA/SL/LS-100-AK Product Image

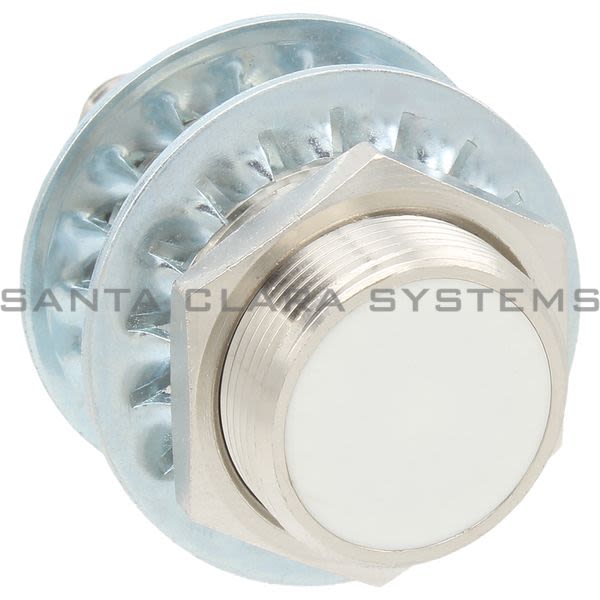

  • Efector II0340 Inductive Sensor | IIK2015BABOA/SL/LS-100-AK Product Image

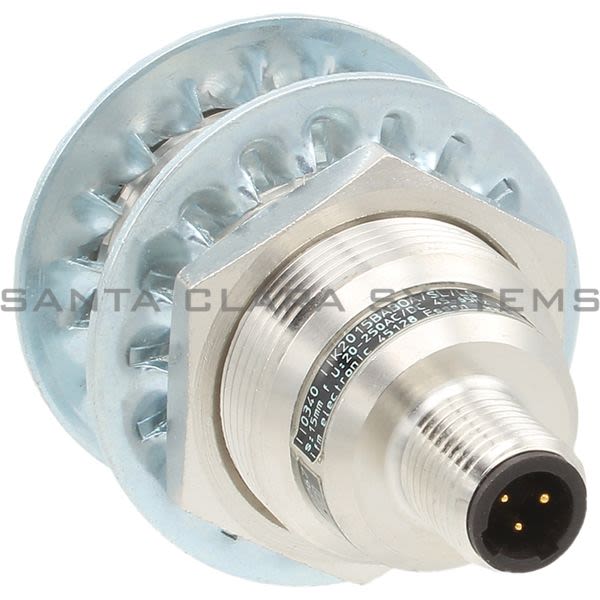

  • Efector II0340 Inductive Sensor | IIK2015BABOA/SL/LS-100-AK Product Image
  • Efector II0340 Inductive Sensor | IIK2015BABOA/SL/LS-100-AK Product Image
  • Efector II0340 Barcode

II0340

Product Summary:

  • Output Function: Normally Open
  • Mounting: Flush Mountable
  • Operating Voltage [V]: 20...250 Ac/Dc
  • Protection Class: I
  • Reverse Polarity Protection: No
Get a Quote

Current response time:

By 5AM PT on Monday
  • Description: Inductive Sensor | IIK2015BABOA/SL/LS-100-AK
  • Output Function: Normally Open
  • Mounting: Flush Mountable
  • Material: Housing: Brass White Bronze Coated; Sensing Face: Pbt; Connector Housing: Pa; Lock Nuts: Brass
  • Operating Voltage [V]: 20...250 Ac/Dc
  • Protection Class: I
  • Reverse Polarity Protection: No
  • Max. Voltage Drop Switching Output Dc [V]: 6
  • Max. Voltage Drop Switching Output Ac [V]: 6.5
  • Minimum Load Current [Ma]: 5
  • Max. Leakage Current [Ma]: 1 (250 V Ac) / 0.8 (140 V Ac) / 0.8 (24 V Dc)
  • Permanent Current Rating Of Switching Output Ac [Ma]: 250; (350 (...50 C))
  • Permanent Current Rating Of Switching Output Dc [Ma]: 100
  • Short-Time Current Rating Of Switching Output [Ma]: 2200; (20 Ms / 0,5 Hz)
  • Switching Frequency Ac [Hz]: 25
  • Switching Frequency Dc [Hz]: 40
  • Short-Circuit Proof: No
  • Overload Protection: No
  • Sensing Range [Mm]: 15
  • Operating Distance [Mm]: 0...12.1
  • Increased Sensing Range: Yes
  • Correction Factor: Steel: 1 / Stainless Steel: 0.7 / Brass: 0.5 / Aluminum: 0.47 / Copper: 0.4
  • Hysteresis [% Of Sr]: 3...20
  • Ambient Temperature [C]: -25...70
  • Protection: Ip 67
  • Emc: En 60947-5-2 En 55011 Class B
  • Housing: Threaded Type
  • Dimensions [Mm]: M30 X 1.5
  • Thread Designation: M30 X 1.5
  • Display: Switching Status 1 X Led, Red
  • Required Protection: Miniature Fuse To Iec60127-2 Sheet 1; ? 2 A; Fast Acting
  • Accessories (Supplied): Lock Nuts: 2 Serrated Washers: 2
  • Alternate Manufacturer Name: IFM
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on II0340 . Santa Clara Systems carries 2,078 items from Efector.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
