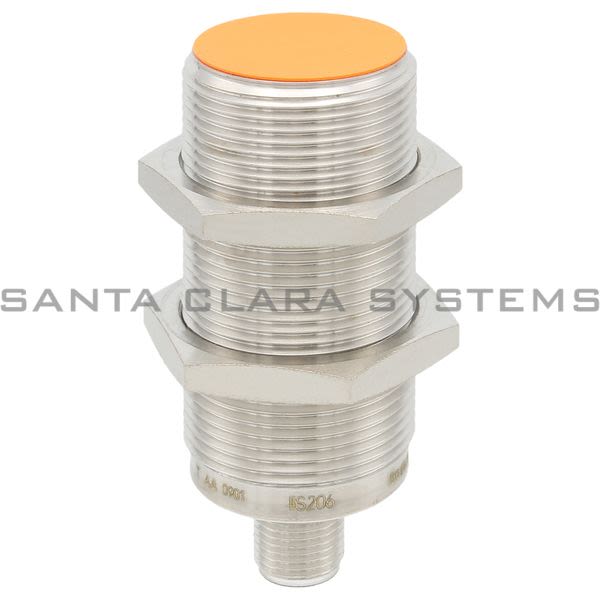

• Efector IIS206 Inductive Sensor | IIKC015BASKG/M/US-104-DRS/2LED Product Image

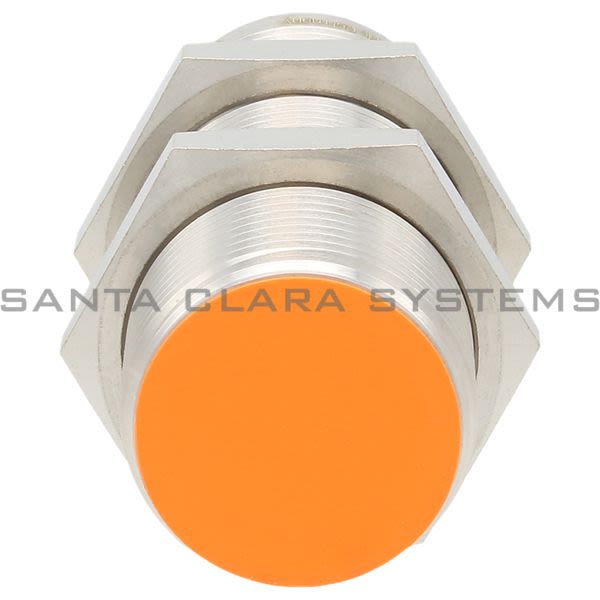

  • Efector IIS206 Inductive Sensor | IIKC015BASKG/M/US-104-DRS/2LED Product Image

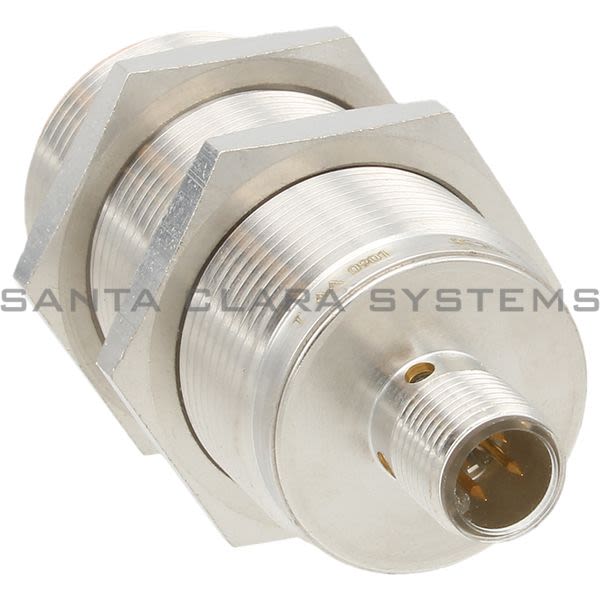

  • Efector IIS206 Inductive Sensor | IIKC015BASKG/M/US-104-DRS/2LED Product Image

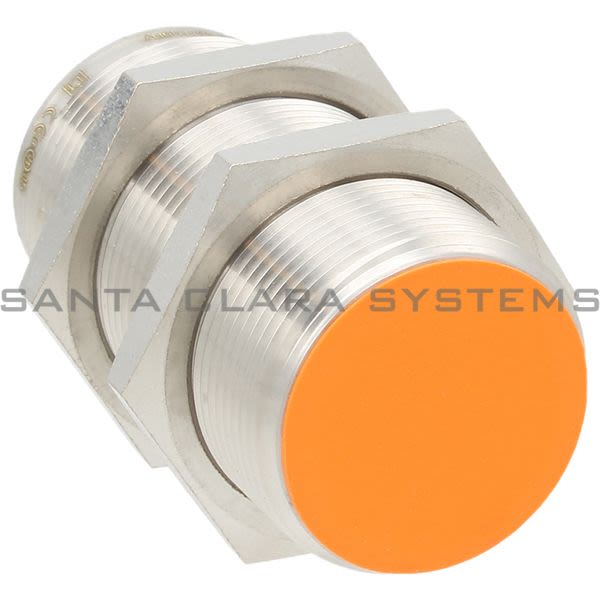

  • Efector IIS206 Inductive Sensor | IIKC015BASKG/M/US-104-DRS/2LED Product Image
  • Efector IIS206 Barcode

IIS206

Product Summary:

  • Electrical Design: Pnp/Npn
  • Output Function: Normally Open
  • Mounting: Flush Mountable
  • Material: Brass White Bronze Coated; Sensing Face: Pbt
  • Operating Voltage [V]: 10...36 Dc
Get a Quote

Current response time:

4 Minutes 28 Seconds
  • Description: Inductive Sensor | IIKC015BASKG/M/US-104-DRS/2LED
  • Electrical Design: Pnp/Npn
  • Output Function: Normally Open
  • Mounting: Flush Mountable
  • Material: Brass White Bronze Coated; Sensing Face: Pbt
  • Operating Voltage [V]: 10...36 Dc
  • Current Consumption [Ma]: 10; (24 V)
  • Protection Class: Ii
  • Reverse Polarity Protection: Yes
  • Max. Voltage Drop Switching Output Dc [V]: 2.5
  • Minimum Load Current [Ma]: 2; (Only In 2-Wire Operation)
  • Max. Leakage Current [Ma]: 0.5; (Only In 2-Wire Operation)
  • Permanent Current Rating Of Switching Output Dc [Ma]: 100
  • Switching Frequency Dc [Hz]: 100
  • Short-Circuit Protection: Yes
  • Type Of Short-Circuit Protection: Yes (Non-Latching)
  • Overload Protection: Yes
  • Sensing Range [Mm]: 15
  • Real Sensing Range Sr [Mm]: 15 10 %
  • Operating Distance [Mm]: 0...12.1
  • Increased Sensing Range: Yes
  • Correction Factor: Steel: 1 / Stainless Steel: 0.7 / Brass: 0.5 / Aluminum: 0.4 / Copper: 0.3
  • Hysteresis [% Of Sr]: 3...15
  • Switch-Point Drift [% Of Sr]: -10...10
  • Ambient Temperature [C]: -25...70
  • Protection: Ip 67
  • Emc: En 61000-4-2 Esd 4 Kv Cd / 8 Kv Ad En 61000-4-3 Hf Radiated 10 V/M En 61000-4-4 Burst 2 Kv En 61000-4-6 Hf Conducted 10 V En 55011 Class B
  • Ul Approval: Ta 0...40 C Enclosure Type Type 1 Voltage Supply Limited Voltage/Current File Number Ul E174191
  • Housing: Threaded Type
  • Dimensions [Mm]: M30 X 1.5 / L = 70
  • Thread Designation: M30 X 1.5
  • Display: Switching Status 4 X 90 Led, Yellow Setting Aid 1 X Led, Red
  • Optical Setting Aid: Yes
  • Accessories (Supplied): Lock Nuts: 2
  • 2-Wire: Connector: 1 X M12; Contacts: Gold-Plated
  • Alternate Manufacturer Name: IFM
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on IIS206 . Santa Clara Systems carries 2,078 items from Efector.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
