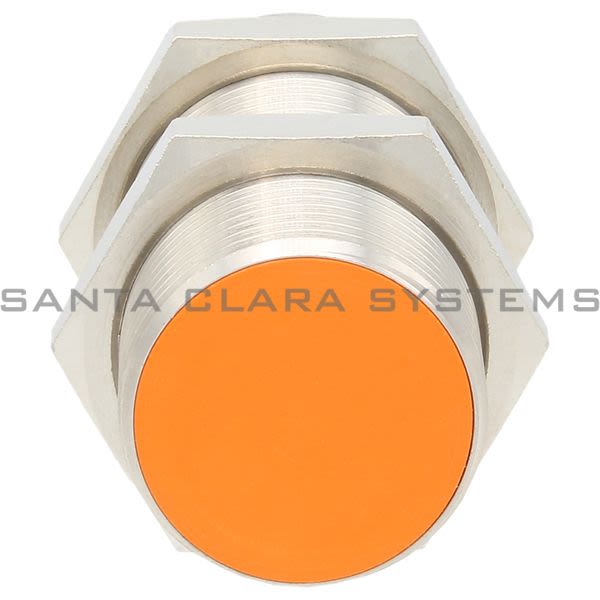

• Efector IIS226 Inductive Sensor | IIK3015BBPKG/US-104 Product Image

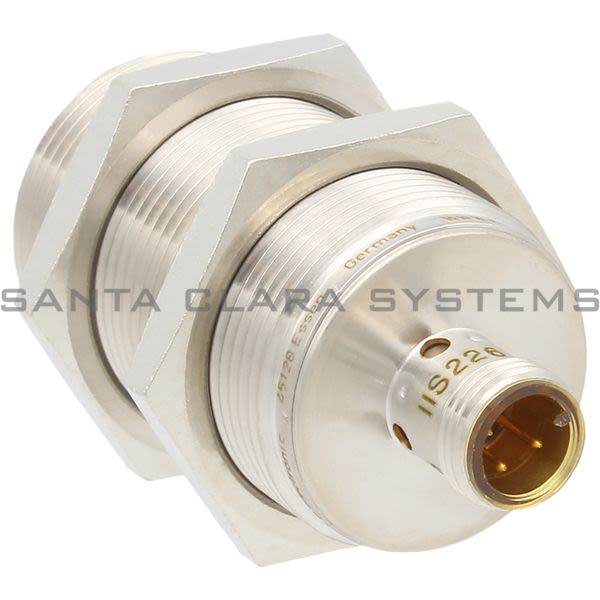

  • Efector IIS226 Inductive Sensor | IIK3015BBPKG/US-104 Product Image

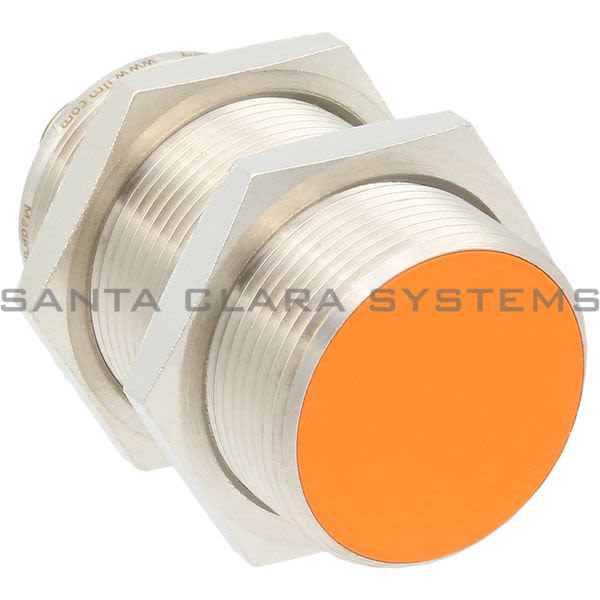

  • Efector IIS226 Inductive Sensor | IIK3015BBPKG/US-104 Product Image

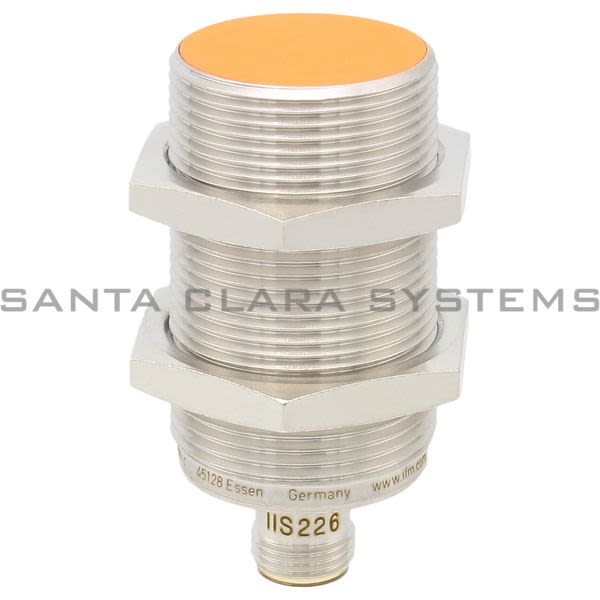

  • Efector IIS226 Inductive Sensor | IIK3015BBPKG/US-104 Product Image
  • Efector IIS226 Barcode

IIS226

Product Summary:

  • Electrical Design: Pnp
  • Output Function: Normally Open
  • Mounting: Flush Mountable
  • Operating Voltage [V]: 10...30 Dc; (Culus - Class 2 Source Required)
  • Current Consumption [Ma]: < 10
Get a Quote

Current response time:

By 5AM PT on Friday
  • Description: Inductive Sensor | IIK3015BBPKG/US-104
  • Electrical Design: Pnp
  • Output Function: Normally Open
  • Mounting: Flush Mountable
  • Material: Brass White Bronze Coated; Sensing Face: Pbt Orange; Led Window: Pei; Lock Nuts: Brass White Bronze Coated
  • Operating Voltage [V]: 10...30 Dc; (Culus - Class 2 Source Required)
  • Current Consumption [Ma]: < 10
  • Protection Class: Iii
  • Reverse Polarity Protection: Yes
  • Max. Voltage Drop Switching Output Dc [V]: 2.5
  • Permanent Current Rating Of Switching Output Dc [Ma]: 100
  • Switching Frequency Dc [Hz]: 100
  • Short-Circuit Protection: Yes
  • Overload Protection: Yes
  • Sensing Range [Mm]: 15
  • Real Sensing Range Sr [Mm]: 15 10 %
  • Operating Distance [Mm]: 0...12.15
  • Increased Sensing Range: Yes
  • Correction Factor: Steel: 1 / Stainless Steel: 0.7 / Brass: 0.5 / Aluminum: 0.4 / Copper: 0.3
  • Hysteresis [% Of Sr]: 3...15
  • Switch-Point Drift [% Of Sr]: -10...10
  • Ambient Temperature [C]: -40...85
  • Protection: Ip 65; Ip 66; Ip 67; Ip 68; Ip 69K
  • Emc: En 61000-4-2 Esd 4 Kv Cd / 8 Kv Ad En 61000-4-3 Hf Radiated 10 V/M En 61000-4-4 Burst 2 Kv En 61000-4-6 Hf Conducted 10 V En 55011 Class B
  • Vibration Resistance: En 60068-2-6 Fc 20 G (10...3000 Hz) / 50 Sweep Cycles Per Frequency; 1 Octave Per Minute In 3 Axes
  • Shock Resistance: En 60068-2-27 Ea 100 G 11 Ms Half-Sine; 3 Shocks Each In Every Direction Of The 3 Coordinate Axes
  • Continuous Shock Resistance: En 60068-2-29 Eb 40 G 6 Ms; 4000 Shocks Each In Every Direction Of The 3 Coordinate Axes
  • Fast Temperature Changes: En 60068-2-14 Na Ta = -40 C; Tb = 85 C; T1 = 30 Min; T2 = < 10 S; 50 Cycles
  • Salt Spray Test: En 60068-2-52 Kb Severity Level 5 (4 Test Cycles)
  • Ul Approval: Ta -25...70 C Enclosure Type Type 1 Voltage Supply Limited Voltage/Current Ul Approval Number A001 File Number Ul E174191
  • Housing: Threaded Type
  • Dimensions [Mm]: M30 X 1.5 / L = 60
  • Thread Designation: M30 X 1.5
  • Display: Switching Status 4 X Led, Yellow
  • Accessories (Supplied): Lock Nuts: 2
  • Connection: Connector: 1 X M12; Contacts: Gold-Plated
  • Alternate Manufacturer Name: IFM
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on IIS226 . Santa Clara Systems carries 2,078 items from Efector.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.

Alternates

  • IIK3015BBPKG/US-104
