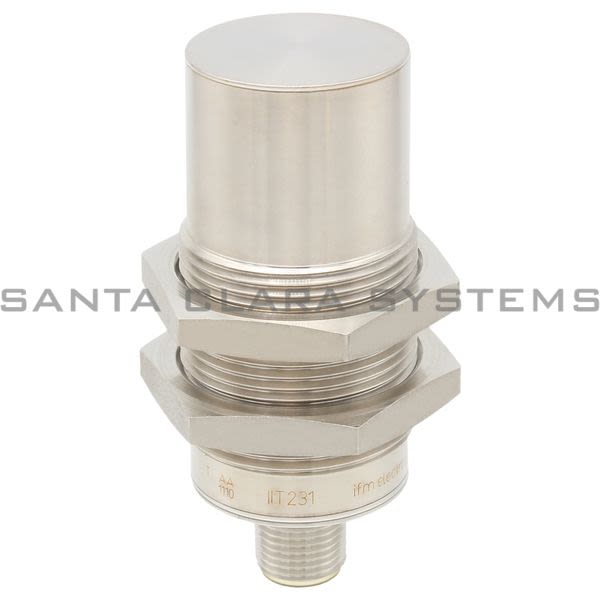

• Efector IIT231 Inductive Sensor | IIK3025-BPKG/AM/P/US-104-DPS Product Image

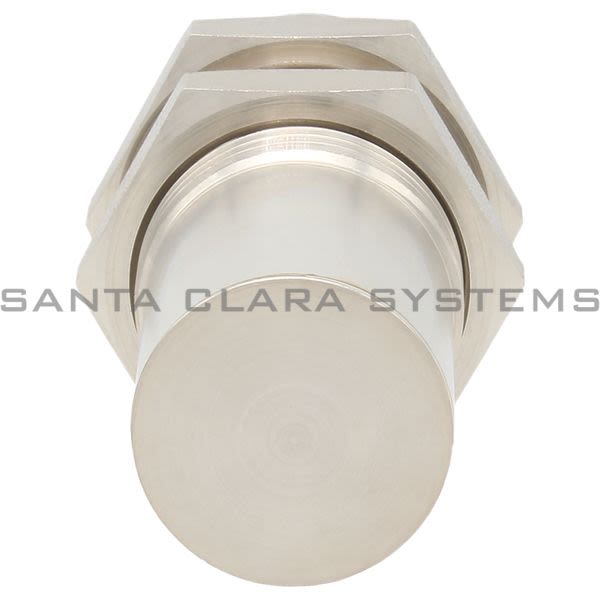

  • Efector IIT231 Inductive Sensor | IIK3025-BPKG/AM/P/US-104-DPS Product Image

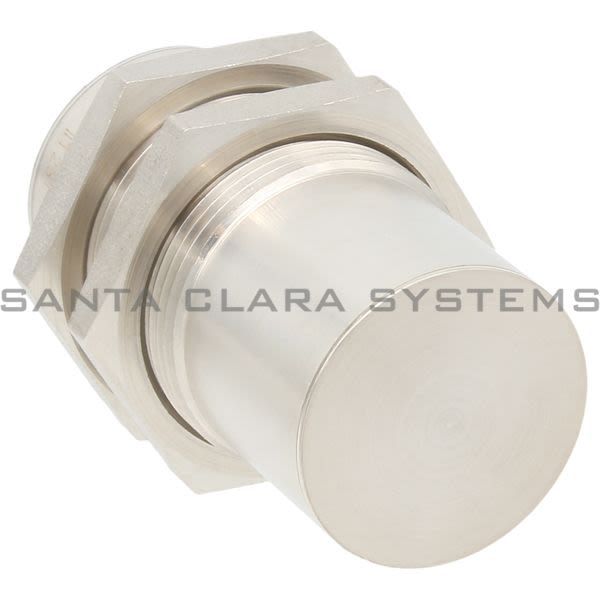

  • Efector IIT231 Inductive Sensor | IIK3025-BPKG/AM/P/US-104-DPS Product Image

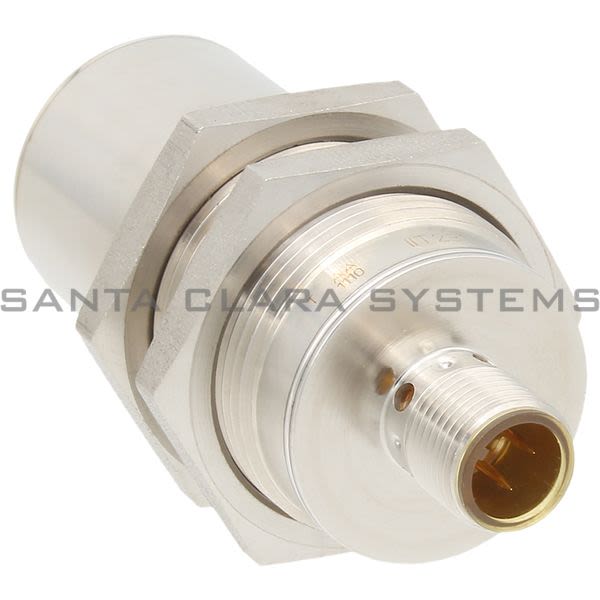

  • Efector IIT231 Inductive Sensor | IIK3025-BPKG/AM/P/US-104-DPS Product Image
  • Efector IIT231 Barcode

IIT231

Product Summary:

  • Electrical design: PNP
  • Output function: normally open
  • Mounting: non-flush mountable
  • Sensing range [mm]: 25
  • Housing: Threaded type
Get a Quote

Current response time:

6 Minutes 40 Seconds
  • Description: Inductive Sensor | IIK3025-BPKG/AM/P/US-104-DPS
  • Electrical design: PNP
  • Output function: normally open
  • Mounting: non-flush mountable
  • Material: housing: stainless steel (1.4404 / 316L); sensing face: stainless steel (1.4404 / 316L); lock nuts: stainless steel (1.4404 / 316L)
  • Sensing range [mm]: 25
  • Housing: Threaded type
  • Dimensions [mm]: M30 x 1.5 / L = 70
  • Pressure rating [bar]: 100
  • Operating voltage [V]: 10...36 DC
  • Current consumption [mA]: < 25
  • Protection class: III
  • Reverse polarity protection: yes
  • Max. voltage drop switching output DC [V]: 2.5
  • Permanent current rating of switching output DC [mA]: 100
  • Switching frequency DC [Hz]: 250
  • Real sensing range Sr [mm]: 25 10 %
  • Operating distance [mm]: 0...20.3
  • Correction factor: steel: 1 / stainless steel: 1 / brass: 0.7 / aluminum: 0.6 / copper: 0.4
  • Hysteresis [% of Sr]: 1...20
  • Switch-point drift [% of Sr]: -10...10
  • Ambient temperature [C]: 0...100
  • Protection: IP 65; IP 67; IP 68; IP 69K
  • Weight [g]: 133.5
  • Thread designation: M30 x 1.5
  • Display: Switching status 4 x 90 LED, yellow
  • Connection: Connector: 1 x M12; Contacts: gold-plated
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on IIT231 . Santa Clara Systems carries 2,078 items from Efector.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
