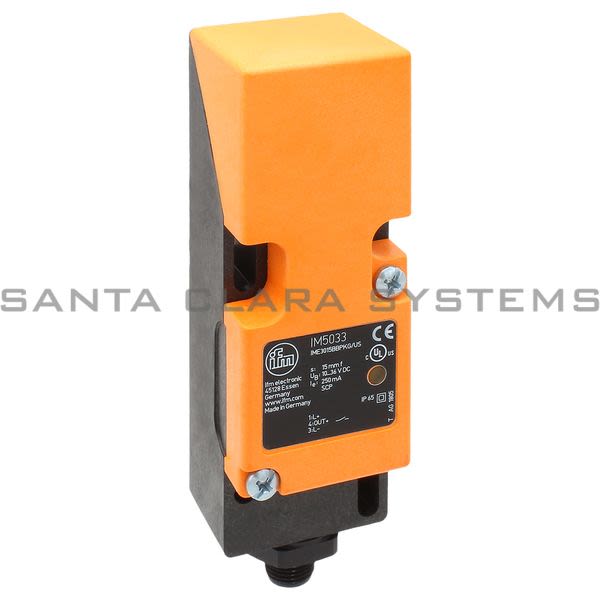

• Efector IM5033 Inductive Sensor | IME3015BBPKG/US-100-DPS Product Image

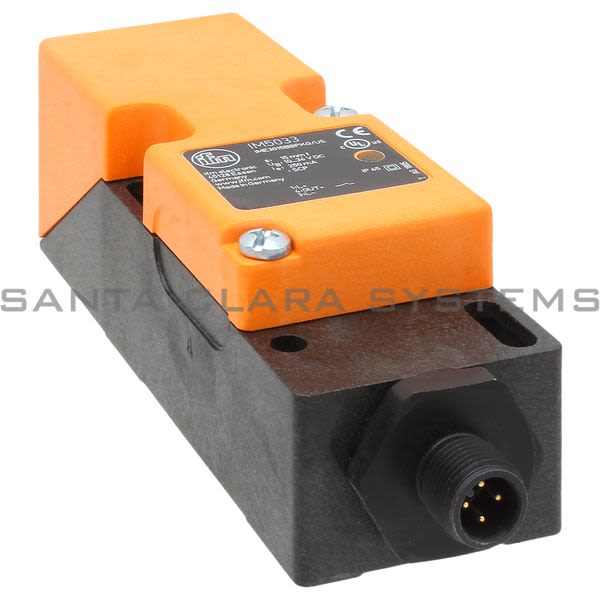

  • Efector IM5033 Inductive Sensor | IME3015BBPKG/US-100-DPS Product Image

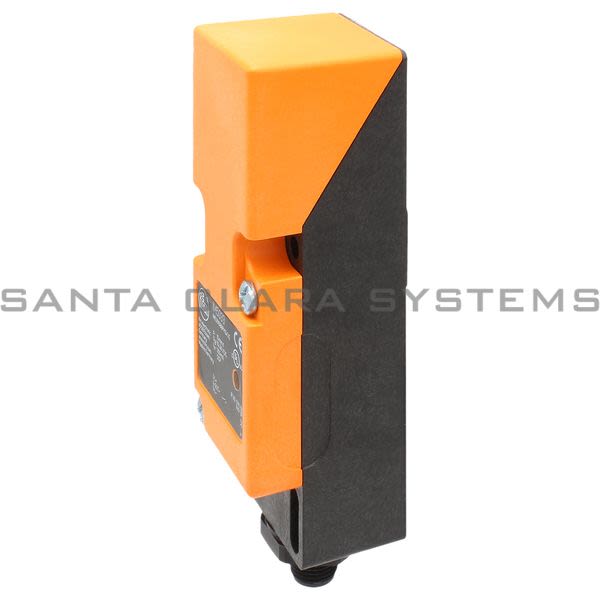

  • Efector IM5033 Inductive Sensor | IME3015BBPKG/US-100-DPS Product Image

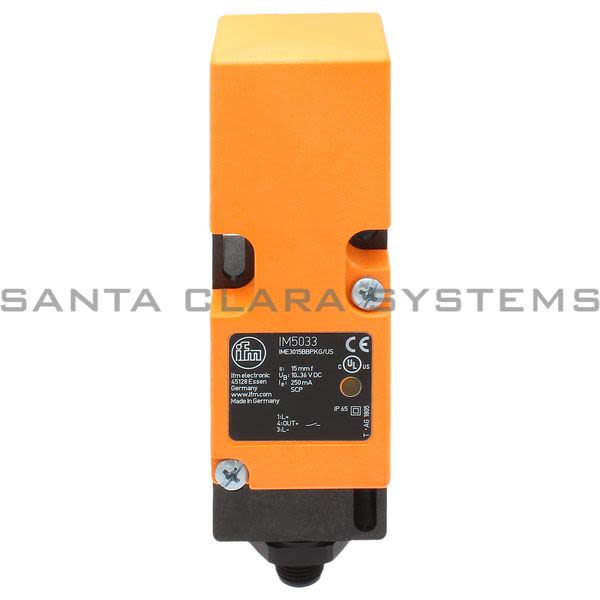

  • Efector IM5033 Inductive Sensor | IME3015BBPKG/US-100-DPS Product Image
  • Efector IM5033 Barcode

IM5033

Product Summary:

  • Electrical Design: Pnp
  • Output Function: Normally Open
  • Mounting: Flush Mountable
  • Material: Ppe
  • Operating Voltage [V]: 10...36 Dc
Get a Quote

Current response time:

By 5AM PT on Friday
  • Description: Inductive Sensor | IME3015BBPKG/US-100-DPS
  • Electrical Design: Pnp
  • Output Function: Normally Open
  • Mounting: Flush Mountable
  • Material: Ppe
  • Operating Voltage [V]: 10...36 Dc
  • Current Consumption [Ma]: 15; (24 V)
  • Protection Class: Ii
  • Reverse Polarity Protection: Yes
  • Max. Voltage Drop Switching Output Dc [V]: 2.5
  • Permanent Current Rating Of Switching Output Dc [Ma]: 250
  • Switching Frequency Dc [Hz]: 350
  • Short-Circuit Protection: Yes
  • Type Of Short-Circuit Protection: Yes (Non-Latching)
  • Overload Protection: Yes
  • Sensing Range [Mm]: 15
  • Real Sensing Range Sr [Mm]: 15 10 %
  • Operating Distance [Mm]: 0...12.1
  • Correction Factor: Steel: 1 / Stainless Steel: 0.7 / Brass: 0.4 / Aluminum: 0.3 / Copper: 0.2
  • Hysteresis [% Of Sr]: 1...15
  • Switch-Point Drift [% Of Sr]: -10...10
  • Ambient Temperature [C]: -25...80
  • Protection: Ip 65
  • Emc: En 60947-5-2 En 55011 Class B
  • Ul Approval: Ta 0...40 C Enclosure Type Type 1 Voltage Supply Hazardous Voltage File Number Ul E174191
  • Housing: Rectangular
  • Dimensions [Mm]: 40 X 40 X 120
  • Display: Switching Status 1 X Led, Yellow
  • Connection: Connector: 1 X M12
  • Alternate Manufacturer Name: IFM
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on IM5033 . Santa Clara Systems carries 2,078 items from Efector.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
