IN5258

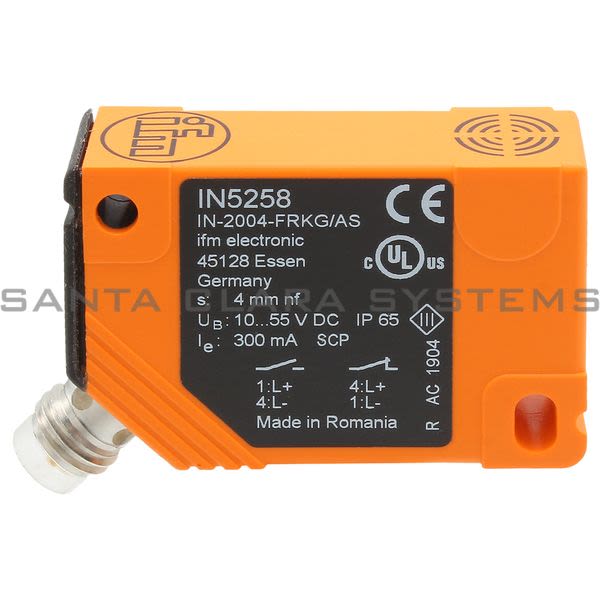

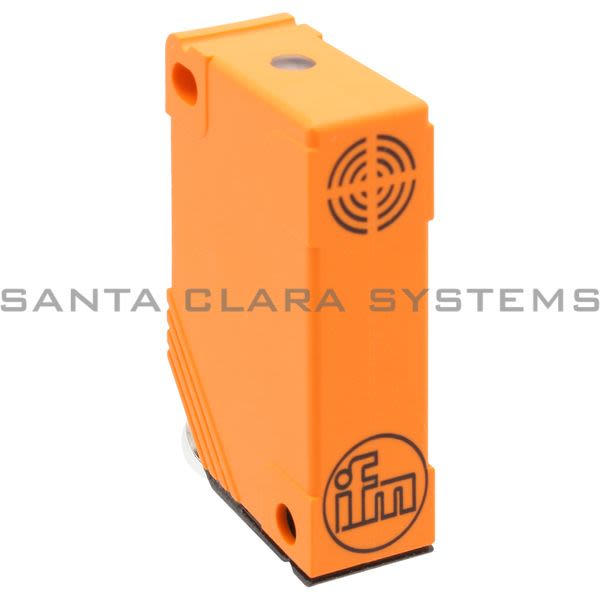

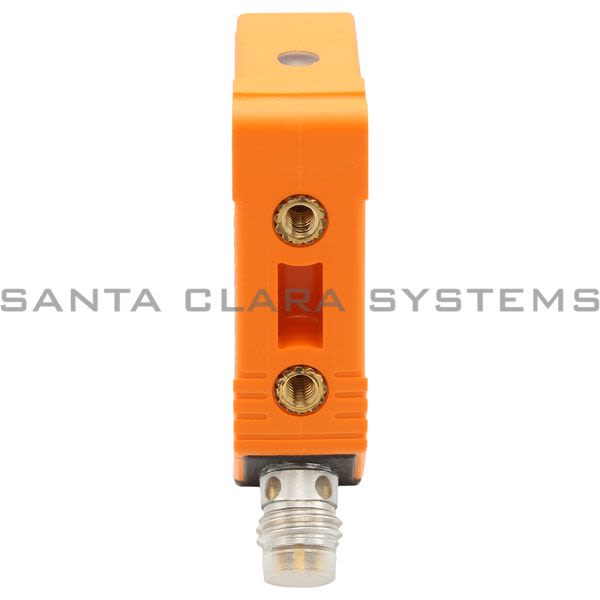

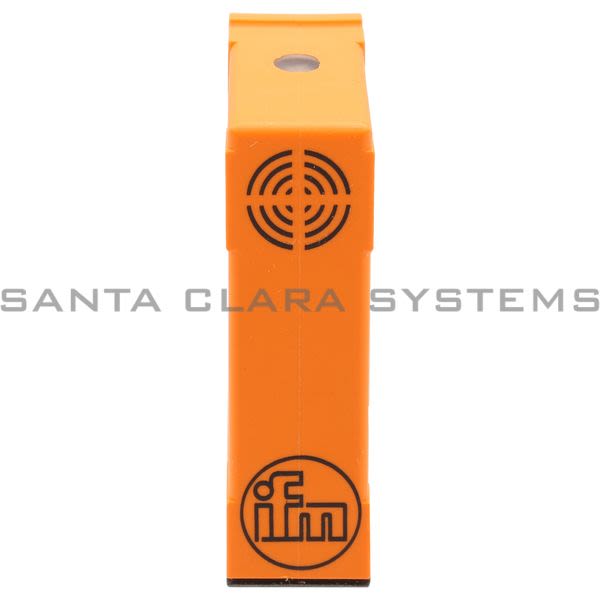

Efector - Inductive Sensor | IN-2004-FRKG/AS-610-T

Current response time:

By 5AM PT on Friday

Emergency?

Description: Inductive Sensor | IN-2004-FRKG/AS-610-T
Electrical Design: DC PNP/NPN
Output Function: Normally Open / Closed Programmable
Mounting: non-flush mountable
Material: PBT
Sensing Range [mm]: 4
Ambient Temperature [°C]: -25...80
Operating Voltage [V]: 10...55 DC
Alternate Manufacturer Name: IFM
Protection class: III
Reverse polarity protection: yes
Max. voltage drop switching output DC [V]: 4.6
Minimum load current [mA]: 4
Max. leakage current [mA]: 0.5
Permanent current rating of switching output DC [mA]: 300

Switching frequency DC [Hz]: 1200
Short-circuit protection: yes
Type of short-circuit protection: yes (non-latching)
Overload protection: yes
Real sensing range Sr [mm]: 4 ± 10 %
Operating distance [mm]: 0...3.25
Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.3 / copper: 0.2
Hysteresis [% of Sr]: 1...15
Switch-point drift [% of Sr]: -10...10
Protection: IP 65
Weight [g]: 21
Housing: rectangular
Dimensions [mm]: 40 x 12 x 26
Display: Switching status1 x LED, red
