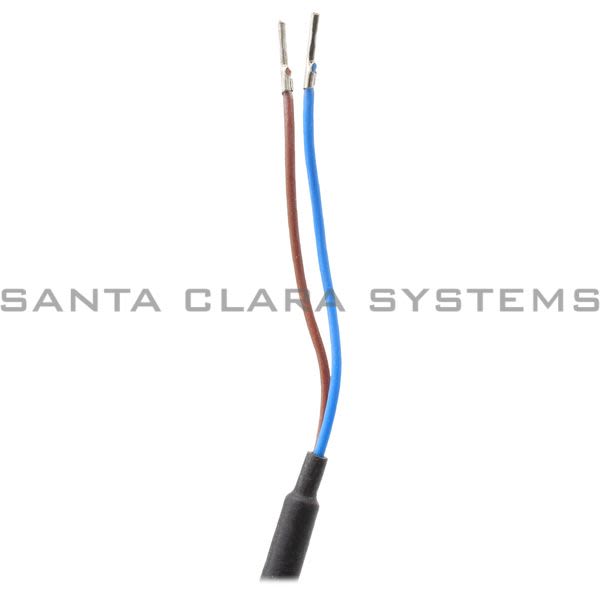

• Efector IN5281 Inductive Sensor | IN-2004-ARKG/2A/3M Product Image

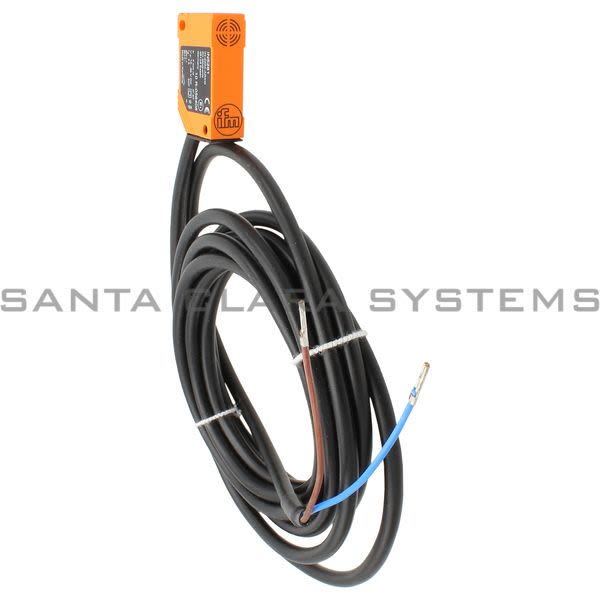

  • Efector IN5281 Inductive Sensor | IN-2004-ARKG/2A/3M Product Image

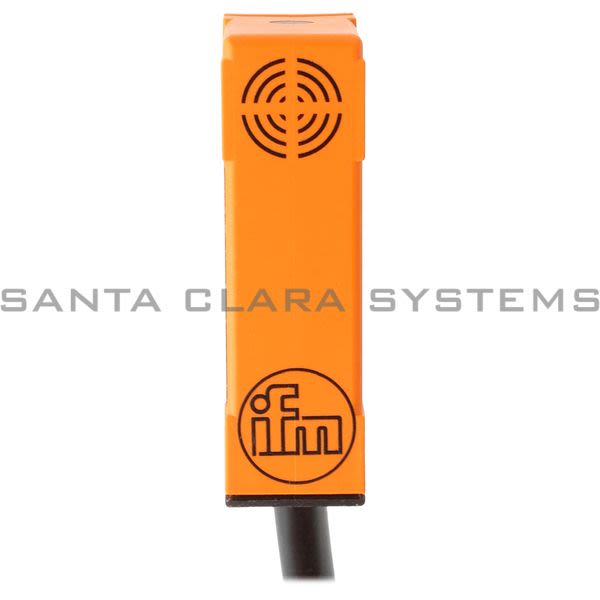

  • Efector IN5281 Inductive Sensor | IN-2004-ARKG/2A/3M Product Image

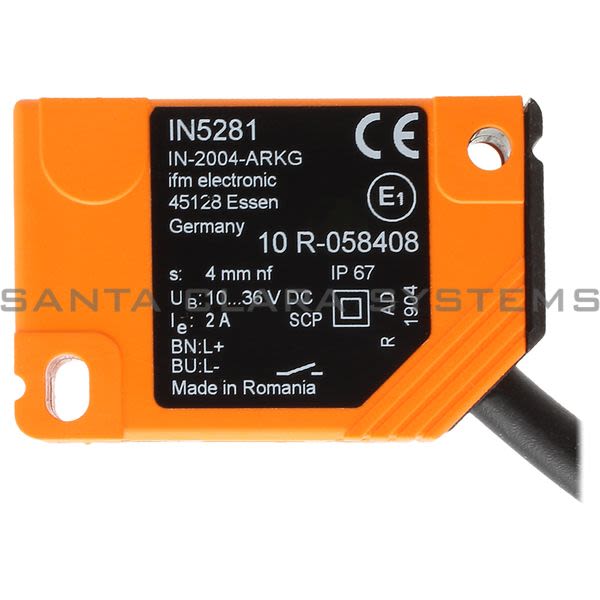

  • Efector IN5281 Inductive Sensor | IN-2004-ARKG/2A/3M Product Image
  • Efector IN5281 Barcode

IN5281

Product Summary:

  • Electrical design: PNP
  • Output function: normally open
  • Mounting: non-flush mountable
  • Material: PBT
  • Operating voltage [V]: 10...36 DC
Get a Quote

Current response time:

By 5AM PT on Tuesday
  • Description: Inductive Sensor | IN-2004-ARKG/2A/3M
  • Electrical design: PNP
  • Output function: normally open
  • Mounting: non-flush mountable
  • Material: PBT
  • Operating voltage [V]: 10...36 DC
  • Protection class: II
  • Reverse polarity protection: yes
  • Max. voltage drop switching output DC [V]: 4
  • Switching frequency DC [Hz]: 70
  • Sensing range [mm]: 4
  • Real sensing range Sr [mm]: 4 10 %
  • Operating distance [mm]: 0...3.25
  • Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3
  • Hysteresis [% of Sr]: 1...15
  • Switch-point drift [% of Sr]: -10...10
  • Ambient temperature [C]: -25...80
  • Protection: IP 67
  • Weight [g]: 143
  • Housing: rectangular
  • Display: Switching status 1 x LED, yellow
  • Minimum load current [mA]: 5
  • Max. leakage current [mA]: 1
  • Short-time current rating of switching output [mA]: 2000; (only for mounting on a solid metal plate or cooling plate: 150 x 50 x 2 mm; Intermittent operation with a max. switch-on time of the load current of 4 s. ; After that a min. switch-off time of the load current of 2 s has to be kept.)
  • Dimensions [mm]: 40 x 12 x 26
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on IN5281 . Santa Clara Systems carries 2,078 items from Efector.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
