IT5034

Efector - Inductive Sensor | ITB31,5BBPKG/AS

Current response time:

12 Minutes 39 Seconds

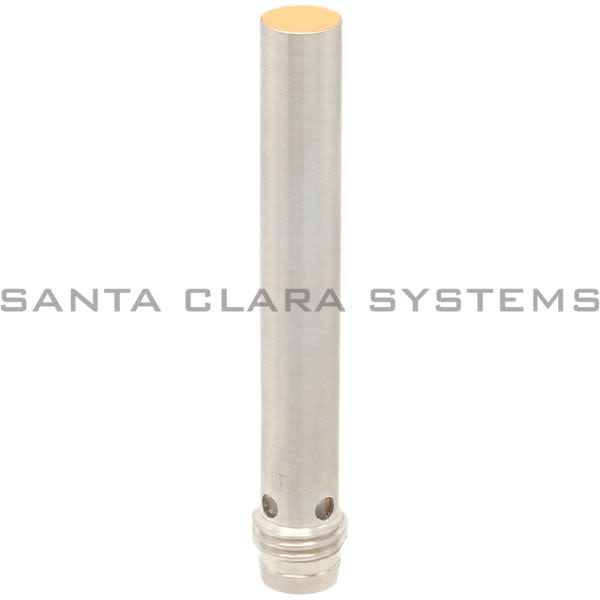

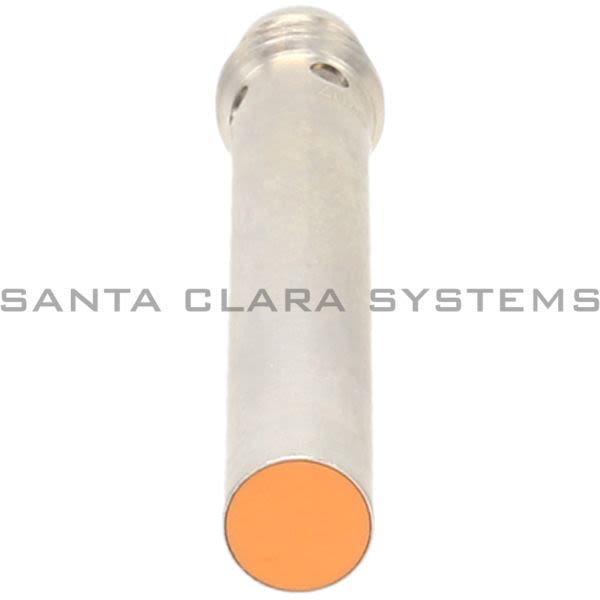

Description: Inductive Sensor | ITB31,5BBPKG/AS
Electrical Design: Pnp
Output Function: Normally Open
Mounting: Flush Mountable
Material: Brass Special Coating; Sensing Face: Lcp Orange
Operating Voltage [V]: 10...36 Dc; (Culus - Class 2 Source Required)
Current Consumption [mA]: 15; (24 V)
Sensing Range [mm]: 1.5
Ambient Temperature [C]: 0...60
Protection Class: Iii
Reverse Polarity Protection: Yes
Max. Voltage Drop Switching Output Dc [V]: 2.5
Permanent Current Rating Of Switching Output Dc [Ma]: 200
Switching Frequency Dc [Hz]: 1700
Short-Circuit Protection: Yes
Type Of Short-Circuit Protection: Yes (Non-Latching)
Overload Protection: Yes

Real Sensing Range Sr [Mm]: 1.5 10 %
Safe Switching-Off Distance S(Ar) [Mm]: 1.22
Correction Factor: Stainless Steel: 0.7 / Brass: 0.4 / Aluminum: 0.3 / Copper: 0.2
Hysteresis [% Of Sr]: 1...20
Switch-Point Drift [% Of Sr]: -10...10
Protection: Ip 65; (With Ifm Socket Duly Screwed On: Ip67)
Emc: En 61000-4-2 Esd 4 Kv Cd / 8 Kv Ad En 61000-4-3 Hf Radiated 10 V/M En 61000-4-4 Burst 2 Kv En 61000-4-5 Surge 0,5 Kv Line To Line, Ri: 2 Ohm En 61000-4-6 Hf Conducted 10 V En 55011 Class B
Vibration Resistance: En 60947-5-2
Shock Resistance: En 60947-5-2
Ul Approval: Ta -25...80 C Enclosure Type Type 1 Voltage Supply Class 2 File Number Ul E174191
Housing: Tubular
Dimensions [Mm]: 6.5 / L = 50
Display: Switching Status 4 X 90 Led, Yellow

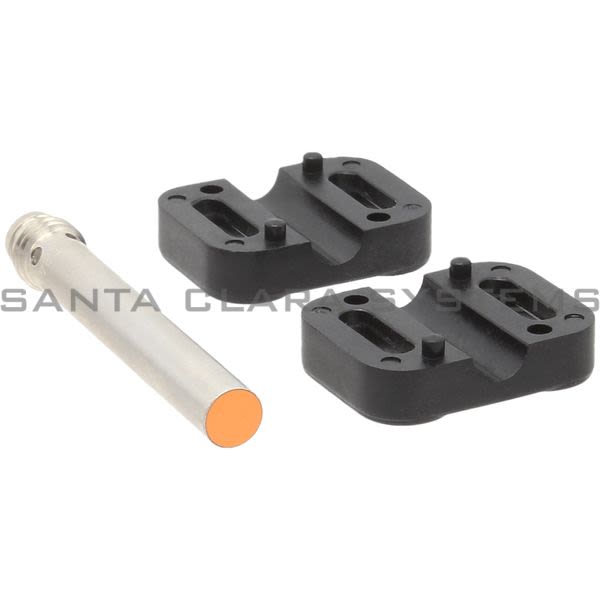

Accessories (Supplied): Mounting Clamp: 1

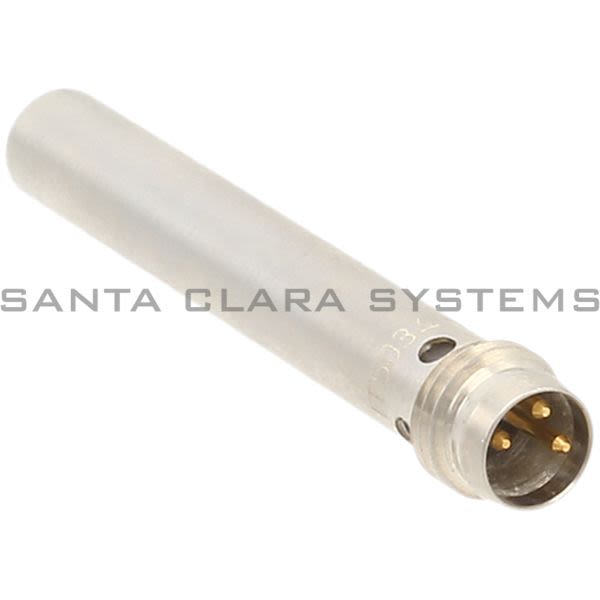

Connection: Connector: 1 X M8
Alternate Manufacturer Name: IFM
