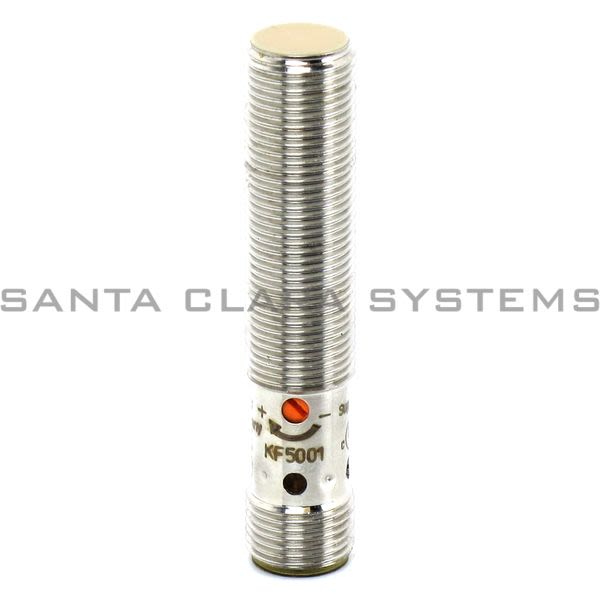

• Efector KF5001 Capacitive Sensor | KFA3040BBPKG/NI/US Product Image

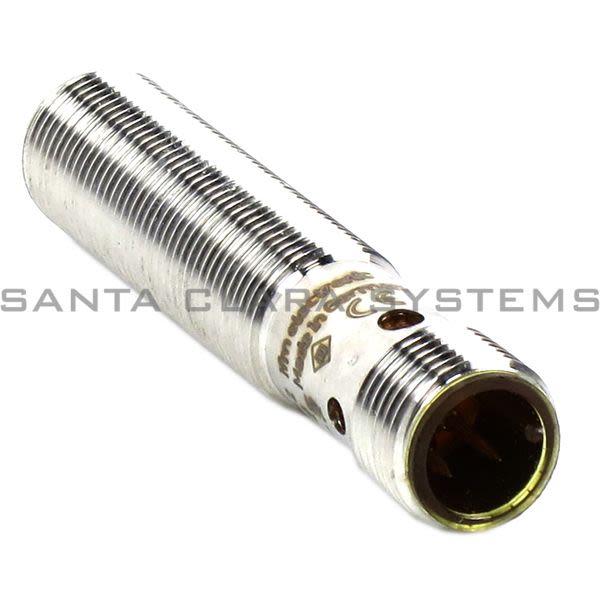

  • Efector KF5001 Capacitive Sensor | KFA3040BBPKG/NI/US Product Image

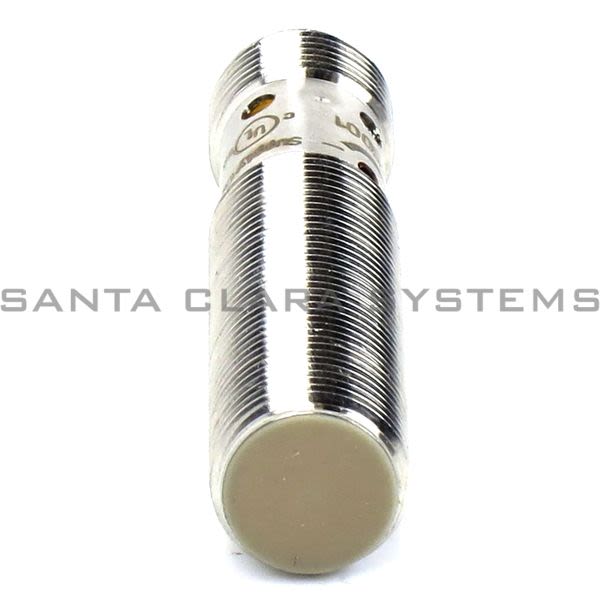

  • Efector KF5001 Capacitive Sensor | KFA3040BBPKG/NI/US Product Image

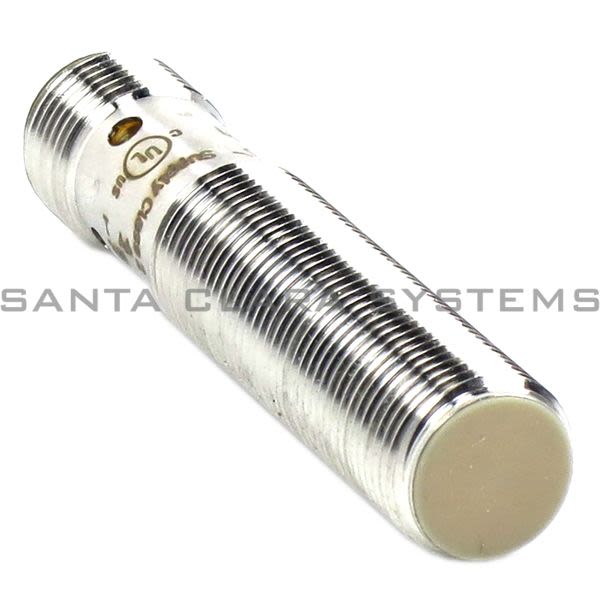

  • Efector KF5001 Capacitive Sensor | KFA3040BBPKG/NI/US Product Image
  • Efector KF5001 Barcode

KF5001

Product Summary:

  • Electrical Design: DC PNP
  • Output Function: Normally Open
  • Operating Voltage: 10-36VDC; cULus - Class 2 source required
  • Sensing Range: 4mm
  • Mounting: Flush mountable
Get a Quote

Current response time:

By 5AM PT on Friday
  • Description: Capacitive Sensor | KFA3040BBPKG/NI/US
  • Electrical Design: DC PNP
  • Output Function: Normally Open
  • Operating Voltage: 10-36VDC; cULus - Class 2 source required
  • Sensing Range: 4mm
  • Mounting: Flush mountable
  • Material: Stainless steel (1.4404 / 316L); PEEK
  • Ambient temperature [C]: -25 to 70
  • Alternate Manufacturer Name: IFM
  • Housing: Threaded type
  • Dimensions [mm]: M12 x 1 / L = 60
  • Media: Dry bulk material; liquids
  • Current consumption [mA] : < 12
  • Protection class: III
  • Max. voltage drop switching output DC [V]: 2.5
  • Permanent current rating of switching output DC [mA]: 100
  • Switching frequency DC [Hz]: 50
  • Short-circuit proof: yes
  • Overload protection: yes
  • Sensing range [mm]: 1...6
  • Sensing range adjustable: Yes
  • Factory setting sensing range [mm]: 4
  • Real sensing range Sr [mm]: 4 10 %
  • Correction factor: Glass: 0.6 / water: 1 / ceramics: 0.5 / PVC: 0.4
  • Hysteresis [% of Sr]: 1...15
  • Switch-point drift [% of Sr]: -20...20
  • Protection: IP 65
  • Increased immunity: Yes
  • EMC: EN 60947-5-2
  • MTTF [years]: 636
  • Weight [g]: 38.9
  • Thread designation: M12 x 1
  • Display: Switching status 1 x LED, yellow
  • Accessories (supplied): lock nuts: 2
  • Pack quantity: 1 pcs.
  • Connector: 1 x M12
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on KF5001 . Santa Clara Systems carries 1,913 items from Efector.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
