KI5002

Efector - Capacitive Sensor | KI-3015-BPKG/NI

Current response time:

By 5AM PT on Monday

Emergency?

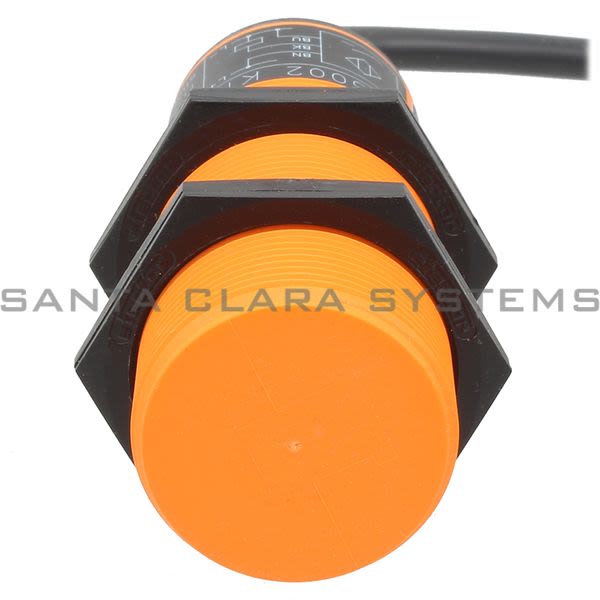

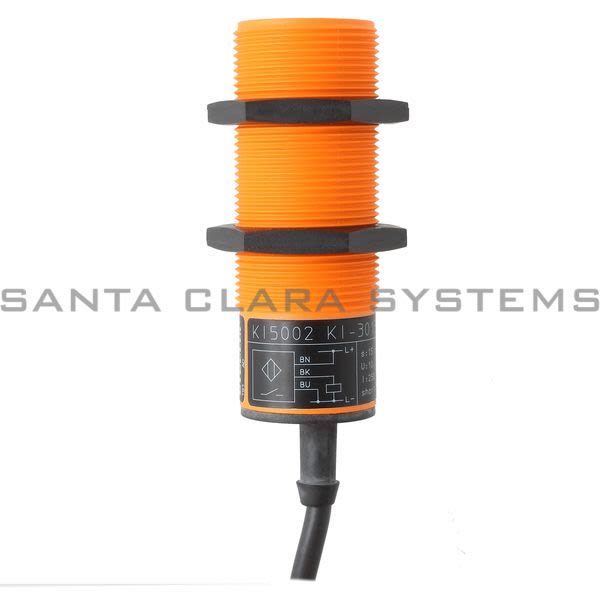

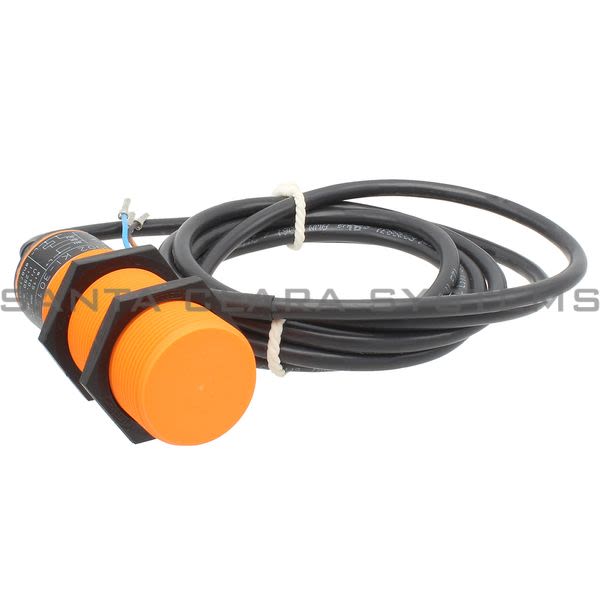

Description: Capacitive Sensor | KI-3015-BPKG/NI
Electrical Design: PNP
Output Function: Normally Open
Mounting: Non-flush mountable
Material: PBT
Operating Voltage [V]: 10...36 DC
Current Consumption [mA]: 13; (24 V)
Sensing Range [mm]: 15
Ambient Temperature [C]: -25...70
Alternate Manufacturer Name: IFM
Housing: Threaded type
Dimensions [mm]: M30 x 1.5 / L = 81
Protection class: II
Reverse polarity protection: yes
Max. voltage drop switching output DC [V]: 2.5
Switching frequency DC [Hz] : 40
Short-circuit proof: yes
Overload protection: yes

Sensing range adjustable: yes
Factory setting sensing range [mm]: 15
Real sensing range Sr [mm]: 15 10 %
Operating distance [mm]: 0...12.1
Correction factor: Glass: 0.4 / water: 1 / ceramics: 0.2 / PVC: 0.2
Hysteresis [% of Sr]: 1...15
Switch-point drift [% of Sr]: -15...15
Protection: IP 65
Increased immunity: Yes; (Increased immunity to conducted radio frequency interference)
EMC: EN 60947-5-2
MTTF [years]: 778
Weight [g]: 193.5
Thread designation: M30 x 1.5
Display: Switching status 1 x LED, yellow
Accessories (supplied): lock nuts: 2 screwdriver: 1
Pack quantity: 1 pcs.

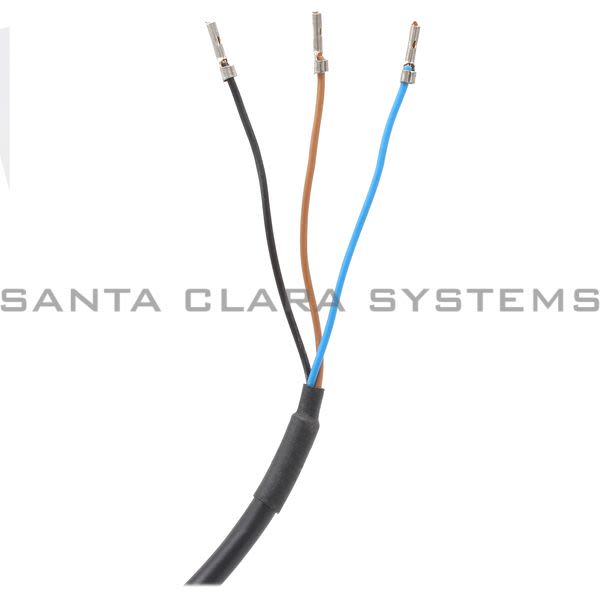

Connection: Cable: 2 m, PVC; 3 x 0.5 mm
