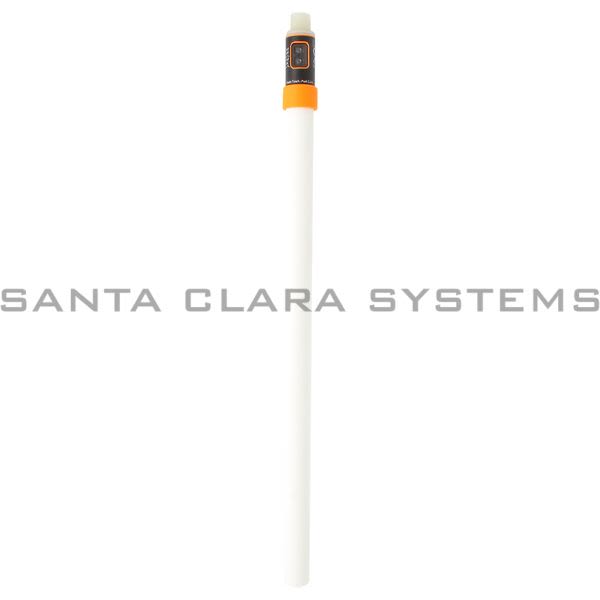

• Efector LI5142 Level Sensor | LI0273--K-00KNPKG/US Product Image

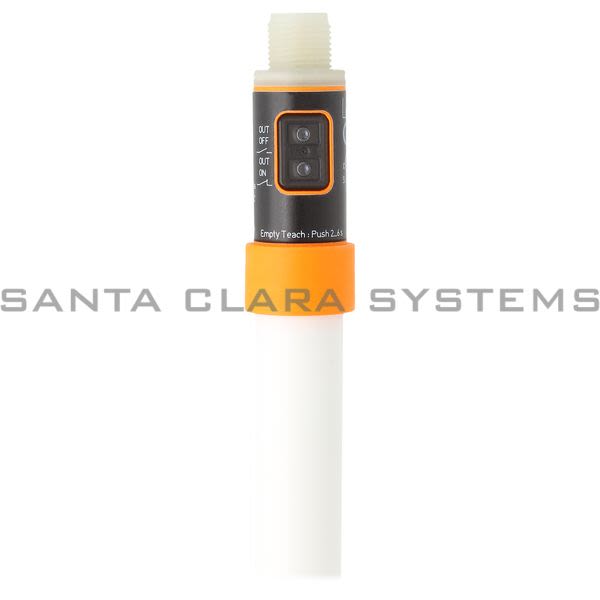

  • Efector LI5142 Level Sensor | LI0273--K-00KNPKG/US Product Image

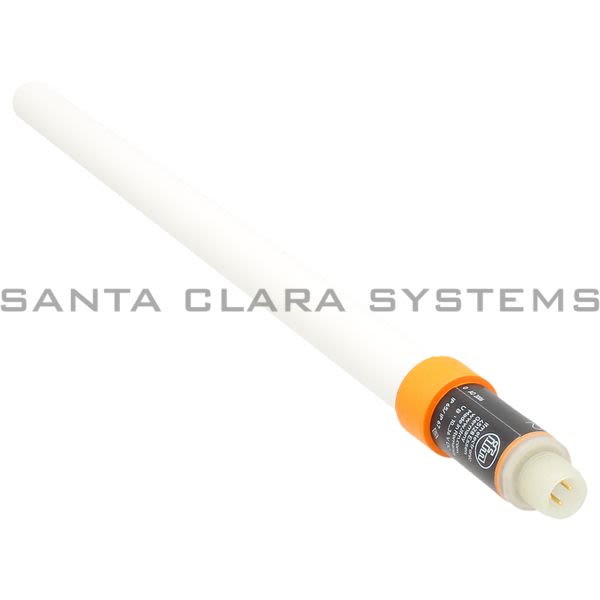

  • Efector LI5142 Level Sensor | LI0273--K-00KNPKG/US Product Image

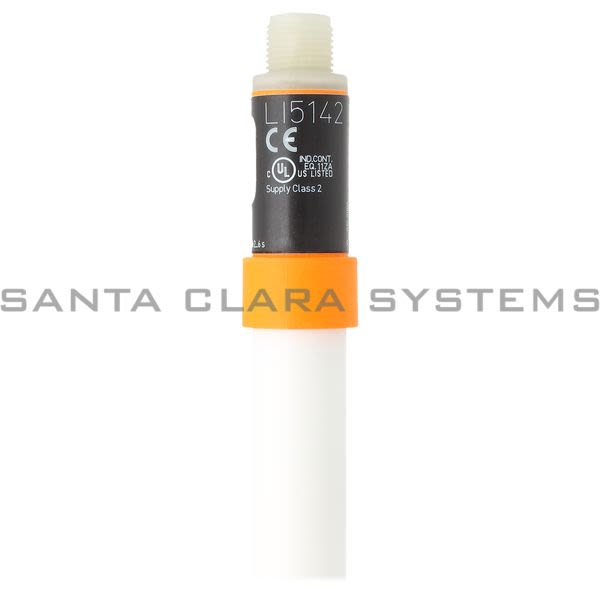

  • Efector LI5142 Level Sensor | LI0273--K-00KNPKG/US Product Image
  • Efector LI5142 Barcode

LI5142

Product Summary:

  • Electrical Design: Pnp
  • Output Function: Normally Open / Closed; (Configurable)
  • Material: Pp-Gf30; Tpe-U
  • Media: Hydrous Coolants; Oils; Water; Media Similar To Water
  • Dielectric Constant Of The Medium: > 1,8
Get a Quote

Current response time:

By 5AM PT on Tuesday
  • Description: Level Sensor | LI0273--K-00KNPKG/US
  • Electrical Design: Pnp
  • Output Function: Normally Open / Closed; (Configurable)
  • Material: Pp-Gf30; Tpe-U
  • Media: Hydrous Coolants; Oils; Water; Media Similar To Water
  • Dielectric Constant Of The Medium: > 1,8
  • Recommended Media: Hydrous Coolants; Oils; Water; Media Similar To Water
  • Cannot Be Used For: Granulates; Bulk Material; Acids; Alkali
  • Tank Pressure [Bar]: -0.5...0.5; (When Mounting With Mounting Accessories: E43001 - E43007, E43019)
  • Medium Temperature [C]: 0...35; (Li5142 + E43100: 0...65; For Water And Hydrous Media With Temperatures > 35 C Install The Unit Into A Climatic Tube)
  • Medium Temperature Short Time [C]: 0...80
  • Operating Voltage [V]: 10...36 Dc
  • Current Consumption [Ma]: 22; (24 V)
  • Protection Class: Iii
  • Reverse Polarity Protection: Yes
  • Number Of Inputs And Outputs: Number Of Digital Outputs: 1
  • Total Number Of Outputs: 1
  • Output Signal: Switching Signal
  • Number Of Digital Outputs: 1
  • Max. Voltage Drop Switching Output Dc [V]: 2.5
  • Permanent Current Rating Of Switching Output Dc [Ma]: 200
  • Short-Circuit Protection: Yes
  • Type Of Short-Circuit Protection: Yes (Non-Latching)
  • Overload Protection: Yes
  • Probe Length L [Mm]: 273
  • Active Range A [Mm]: 31
  • Ambient Temperature [C]: -25...80
  • Protection: Ip 65; Ip 67
  • Emc: En 61000-6-2 : 2005 + Corr. 2005 En 61000-6-4 : 2007
  • Shock Resistance: Din En 60068-2-29 12 G (11 Ms)
  • Vibration Resistance: Din En 60068-2-6 5 G (10...2000 Hz)
  • Dimensions [Mm]: 16
  • Materials (Wetted Parts): Pp
  • Display: Power Led, Green Switching Status Led, Yellow
  • Connection: Connector: 1 X M12; Contacts: Gold-Plated
  • Alternate Manufacturer Name: IFM
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on LI5142 . Santa Clara Systems carries 2,078 items from Efector.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
