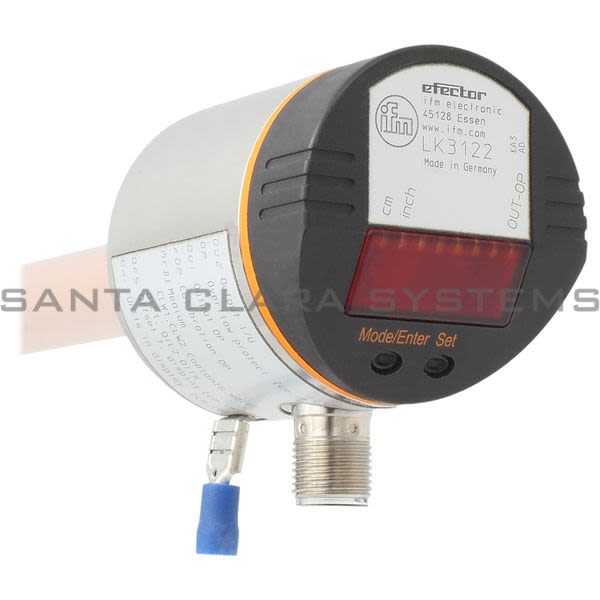

• Efector LK3122 Electronic Level Sensor | LK0264B-B-00KLPKG/US Product Image

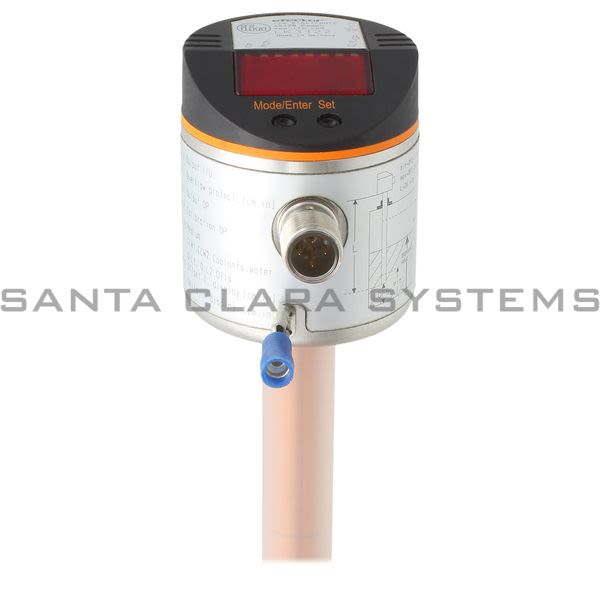

  • Efector LK3122 Electronic Level Sensor | LK0264B-B-00KLPKG/US Product Image
  • Efector LK3122 Electronic Level Sensor | LK0264B-B-00KLPKG/US Product Image
  • Efector LK3122 Barcode

LK3122

Product Summary:

  • Electrical Design: Pnp/Npn
  • Output Function: Normally Open / Closed; (Configurable)
  • Media: Hydrous Coolants; Oils; Oil-Based Media; Water; Media Similar To Water
  • Dielectric Constant Of The Medium: > 2
  • Maximum Speed Of The Change Of Level [Mm/S]: 100
Get a Quote

Current response time:

19 Minutes 58 Seconds
  • Description: Electronic Level Sensor | LK0264B-B-00KLPKG/US
  • Electrical Design: Pnp/Npn
  • Output Function: Normally Open / Closed; (Configurable)
  • Material: Stainless Steel (1.4301 / 304); Stainless Steel (1.4404 / 316L); Fkm; Nbr; Pbt; Pc; Pa; Pp; Tpv
  • Media: Hydrous Coolants; Oils; Oil-Based Media; Water; Media Similar To Water
  • Dielectric Constant Of The Medium: > 2
  • Cannot Be Used For: Extremely Conductive Media; Adhering Media; Granulates; Bulk Material; Acids; Alkali; Food And Electroplating Industry
  • Maximum Speed Of The Change Of Level [Mm/S]: 100
  • Tank Pressure [Bar]: 0.5; (When Mounting With Mounting Accessories: E43001 - E43007, E43019)
  • Medium Temperature [C]: 0...35; (With Climate Tube E43100: 35...65 C)
  • Medium Temperature Short Time [C]: 0...90; (< 1 H)
  • Operating Voltage [V]: 18...30 Dc
  • Current Consumption [Ma]: < 50
  • Protection Class: Iii
  • Reverse Polarity Protection: Yes
  • Power-On Delay Time [S]: < 3
  • Number Of Inputs And Outputs: Number Of Digital Outputs: 1; Number Of Analog Outputs: 1
  • Total Number Of Outputs: 2
  • Output Signal: Switching Signal; Analog Signal; Io-Link
  • Number Of Digital Outputs: 1
  • Max. Voltage Drop Switching Output Dc [V]: 2.5
  • Permanent Current Rating Of Switching Output Dc [Ma]: 200
  • Number Of Analog Outputs: 1
  • Analog Current Output [Ma]: 4...20, Invertible
  • Max. Load [?]: 500
  • Analog Voltage Output [V]: 0...10, Invertible
  • Min. Load Resistance [?]: 2000
  • Short-Circuit Protection: Yes
  • Type Of Short-Circuit Protection: Thermal, Pulsed
  • Overload Protection: Yes
  • Factory Setting: Hydrous Coolants; Water; Media Similar To Water
  • Probe Length L [Mm]: 264
  • Active Range A [Mm]: 195
  • Inactive Range I1 / I2 [Mm]: 53 / 16
  • Set Point Sp [Mm]: 25...200
  • Reset Point Rp [Mm]: 20...195
  • In Steps Of [Mm]: 5
  • Reference Point Op [Mm]: 69 - 82 - 94 - 106 - 118 - 130 - 143 - 155 - 167 - 179 - 191 - 204 - Off
  • Hysteresis, Op [Mm]: 2
  • Measuring Error [% Of The Final Value]: 5
  • Repeatability: 2
  • Resolution [Mm]: 5
  • Zero Signal (Voltage) [V]: 0
  • Zero Signal (Current) [Ma]: 4
  • Full Signal (Voltage) [V]: 10
  • Full Signal (Current) [Ma]: 20
  • Parameter Setting Options: Hysteresis / Window; Normally Open / Closed; Switching Logic; Current/Voltage Output; Sp/Rp Position; Adjustment Op; Medium Selection; Offset Setting; Switch-On/Switch-Off Delay
  • Communication Interface: Io-Link
  • Transmission Type: Com2 (38,4 Kbaud)
  • Io-Link Revision: 1.1
  • Sdci Standard: Iec 61131-9
  • Io-Link Device Id: 0X000289
  • Profiles: Smart Sensor: Process Data Variable; Device Identification, Device Diagnosis
  • Sio Mode: Yes
  • Required Master Port Class: A
  • Process Data Analogue: 2
  • Process Data Binary: 1
  • Min. Process Cycle Time [Ms]: 3.2
  • Ambient Temperature [C]: 0...60
  • Storage Temperature [C]: -25...80
  • Protection: Ip 67
  • Emc: Din En 61000-6-4 Din En 61000-6-2
  • Shock Resistance: Din En 60068-2-29 15 G (11 Ms)
  • Vibration Resistance: Din En 60068-2-6 5 G (10...2000 Hz)
  • Dimensions [Mm]: 16
  • Materials (Wetted Parts): Pp
  • Display: Display Unit / Status 2 X Led, Green (Cm, Inch) Switching Status 1 X Led, Yellow Measured Values Alphanumeric Display, 4-Digit Parameter Setting Alphanumeric Display, 4-Digit
  • Connection: Connector: 1 X M12; Contacts: Gold-Plated
  • Alternate Manufacturer Name: IFM
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on LK3122 . Santa Clara Systems carries 2,078 items from Efector.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
