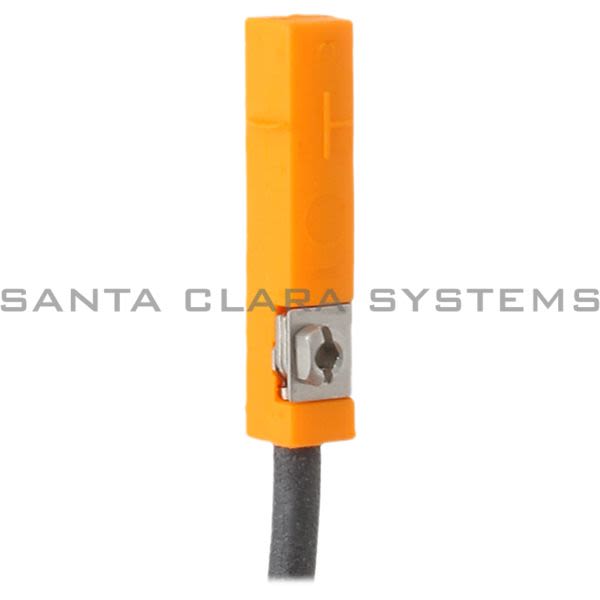

• Efector MK5101 T-slot Cylinder Sensor | MKT3028BBPKG/G/0.3M/ZH/AS Product Image

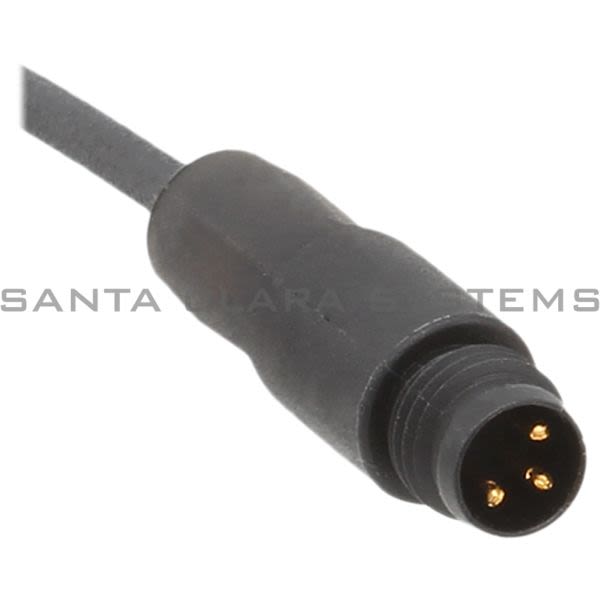

  • Efector MK5101 T-slot Cylinder Sensor | MKT3028BBPKG/G/0.3M/ZH/AS Product Image

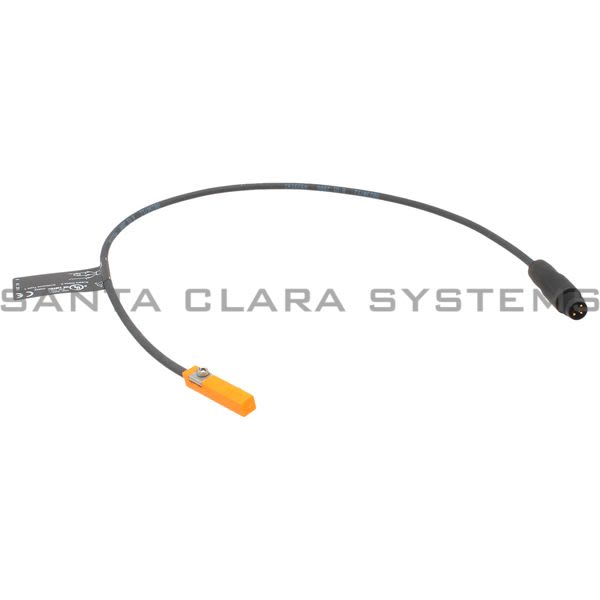

  • Efector MK5101 T-slot Cylinder Sensor | MKT3028BBPKG/G/0.3M/ZH/AS Product Image

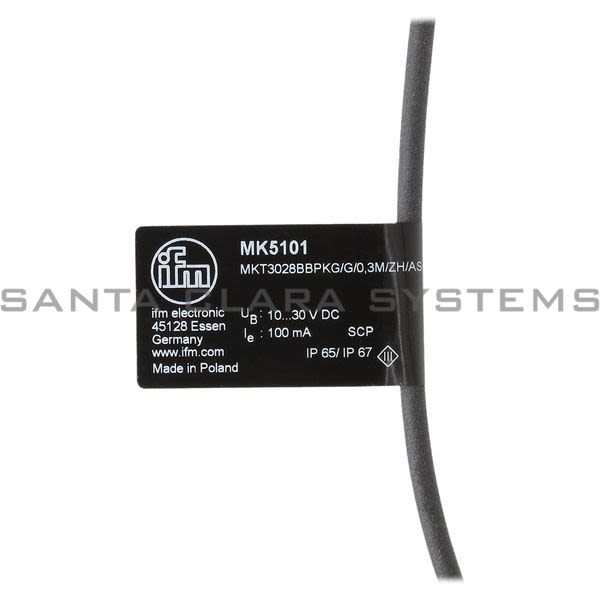

  • Efector MK5101 T-slot Cylinder Sensor | MKT3028BBPKG/G/0.3M/ZH/AS Product Image
  • Efector MK5101 Barcode

MK5101

Product Summary:

  • Electrical Design: DC PNP
  • Output Function: Normally Open
  • Mounting: flush mountable
  • Material: housing: PA; Fastening clamp: stainless steel
  • Operating Voltage [V]: 10...30 DC; cULus - Class 2 source required
Get a Quote

Current response time:

By 5AM PT on Monday
  • Description: T-slot Cylinder Sensor | MKT3028BBPKG/G/0.3M/ZH/AS
  • Electrical Design: DC PNP
  • Output Function: Normally Open
  • Mounting: flush mountable
  • Material: housing: PA; Fastening clamp: stainless steel
  • Operating Voltage [V]: 10...30 DC; cULus - Class 2 source required
  • Ambient Temperature [C]: -25...85
  • Alternate Manufacturer Name: IFM
  • Dimensions [mm]: 25 x 5 x 6.5
  • Current consumption [mA]: < 10
  • Protection class: III
  • Reverse polarity protection: yes
  • Max. power-on delay time [ms]: 30
  • Max. voltage drop switching output DC [V]: 2.5
  • Permanent current rating of switching output DC [mA]: 100
  • Switching frequency DC [Hz]: 10000
  • Short-circuit protection: yes
  • Overload protection: yes
  • Magnetic sensitivity [mT]: 2.8
  • Travel speed [m/s]: > 10
  • Hysteresis [mm]: < 1.5
  • Repeatability [mm]: < 0.2
  • Protection: IP 65; IP 67
  • EMC: EN 61000-4-2 ESD - CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 10 V EN 55011 class B
  • MTTF [years]: 3694
  • UL approval: UL approval number C003
  • Weight [g]: 12.1
  • Type of mounting: fastening clamp with combined slot / hexagon socket, width across flats 1.5
  • Cylinder type: T-slot cylinders
  • Display: Switching status 1 x LED, yellow
  • Accessories (supplied): rubber memory stop: 1 cable clip: 1
  • Pack quantity: 1 pcs.
  • Connection: Cable: 0.3 m, PUR
  • Connector: 1 x M8; Locking: snap-fit
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on MK5101 . Santa Clara Systems carries 2,078 items from Efector.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
