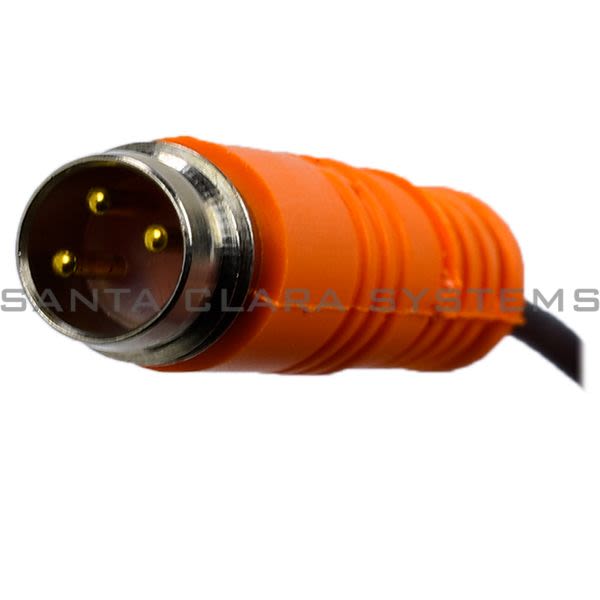

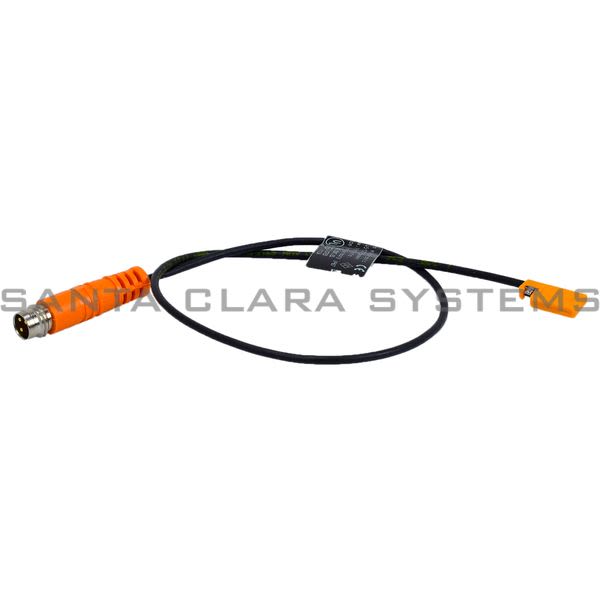

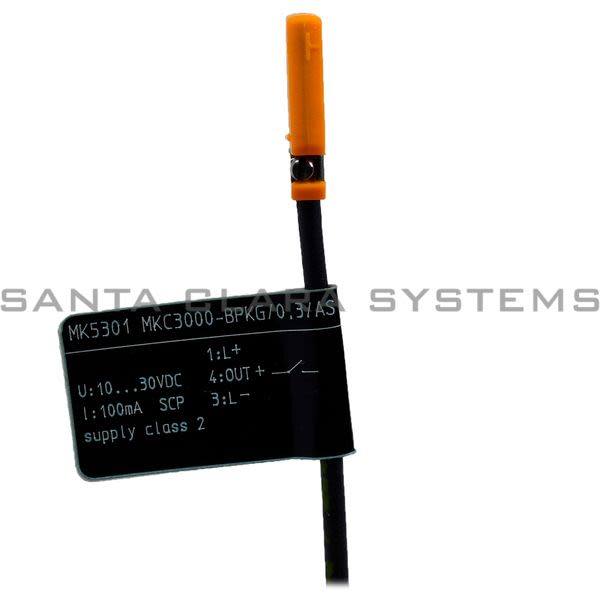

• Efector MK5301 Cylinder Sensor | MKC3028-BPKG/G/0.3M/ZH/AS Product Image
  • Efector MK5301 Cylinder Sensor | MKC3028-BPKG/G/0.3M/ZH/AS Product Image
  • Efector MK5301 Cylinder Sensor | MKC3028-BPKG/G/0.3M/ZH/AS Product Image
  • Efector MK5301 Barcode

MK5301

Product Summary:

  • Electrical Design: DC PNP
  • Output Function: Normally Open
  • Operating Voltage: 10 to 30 DC; cULus - Class 2 source required
  • Mounting: non-flush mountable
  • Material: housing: PA; Fastening clamp: stainless steel
Get a Quote

Current response time:

By 5AM PT on Monday
  • Description: Cylinder Sensor | MKC3028-BPKG/G/0.3M/ZH/AS
  • Electrical Design: DC PNP
  • Output Function: Normally Open
  • Operating Voltage: 10 to 30 DC; cULus - Class 2 source required
  • Mounting: non-flush mountable
  • Material: housing: PA; Fastening clamp: stainless steel
  • Magnetic Sensitivity [mT]: 2.8
  • Ambient Temperature [C]: -25 to 85
  • Alternate Manufacturer Name: IFM
  • Dimensions [mm]: 17.5 x 2.8 x 7.7
  • Operating voltage [V]: 10...30 DC; (cULus - Class 2 source required)
  • Current consumption [mA]: < 10
  • Protection class: III
  • Reverse polarity protection: yes
  • Max. power-on delay time [ms]: 30
  • Max. voltage drop switching output DC [V]: 2.5
  • Permanent current rating of switching output DC [mA]: 100
  • Switching frequency DC [Hz]: 10000
  • Short-circuit protection: yes
  • Overload protection: yes
  • Travel speed [m/s]: > 10
  • Hysteresis [mm]: 1.5
  • Repeatability [mm]: < 0.2
  • Protection: IP 65; IP 67
  • EMC: EN 61000-4-2 ESD - CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 10 V EN 55011 class B
  • MTTF [years]: 3694
  • UL approval: UL approval number C008
  • Weight [g]: 17.4
  • Cylinder type: C-slot cylinders
  • Display: Switching status 1 x LED, yellow
  • Pack quantity: 1 pcs.
  • Connection: Cable: 0.3 m, PUR Connector: 1 x M8; Locking: snap-fit
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on MK5301 . Santa Clara Systems carries 2,078 items from Efector.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
