O1D102

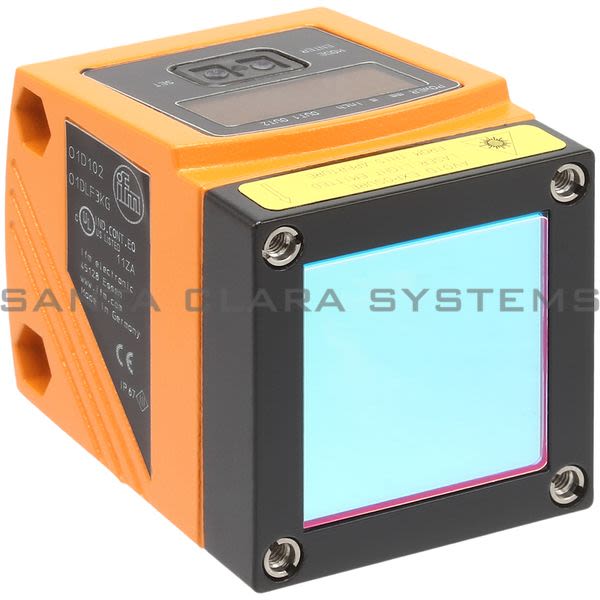

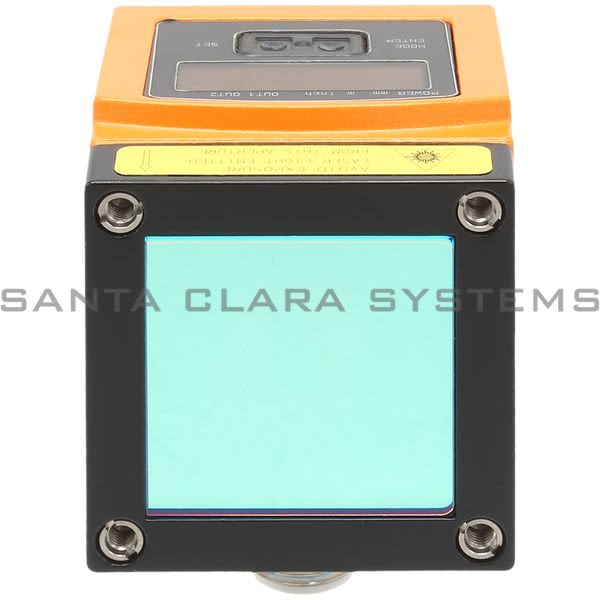

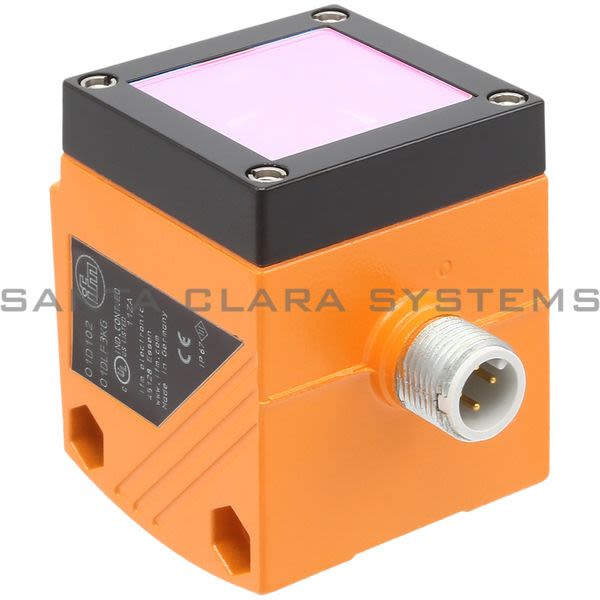

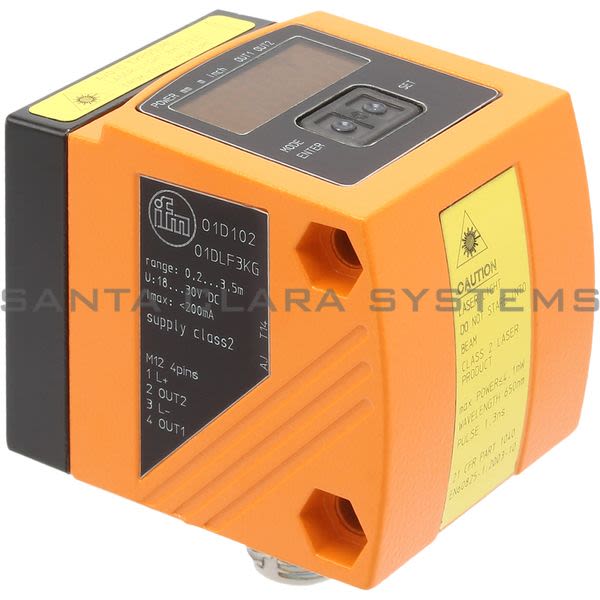

Efector - Photoelectric Sensor | O1DLF3KG

Current response time:

5 Minutes 9 Seconds

Description: Photoelectric Sensor | O1DLF3KG
Electrical Design: Pnp
Output Function: Normally Open / Closed; (Programmable)
Material: Housing: Diecast Zinc; Front Lens: Glass; Led Window: Pc
Operating Voltage [V]: 18...30 Dc
Current Consumption [Ma]: < 150
Protection Class: Iii
Reverse Polarity Protection: Yes
Typ. Lifetime [H]: 50000
Number Of Inputs And Outputs: Number Of Digital Outputs: 2; Number Of Analog Outputs: 1
Total Number Of Outputs: 2
Number Of Digital Outputs: 2
Max. Current Load Per Output [Ma]: 200
Number Of Analog Outputs: 1
Analog Current Output [Ma]: 4...20; (Iec 61131-2)
Max. Load [?]: 250
Analog Voltage Output [V]: 0...10; (Iec 61131-2)
Min. Load Resistance [?]: 5000
Short-Circuit Protection: Yes
Type Of Short-Circuit Protection: Yes (Non-Latching)
Overload Protection: Yes
Max. Light Spot Width [Mm]: 6
Max. Light Spot Height [Mm]: 6
Light Spot Dimensions Refer To: 3,5 M
Background Suppression [M]: 0...4

Measuring Range [M]: 0.2...3.5; (Black Glossy Surfaces)
Sampling Rate [Hz]: 1...50; (Preset: 5)
Communication Interface: Io-Link
Transmission Type: Com2 (38.4 Kbaud)
Io-Link Revision: 1.1
Sdci Standard: Iec 61131-9
Io-Link Device Id: 808 D / 00 03 28 H
Profiles: Smart Sensor: Sensor Identification; Binary Data Channel; Process Value; Sensor Diagnosis
Sio Mode: Yes
Required Master Port Class: A
Process Data Analogue: 2
Process Data Binary: 3
Min. Process Cycle Time [Ms]: 6
Ambient Temperature [C]: -10...60
Protection: Ip 67
Emc: En 60947-5-2
Laser Protection Class: 2
Housing: Rectangular
Dimensions [Mm]: 59 X 42 X 52
Lens Alignment: Side Sensing
Display: Switching Status 2 X Led, Yellow Power Led, Green Distance, Programming Alphanumeric Display, 4-Digit
Accessories (Optional): Protective Cover, E21133
Connection: Connector: 1 X M12
Alternate Manufacturer Name: IFM
