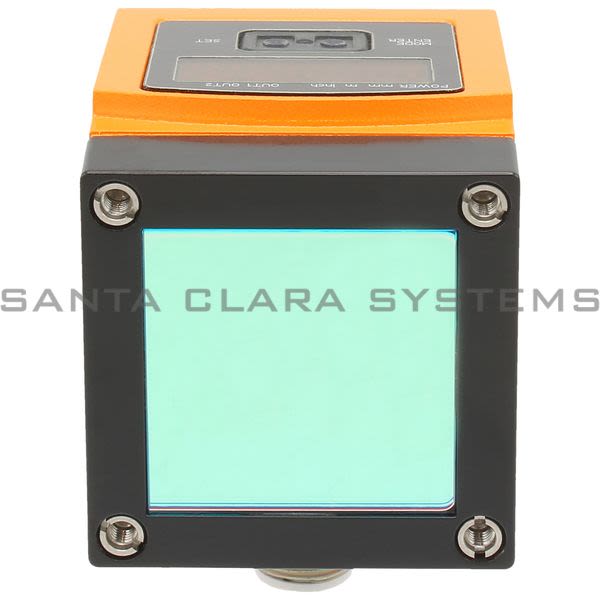

• Efector O1D155 Distance Sensor | O1DLF3KG/IO-LINK Product Image

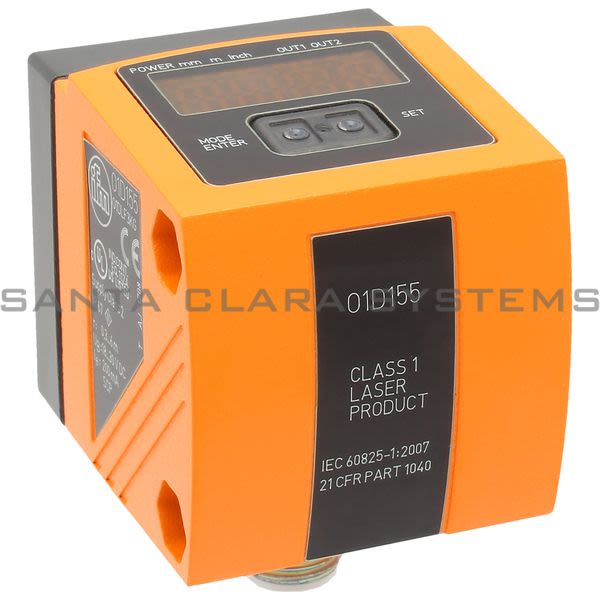

  • Efector O1D155 Distance Sensor | O1DLF3KG/IO-LINK Product Image

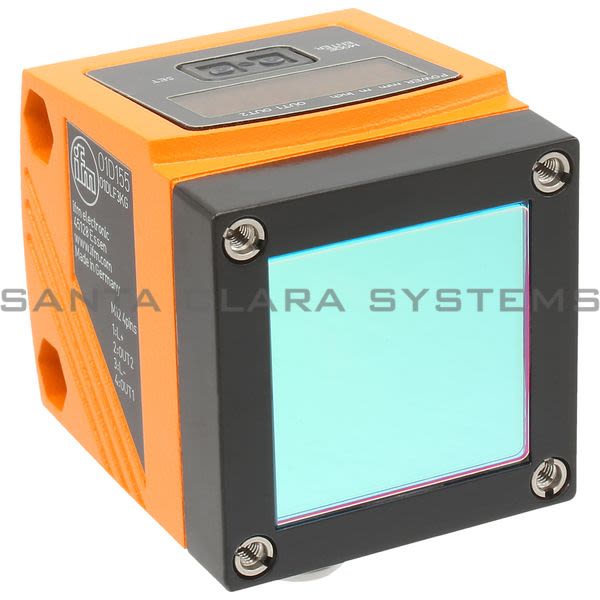

  • Efector O1D155 Distance Sensor | O1DLF3KG/IO-LINK Product Image

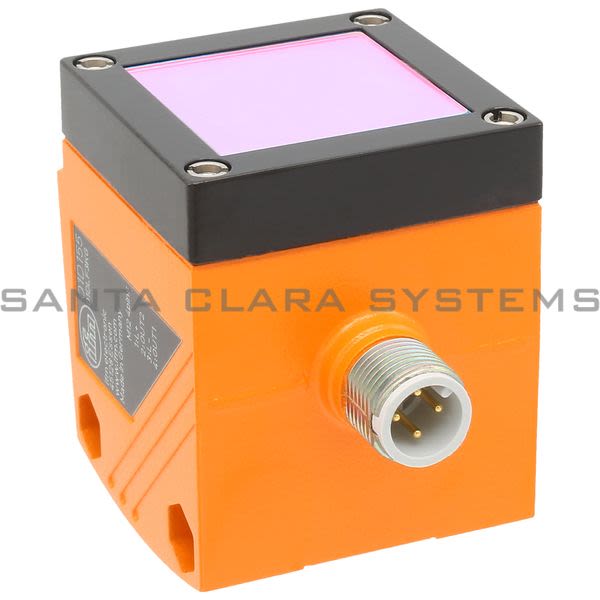

  • Efector O1D155 Distance Sensor | O1DLF3KG/IO-LINK Product Image

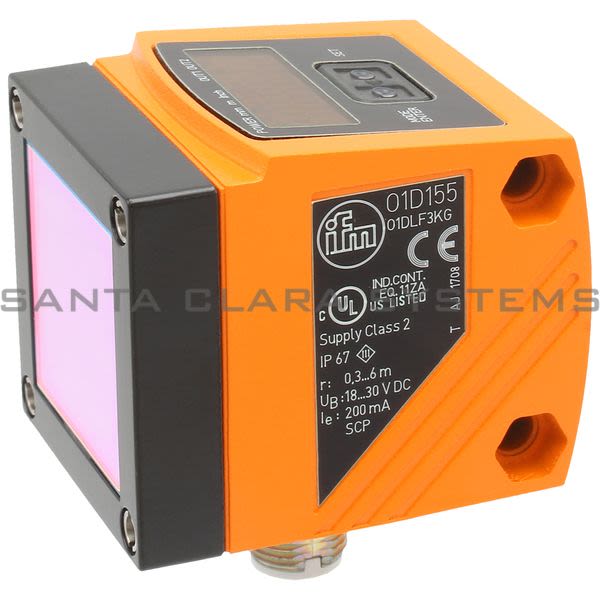

  • Efector O1D155 Distance Sensor | O1DLF3KG/IO-LINK Product Image
  • Efector O1D155 Barcode

O1D155

Product Summary:

  • Electrical Design: Pnp
  • Output Function: Normally Open / Closed; (Programmable)
  • Material: Housing: Diecast Zinc; Front Lens: Glass; Led Window: Pc
  • Operating Voltage [V]: 18...30 Dc
  • Current Consumption [Ma]: < 150
Get a Quote

Current response time:

By 5AM PT on Tuesday
  • Description: Distance Sensor | O1DLF3KG/IO-LINK
  • Electrical Design: Pnp
  • Output Function: Normally Open / Closed; (Programmable)
  • Material: Housing: Diecast Zinc; Front Lens: Glass; Led Window: Pc
  • Operating Voltage [V]: 18...30 Dc
  • Current Consumption [Ma]: < 150
  • Protection Class: Iii
  • Reverse Polarity Protection: Yes
  • Type Of Light: Red Light
  • Wave Length [Nm]: 650
  • Typ. Lifetime [H]: 50000
  • Number Of Inputs And Outputs: Number Of Digital Outputs: 2; Number Of Analog Outputs: 1
  • Total Number Of Outputs: 2
  • Number Of Digital Outputs: 2
  • Max. Current Load Per Output [Ma]: 200
  • Number Of Analog Outputs: 1
  • Analog Current Output [Ma]: 4...20; (Iec 61131-2)
  • Max. Load [?]: 250
  • Analog Voltage Output [V]: 0...10; (Iec 61131-2)
  • Min. Load Resistance [?]: 5000
  • Short-Circuit Protection: Yes
  • Type Of Short-Circuit Protection: Yes (Non-Latching)
  • Overload Protection: Yes
  • Max. Light Spot Width [Mm]: 8
  • Max. Light Spot Height [Mm]: 8
  • Light Spot Dimensions Refer To: 6 M
  • Background Suppression [M]: 6...100
  • Measuring Range [M]: 0.3...6; (White Paper 200 X 200 Mm)
  • Sampling Rate [Hz]: 1...33
  • Communication Interface: Io-Link
  • Transmission Type: Com2 (38,4 Kbaud)
  • Io-Link Revision: 1.1
  • Sdci Standard: Iec 61131-9
  • Io-Link Device Id: 812 D / 00 03 2 Ch
  • Profiles: Smart Sensor: Sensor Identification; Binary Data Channel, Process Value; Sensor Diagnosis
  • Sio Mode: Yes
  • Required Master Port Class: A
  • Process Data Analogue: 2
  • Process Data Binary: 2
  • Min. Process Cycle Time [Ms]: 6
  • Ambient Temperature [C]: -10...60
  • Protection: Ip 67
  • Emc: En 60947-5-2
  • Laser Protection Class: 1
  • Housing: Rectangular
  • Dimensions [Mm]: 59 X 42 X 52
  • Display: Switching Status 2 X Led, Yellow Power Led, Green Distance, Programming Alphanumeric Display, 4-Digit
  • Accessories (Optional): Protective Cover, E21133
  • Connection: Connector: 1 X M12
  • Alternate Manufacturer Name: IFM
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on O1D155 . Santa Clara Systems carries 2,078 items from Efector.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
