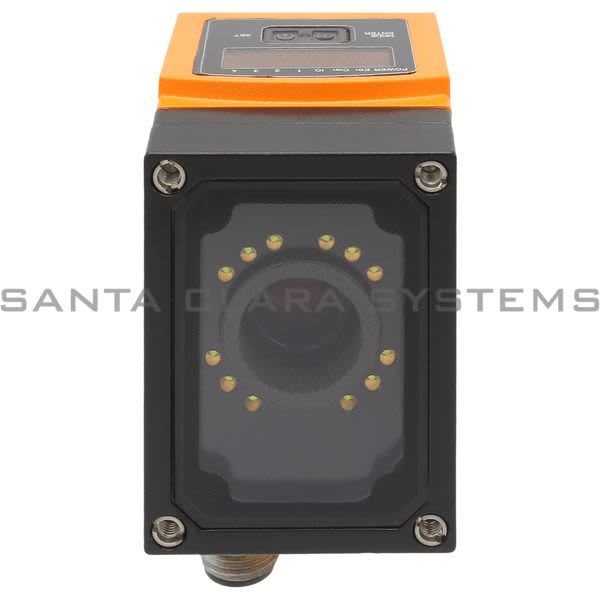

• Efector O2V104 Object Inspection Sensor | O2VWRPKG/O/V/GM/E1/E2/T Product Image

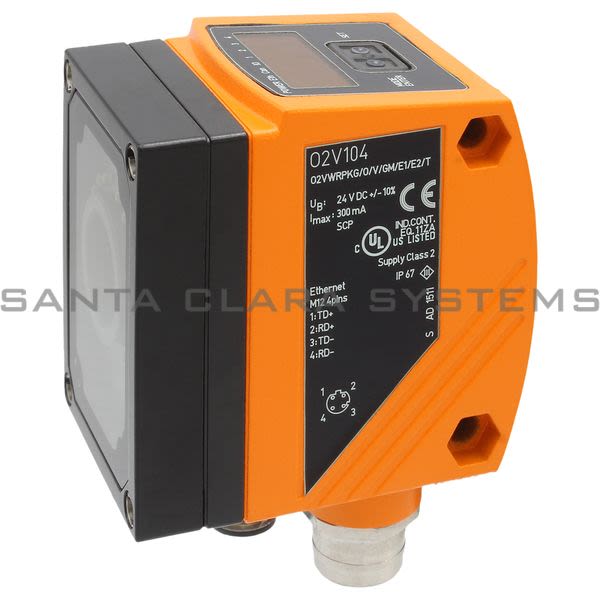

  • Efector O2V104 Object Inspection Sensor | O2VWRPKG/O/V/GM/E1/E2/T Product Image

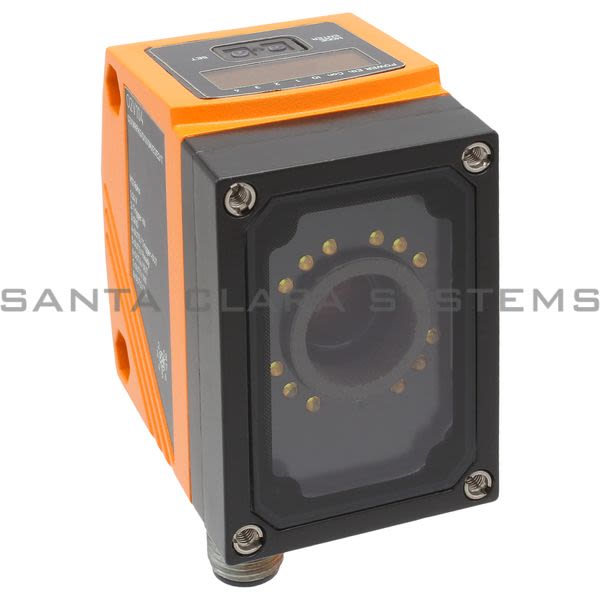

  • Efector O2V104 Object Inspection Sensor | O2VWRPKG/O/V/GM/E1/E2/T Product Image

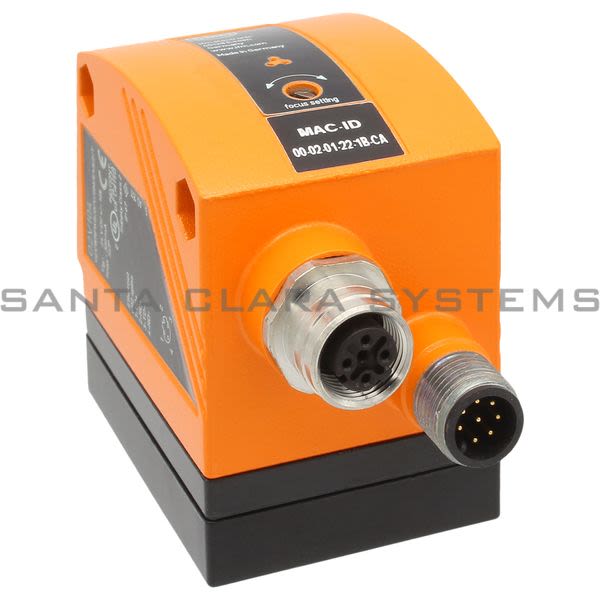

  • Efector O2V104 Object Inspection Sensor | O2VWRPKG/O/V/GM/E1/E2/T Product Image
  • Efector O2V104 Barcode

O2V104

Product Summary:

  • Output Function: 24 V Pnp
  • Material: Housing: Diecast Zinc Powder-Coated; Front Lens: Glass; Led Window: Pc
  • Operating Voltage Tolerance [%]: 10
  • Operating Voltage [V]: 24 Dc
  • Current Consumption [Ma]: 300
Get a Quote

Current response time:

By 5AM PT on Tuesday
  • Description: Object Inspection Sensor | O2VWRPKG/O/V/GM/E1/E2/T
  • Output Function: 24 V Pnp
  • Material: Housing: Diecast Zinc Powder-Coated; Front Lens: Glass; Led Window: Pc
  • Operating Voltage Tolerance [%]: 10
  • Operating Voltage [V]: 24 Dc
  • Current Consumption [Ma]: 300
  • Protection Class: Iii
  • Reverse Polarity Protection: Yes
  • Type Of Light: White Light
  • Number Of Inputs And Outputs: Number Of Digital Inputs: 2; Number Of Digital Outputs: 5
  • Number Of Digital Inputs: 2
  • Trigger: 24 V Pnp (Iec 61131-2 Typ 1); Internal
  • Input Circuit Of Digital Inputs: 24 V Pnp; (Configurable; Iec 61131-2 Typ 1)
  • Total Number Of Outputs: 5
  • Number Of Digital Outputs: 5; (Configurable)
  • Max. Voltage Drop Switching Output Dc [V]: 2
  • Max. Current Load Per Output [Ma]: 100
  • Short-Circuit Protection: Yes
  • Overload Protection: Yes
  • Field Of View Size [Mm]: Operating Distance Field Of View Smallest Detectable Object Resolution 75 15 X 11 0,08 0,02 100 20 X 15 0,12 0,03 200 40 X 30 0,25 0,063 400 80 X 60 0,52 0,13 1000 200 X 150 1,25 0,313 2000 400 X 300 2,53 0,633
  • Image Resolution [Pixels]: 640 X 480
  • Max. Reading Rate [Hz]: 20
  • Parameter Setting Options: Via 2 Pushbuttons And 10-Segment Display Or Via Pc / Notebook With Operating Software
  • Communication Interface: Ethernet
  • Number Of Ethernet Interfaces: 1
  • Transmission Standard: 10Base-T; 100Base-Tx
  • Transmission Rate: 10; 100
  • Protocol: Tcp/Ip; Ethernet/Ip
  • Factory Settings: Ip Address: 192.168.0.59 Subnet Mask: 255.255.255.0 Gateway Ip Address: 192.168.0.201 Mac Address: See Type Label
  • Ambient Temperature [C]: -10...60
  • Storage Temperature [C]: -40...85
  • Protection: Ip 67
  • Emc: Radiation Of Interference En 61326 Noise Immunity En 61326
  • Shock Resistance: En 60947-5-2, 7.4.1 Iec 60068-2-27
  • Vibration Resistance: En 60947-5-2, 7.4.2 Iec 60028-2-6
  • Dimensions [Mm]: 60 X 42 X 59
  • At_Sensorart-Bildverarbeitung: Cmos Image Sensor Black/White
  • Display: Function 3 X Led, Green Switching Status 4 Led, Yellow 10-Segment Display, 4-Digit
  • Accessories (Optional): Operating Software Mounting Accessories
  • Alternate Manufacturer Name: IFM
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on O2V104 . Santa Clara Systems carries 2,078 items from Efector.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
