O4H500

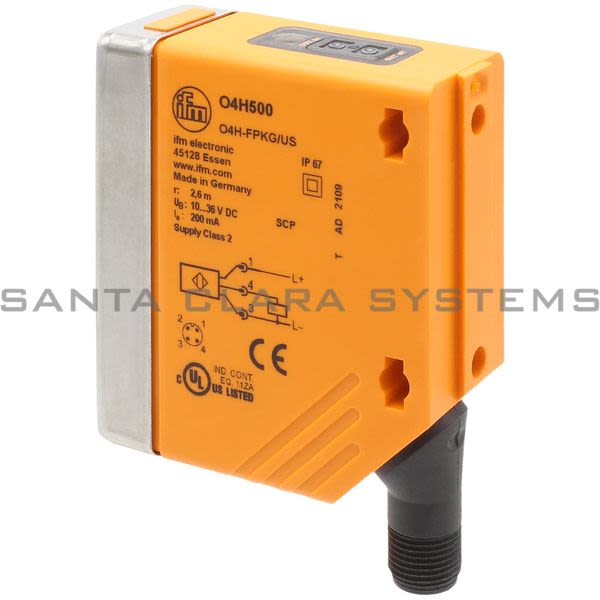

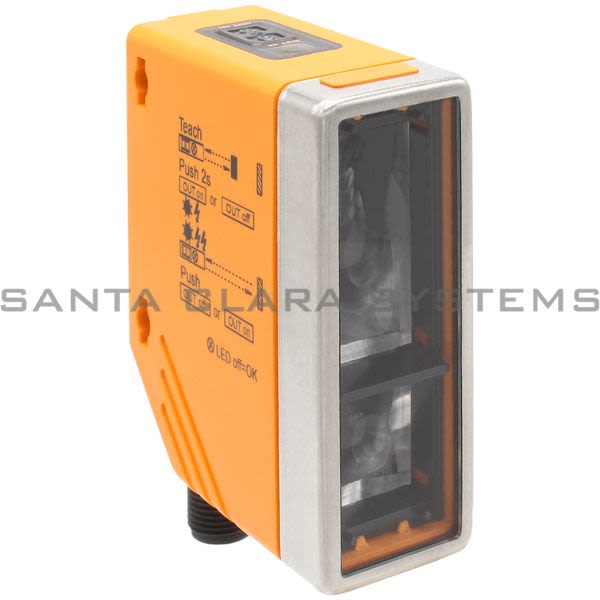

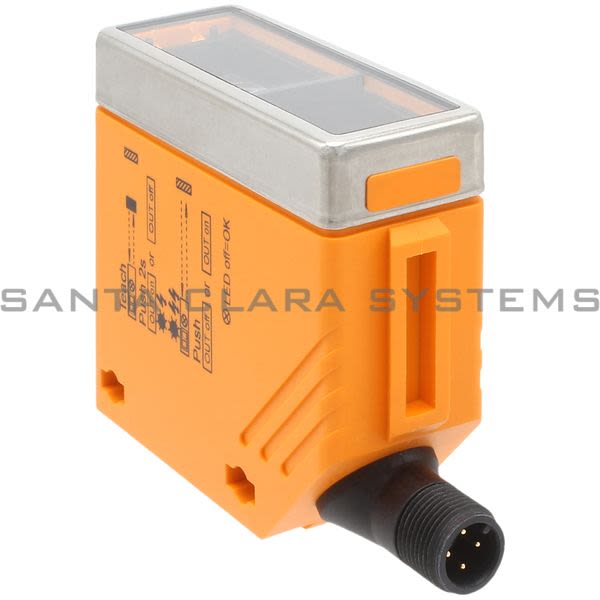

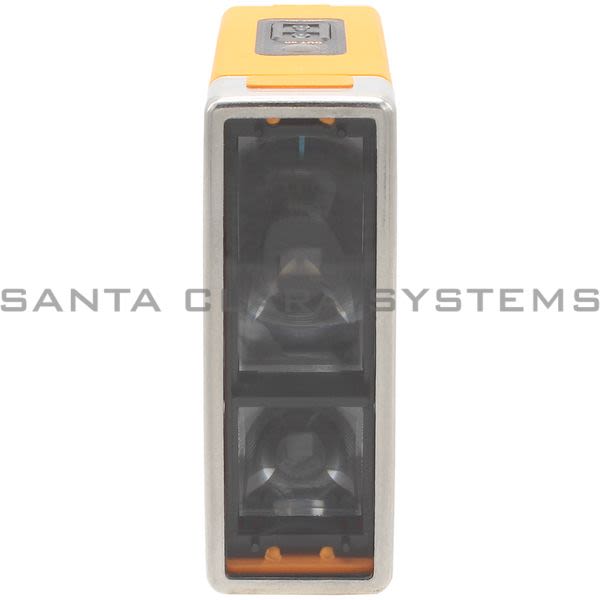

Efector - Diffuse Reflection Sensor | O4H-FPKG/US100

Current response time:

17 Minutes 20 Seconds

Description: Diffuse Reflection Sensor | O4H-FPKG/US100
Electrical design: PNP
Output function: Light-on/dark-on mode; (programmable)
Material: Housing: PA; Front framework: stainless steel; operator interface: TPE
Type of light: red light
Housing: Rectangular
Dimensions [mm]: 74.4 x 27 x 63.8
System: Background suppression
Function principle: Diffuse reflection sensor
Operating voltage [V]: 10...36 DC; (cULus - Class 2 source required)
Current consumption [mA]: 25
Protection class: II
Reverse polarity protection: Yes
Wave length [nm]: 624
Max. voltage drop switching output DC [V]: 2.5
Permanent current rating of switching output DC [mA]: 200
Switching frequency DC [Hz]: 1000
Short-circuit protection: yes
Type of short-circuit protection: Yes (non-latching)
Overload protection: yes

Range [mm]: 100...2600; (white paper 200 x 200 mm 90 % remission)
Range on white object (90 % remission) [mm]: 100...2600
Range on grey object (18 % remission) [mm]: 100...1300
Range on black object (6 % remission) [mm]: 100...900
Range adjustable: Yes
Max. light spot diameter [mm]: 50
Light spot dimensions refer to: Range
Background suppression available: Yes
Ambient temperature [C]: -25...60
Protection: IP 67
EMC: EN 60947-5-2
MTTF [years]: 355
Weight [g]: 126.5
Lens material: PMMA
Lens alignment: Side sensing
Display: Switching status 1 x LED, yellow
Teach function: Yes
Pack quantity: 1 pcs.
Connection: Connector: 1 x M12
