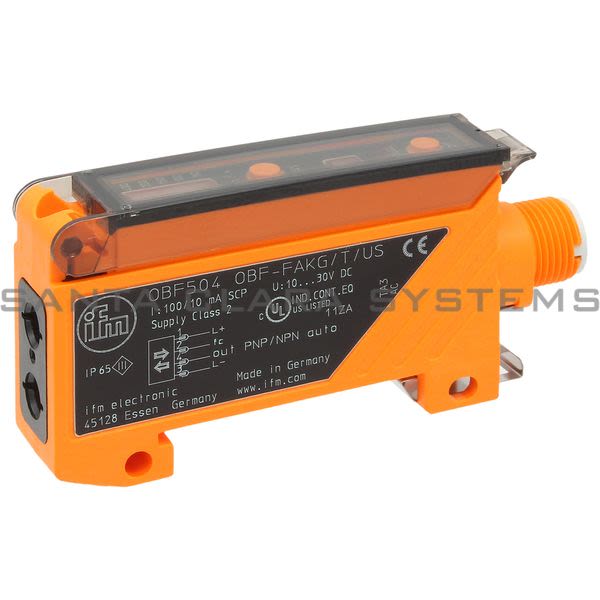

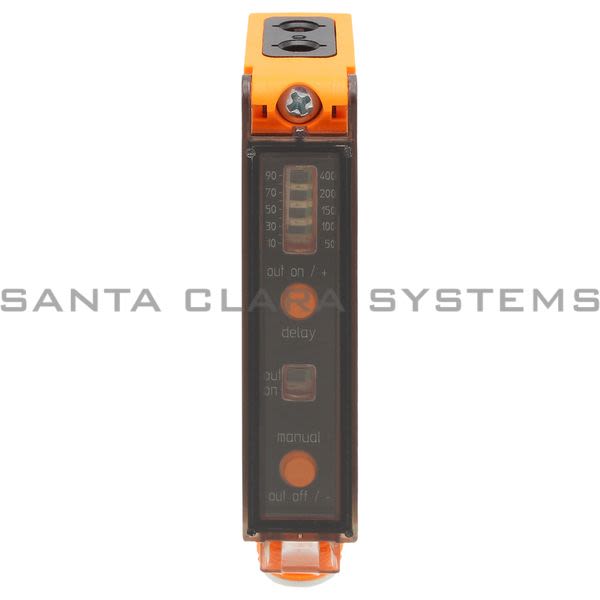

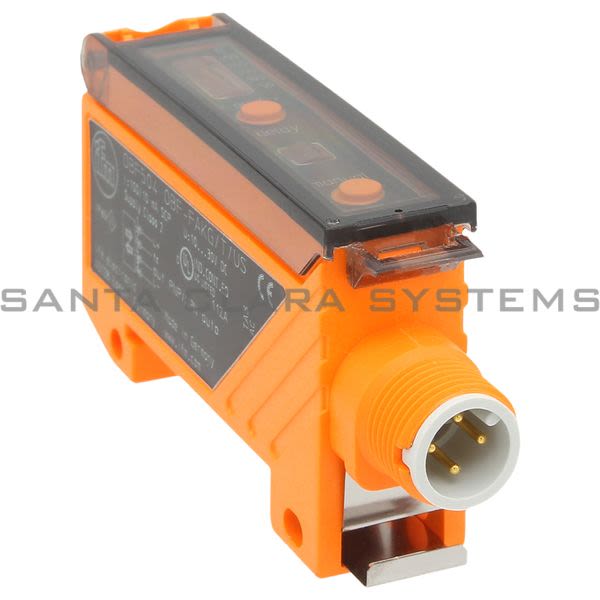

• Efector OBF504 Fiber Optic Amplifier | OBF-FAKG/T/US Product Image
  • Efector OBF504 Fiber Optic Amplifier | OBF-FAKG/T/US Product Image
  • Efector OBF504 Fiber Optic Amplifier | OBF-FAKG/T/US Product Image
  • Efector OBF504 Fiber Optic Amplifier | OBF-FAKG/T/US Product Image
  • Efector OBF504 Barcode

OBF504

Product Summary:

  • Electrical Design: Pnp/Npn; (Automatic Load Detection Pnp/Npn)
  • Output Function: Light-On/Dark-On Mode; (Programmable)
  • Material: Ppe Modified
  • Design: For Fibers With Metal Sheath Fe/Ft-50
  • Operating Voltage [V]: 10...30 Dc
Get a Quote

Current response time:

By 5AM PT on Tuesday
  • Description: Fiber Optic Amplifier | OBF-FAKG/T/US
  • Electrical Design: Pnp/Npn; (Automatic Load Detection Pnp/Npn)
  • Output Function: Light-On/Dark-On Mode; (Programmable)
  • Material: Ppe Modified
  • Design: For Fibers With Metal Sheath Fe/Ft-50
  • Operating Voltage [V]: 10...30 Dc
  • Current Consumption [Ma]: < 50
  • Protection Class: Iii
  • Reverse Polarity Protection: Yes
  • Type Of Light: Red Light
  • Max. Voltage Drop Switching Output Dc [V]: 2.5
  • Function Check Output: Yes
  • Max. Voltage Drop Of Function Check Output [V]: 2.5
  • Max. Current Load For Function Check Output [Ma]: 10
  • Permanent Current Rating Of Switching Output Dc [Ma]: 100
  • Switching Frequency Dc [Hz]: 1000
  • Short-Circuit Protection: Yes
  • Type Of Short-Circuit Protection: Yes (Non-Latching)
  • Overload Protection: Yes
  • Time Function [S]: 0.001...0.09
  • Range [M]: 0...1; (Through-Beam Sensor)
  • Range [Mm]: 0...150; (Diffuse Reflection Sensor)
  • Range Adjustable: Yes
  • Ambient Temperature [C]: -25...60
  • Protection: Ip 65
  • Emc: En 60947-5-2
  • Housing: Rectangular
  • Dimensions [Mm]: 36 X 15 X 60
  • Lens Alignment: Side Sensing
  • Display: Switching Status 1 X Led, Yellow Power 1 X Led, Green Unsafe Zone 1 X Led, Red Excess Gain 4 X Led, Green
  • Connection: Connector: 1 X M12
  • Alternate Manufacturer Name: IFM
