OF5060

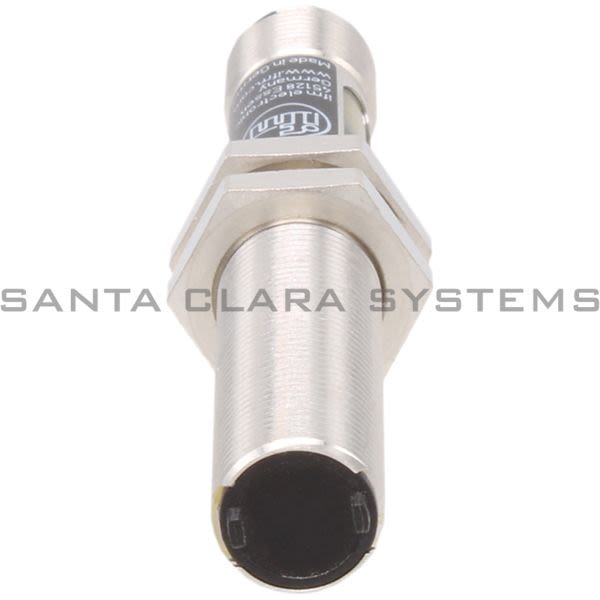

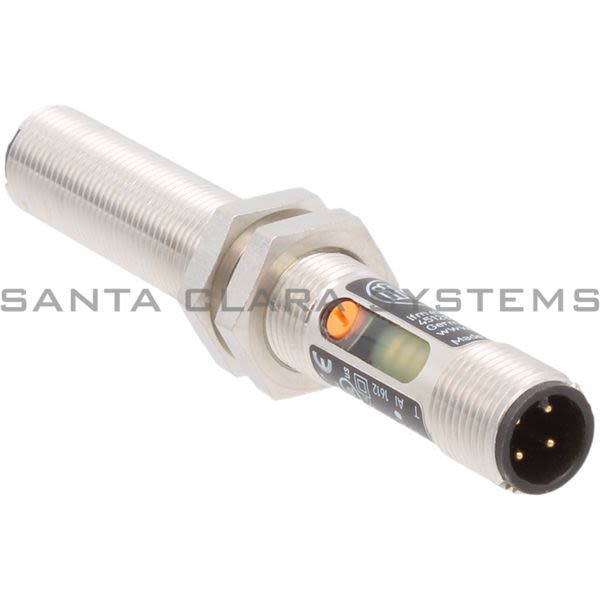

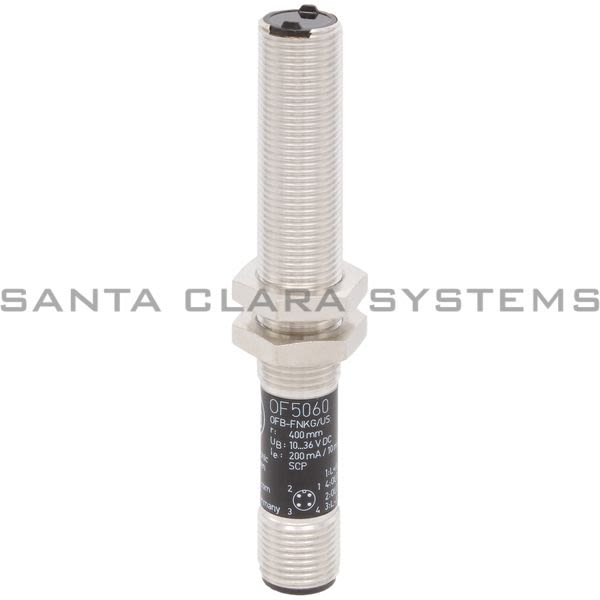

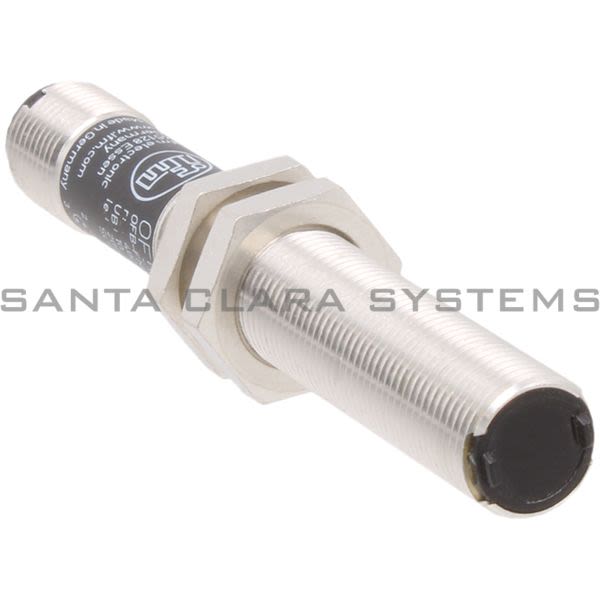

Efector - Diffuse Sensor | OFB-FNKG/US-100

Current response time:

11 Minutes 15 Seconds

Description: Diffuse Sensor | OFB-FNKG/US-100
Electrical Design: Npn
Output Function: Light-On/Dark-On Mode; (Programmable)
Material: Brass White Bronze Coated
Function Principle: Diffuse Reflection Sensor
Operating Voltage [V]: 10...36 Dc
Current Consumption [Ma]: < 35
Protection Class: Ii
Reverse Polarity Protection: Yes
Type Of Light: Infrared Light
Wave Length [Nm]: 880
Max. Voltage Drop Switching Output Dc [V]: 2.5
Function Check Output: Yes
Max. Voltage Drop Of Function Check Output [V]: 3.5
Max. Current Load For Function Check Output [Ma]: 10
Permanent Current Rating Of Switching Output Dc [Ma]: 200
Switching Frequency Dc [Hz]: 320
Short-Circuit Protection: Yes

Type Of Short-Circuit Protection: Yes (Non-Latching)
Overload Protection: Yes
Range [Mm]: 1...400; (White Paper 200 X 200 Mm)
Range Adjustable: Yes
Max. Light Spot Diameter [Mm]: 185
Light Spot Dimensions Refer To: At Maximum Range
Ambient Temperature [C]: -25...60
Protection: Ip 65
Emc: En 60947-5-2 En 55011 Class B
Housing: Threaded Type
Dimensions [Mm]: M12 X 1 / L = 74
Thread Designation: M12 X 1
Lens Material: Pmma
Display: Switching Status 1 X Led, Yellow Power 1 X Led, Green Function 1 X Led, Red
Accessories (Supplied): Lock Nuts: 2 X Screwdrivers
Connection: Connector: 1 X M12
Alternate Manufacturer Name: IFM
