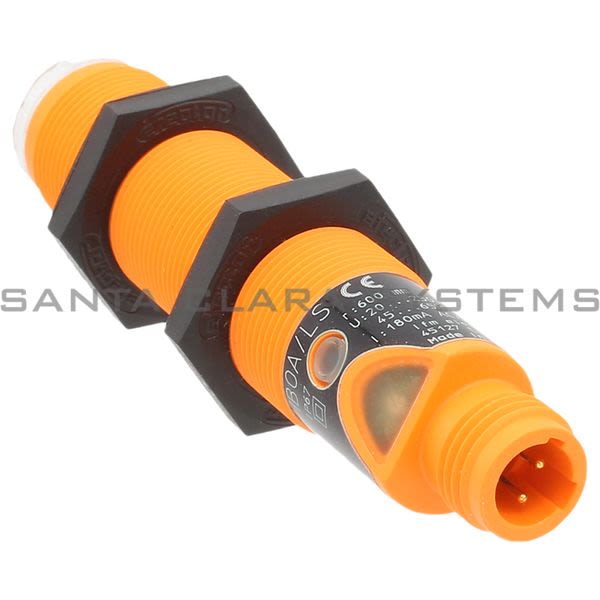

• Efector OG0035 Diffuse Sensor | OGT-HBOA/LS-100-GK Product Image

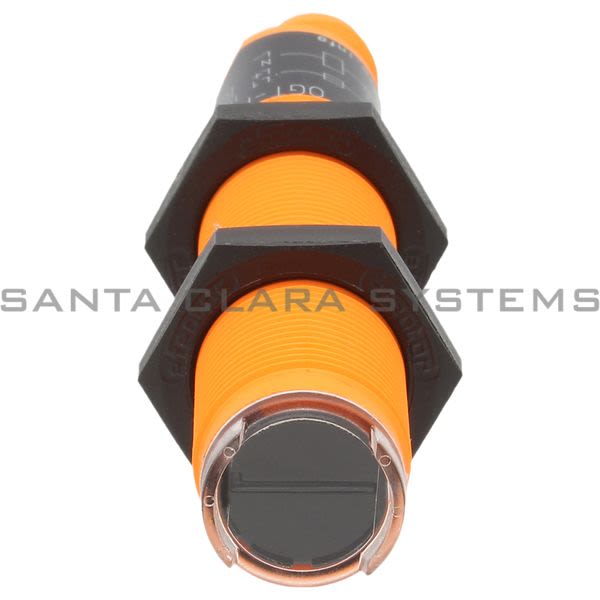

  • Efector OG0035 Diffuse Sensor | OGT-HBOA/LS-100-GK Product Image

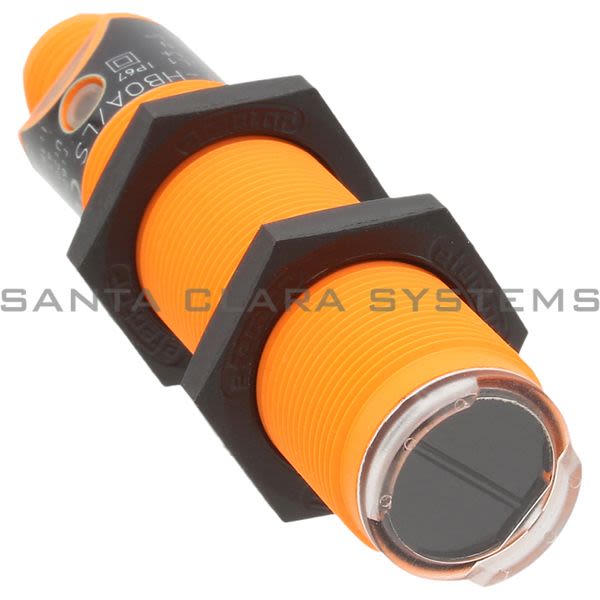

  • Efector OG0035 Diffuse Sensor | OGT-HBOA/LS-100-GK Product Image

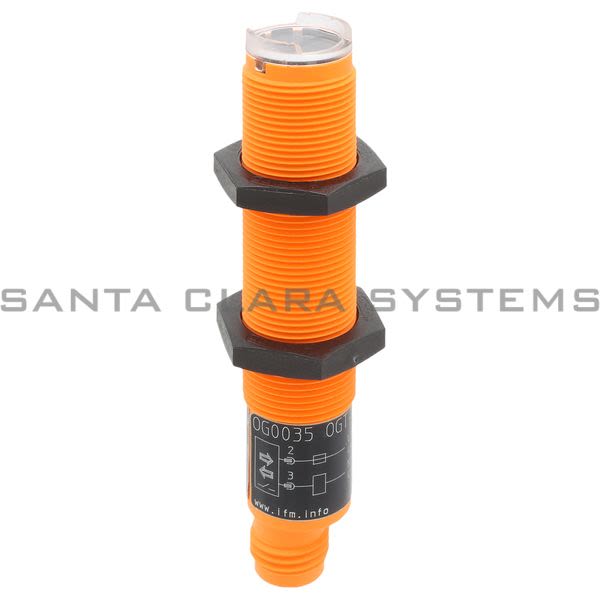

  • Efector OG0035 Diffuse Sensor | OGT-HBOA/LS-100-GK Product Image
  • Efector OG0035 Barcode

OG0035

Product Summary:

  • Electrical Design: AC/DC
  • Output Function: Light-on Mode
  • Ambient temperature [C]: -25 to 80
  • Protection: IP 67
  • Frequency AC [Hz]: 47...63
Let Us Find It

Current response time:

By 5AM PT on Tuesday
  • Description: Diffuse Sensor | OGT-HBOA/LS-100-GK
  • Electrical Design: AC/DC
  • Output Function: Light-on Mode
  • Ambient temperature [C]: -25 to 80
  • Protection: IP 67
  • Frequency AC [Hz]: 47...63
  • Wave Length [nm]: 880
  • Range [mm]: 1...600; (white paper 200 x 200 mm 90 % remission)
  • Alternate Manufacturer Name: IFM
  • Type of light: Infrared light
  • Housing: Threaded type
  • Dimensions [mm]: M18 x 1 / L = 76
  • Function principle: Diffuse reflection sensor
  • Operating voltage [V]: 20...250 AC/DC
  • Protection class: II
  • Reverse polarity protection: no
  • Max. voltage drop switching output DC [V]: 8
  • Max. voltage drop switching output AC [V]: 8
  • Minimum load current [mA]: 5
  • Max. leakage current [mA]: 1.7
  • Permanent current rating of switching output AC [mA]: 90; (180 (...40 C))
  • Permanent current rating of switching output DC [mA]: 90; (180 (...40 C))
  • Short-time current rating of switching output [mA]: 600; (20 ms / 0,5 Hz)
  • Switching frequency AC [Hz]: 25
  • Switching frequency DC [Hz]: 25
  • Short-circuit proof: no
  • Overload protection: no
  • Range adjustable: yes
  • Max. light spot diameter [mm]: 169
  • Weight [g]: 46
  • Lens material: PMMA
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on OG0035 . Santa Clara Systems carries 2,078 items from Efector.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
