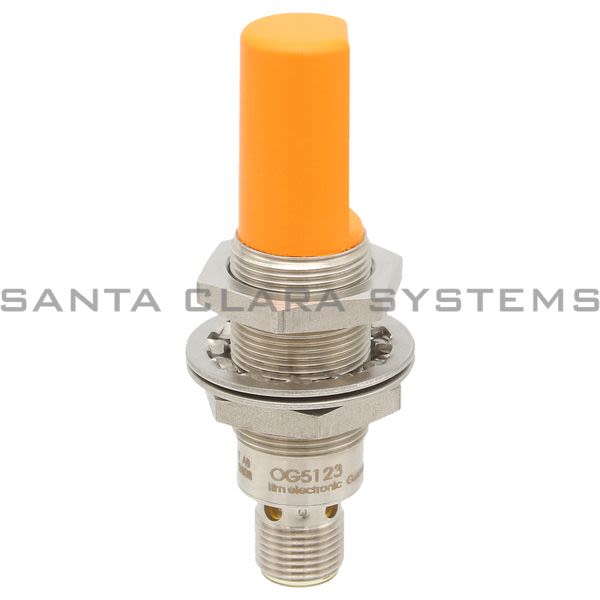

• Efector OG5123 Photoelectric Sensor | OGH-HPKG/US/90°/100MM Product Image

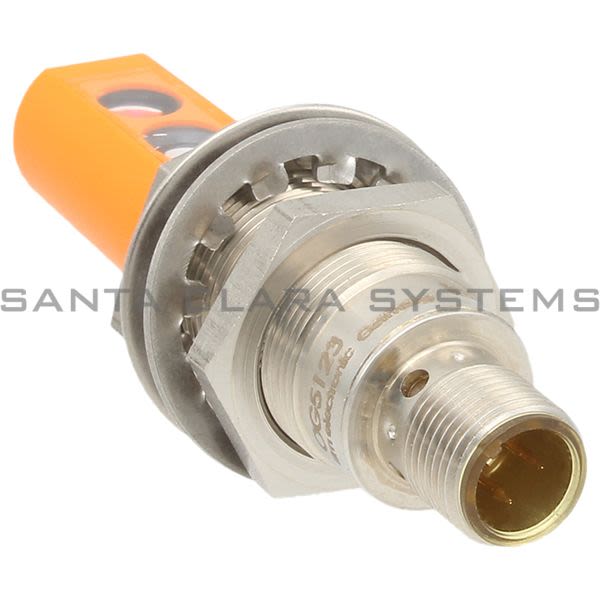

  • Efector OG5123 Photoelectric Sensor | OGH-HPKG/US/90°/100MM Product Image

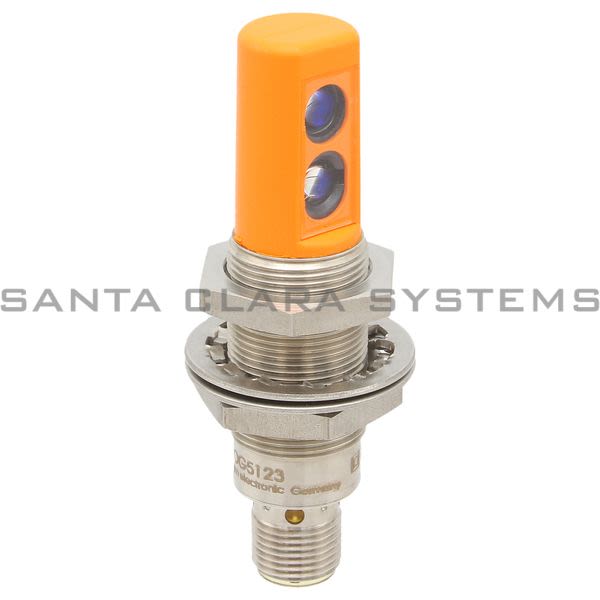

  • Efector OG5123 Photoelectric Sensor | OGH-HPKG/US/90°/100MM Product Image

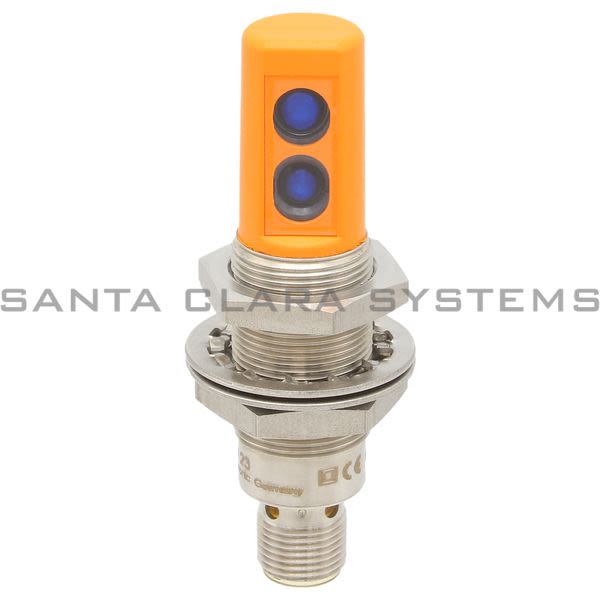

  • Efector OG5123 Photoelectric Sensor | OGH-HPKG/US/90°/100MM Product Image
  • Efector OG5123 Barcode

OG5123

Product Summary:

  • Electrical Design: Pnp
  • Output Function: Light-On Mode
  • Material: Stainless Steel; Abs
  • Function Principle: Diffuse Reflection Sensor
  • Operating Voltage [V]: 10...30 Dc; (Culus - Class 2 Source Required)
Get a Quote

Current response time:

16 Minutes 57 Seconds
  • Description: Photoelectric Sensor | OGH-HPKG/US/90°/100MM
  • Electrical Design: Pnp
  • Output Function: Light-On Mode
  • Material: Stainless Steel; Abs
  • Function Principle: Diffuse Reflection Sensor
  • Operating Voltage [V]: 10...30 Dc; (Culus - Class 2 Source Required)
  • Current Consumption [Ma]: 25
  • Protection Class: Ii
  • Reverse Polarity Protection: Yes
  • Type Of Light: Red Light
  • Wave Length [Nm]: 625
  • Max. Voltage Drop Switching Output Dc [V]: 2.5
  • Permanent Current Rating Of Switching Output Dc [Ma]: 200
  • Switching Frequency Dc [Hz]: 1000
  • Short-Circuit Protection: Yes
  • Type Of Short-Circuit Protection: Yes (Non-Latching)
  • Overload Protection: Yes
  • Range [Mm]: < 100; (White Paper 200 X 200 Mm 90 % Remission)
  • Range Adjustable: No
  • Max. Light Spot Diameter [Mm]: 16
  • Light Spot Dimensions Refer To: At Maximum Range
  • Background Suppression Available: Yes
  • Ambient Temperature [C]: -25...60
  • Protection: Ip 68
  • Emc: En 60947-5-2 En 55011 Class B
  • Housing: Threaded Type
  • Dimensions [Mm]: M18 X 1 / L = 65
  • Thread Designation: M18 X 1
  • Lens Material: Pmma
  • Display: Switching Status 1 X Led, Yellow Power 1 X Led, Green
  • Accessories (Supplied): Nuts: 2 X Lock Washers: 2 X
  • Connection: Connector: 1 X M12
  • Alternate Manufacturer Name: IFM
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on OG5123 . Santa Clara Systems carries 2,078 items from Efector.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
