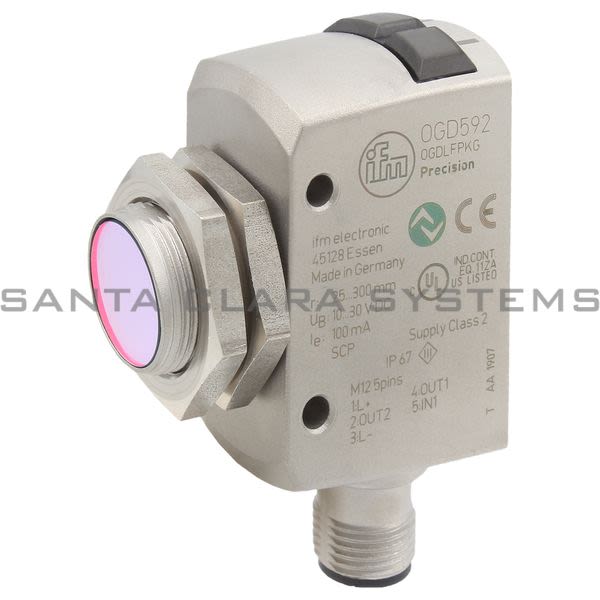

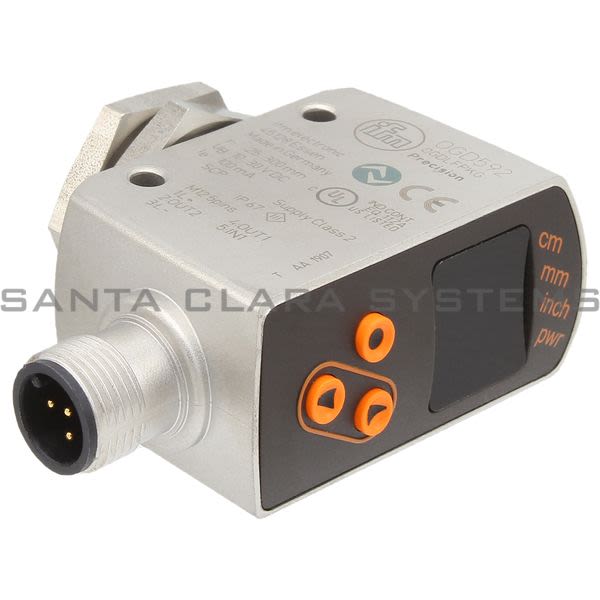

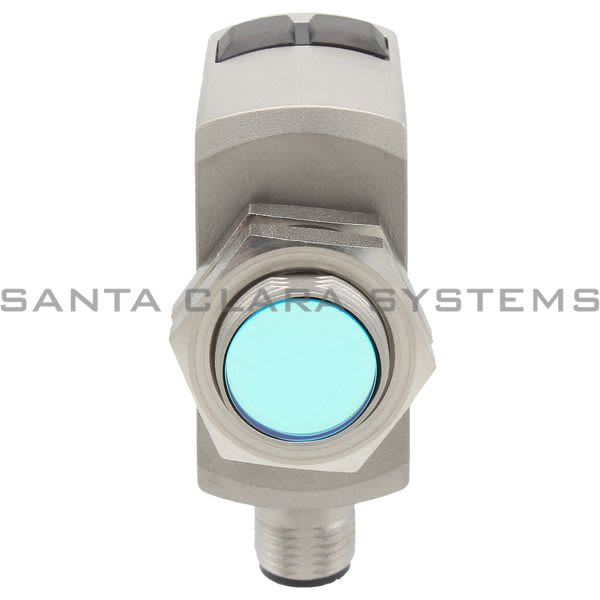

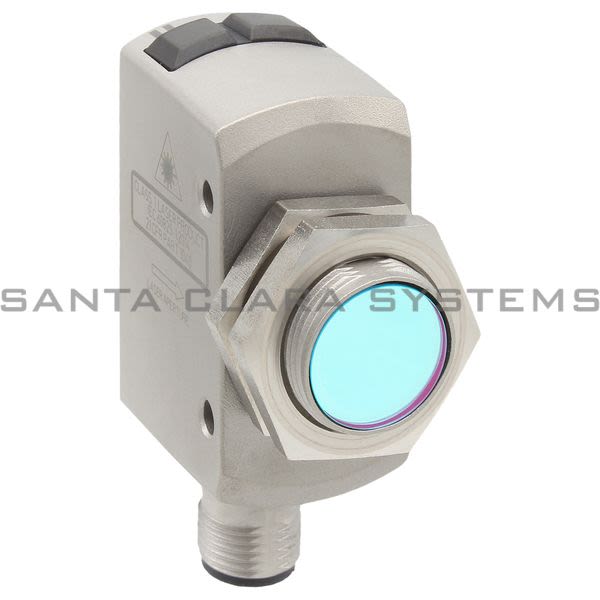

- Description: Laser Sensor | OGDLFPKG/IO-LINK/US
- Electrical Design: PNP
- OUTPUT FUNCTION: 2 X NORMALLY OPEN / NORMALLY CLOSED; (CONFIGURABLE)
- MATERIAL: HOUSING: STAINLESS STEEL (1.4404 / 316L); PPSU; ABS; PMMA; PBT PC; EPDM; FRONT LENS: GLASS
- Operating Voltage [V]: 10...30 DC; (cULus - Class 2 source required)
- Measuring Range [m]: 0.025...0.3
- Ambient Temperature [C]: -25...50
- Alternate Manufacturer Name: IFM
- TYPE OF LIGHT: RED LIGHT
- LASER PROTECTION CLASS: 1
- DIMENSIONS [MM]: 61.7 X 22.5 X 45.2
- APPLICATION [M]: 0.03...0.3
- CURRENT CONSUMPTION [MA]: < 75
- CURRENT CONSUMPTION REFERENCE VOLTAGE [V]: 24
- PROTECTION CLASS: III
- REVERSE POLARITY PROTECTION: YES
- WAVE LENGTH [NM]: 650
- TYP. LIFETIME [H]: 50000
- PERMANENT CURRENT RATING OF SWITCHING OUTPUT DC [MA]: 100; (PER OUTPUT)
- TYPE OF SHORT-CIRCUIT PROTECTION: YES (NON-LATCHING)
- OVERLOAD PROTECTION: YES
- MAX. LIGHT SPOT WIDTH [MM]: 3
- MAX. LIGHT SPOT HEIGHT [MM]: 3
- LIGHT SPOT DIMENSIONS REFER TO: AT MAXIMUM RANGE
- BACKGROUND SUPPRESSION [M]: 0.03...19.2
- SAMPLING RATE [HZ]: 33
- COMMUNICATION INTERFACE: IO-LINK
- TRANSMISSION TYPE: COM2 (38,4 KBAUD)
- IO-LINK REVISION: 1.1
- SDCI STANDARD: IEC 61131-9
- IO-LINK DEVICE ID: 00 03 F4 / 1012
- PROFILES: SMART SENSOR: SENSOR IDENTIFICATION; BINARY DATA CHANNEL; PROCESS VALUE; SENSOR DIAGNOSIS
- SIO MODE: YES
- REQUIRED MASTER PORT CLASS: A
- PROCESS DATA ANALOGUE: 2
- PROCESS DATA BINARY: 2
- MIN. PROCESS CYCLE TIME [MS]: 6
- STORAGE TEMPERATURE [C]: -30...80
- PROTECTION: IP 65; IP 67
- EMC: EN 60947-5-2
- EN 60947-5-2: 1
- MTTF [YEARS]: 181
- WEIGHT [G]: 205
- DISPLAY: SWITCHING STATUS 2 X LED, YELLOW 1 X ALPHANUMERIC DISPLAY, 3-DIGIT
- ACCESSORIES (SUPPLIED): LOCK NUT: 2 X
- REMARKS: CULUS - CLASS 2 SOURCE REQUIRED
- PACK QUANTITY: 1 PCS.
- CONNECTION: CONNECTOR: 1 X M12
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on OGD592 . Santa Clara Systems carries 2,284 items from Efector.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
