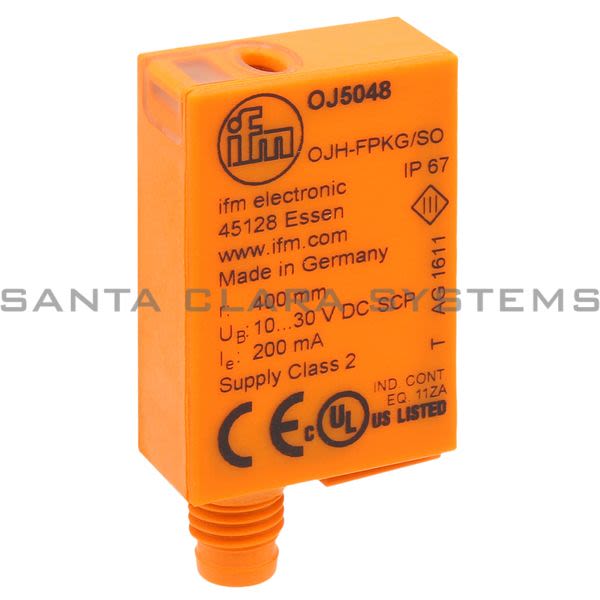

• Efector OJ5048 Diffuse Reflection Sensor | OJH-FPKG/SO/AS Product Image

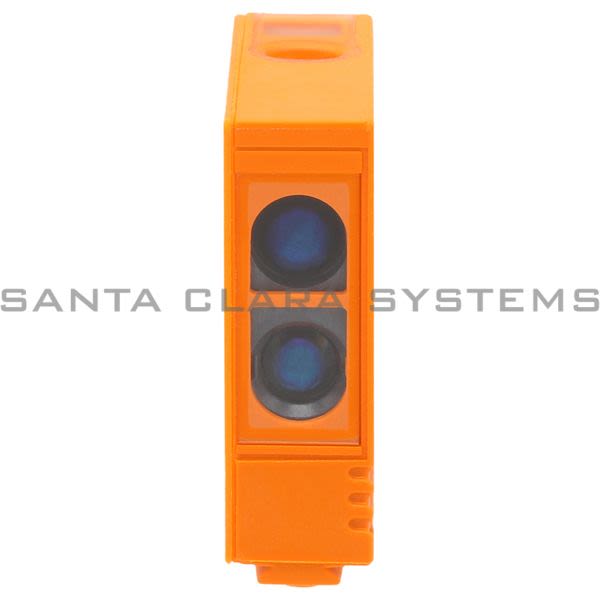

  • Efector OJ5048 Diffuse Reflection Sensor | OJH-FPKG/SO/AS Product Image

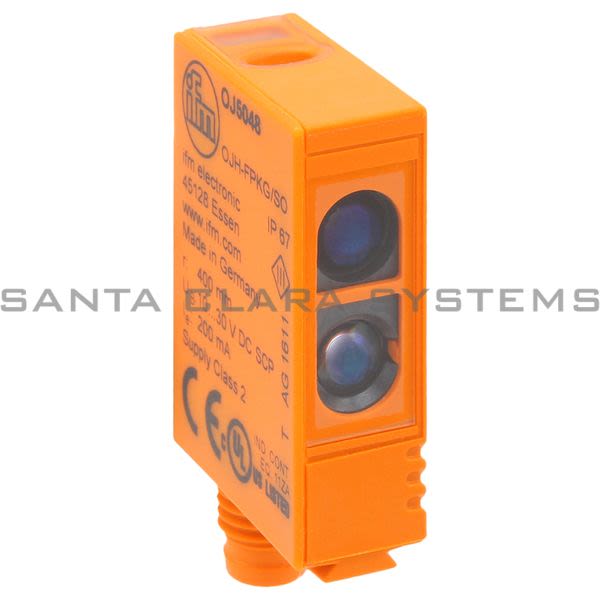

  • Efector OJ5048 Diffuse Reflection Sensor | OJH-FPKG/SO/AS Product Image
  • Efector OJ5048 Diffuse Reflection Sensor | OJH-FPKG/SO/AS Product Image
  • Efector OJ5048 Barcode

OJ5048

Product Summary:

  • Electrical Design: DC PNP
  • Output Function: Light-on / Dark-on Programmable
  • Operating Voltage: 10 to 30 VDC
  • Material: housing: ABS; fixture: diecast zinc; LED window: SEPS; pushbutton: SEPS
  • Range [mm]: 15...400 (Range referred to white paper 200 x 200 mm, 90 % remission)
Get a Quote

Current response time:

8 Minutes 17 Seconds
  • Description: Diffuse Reflection Sensor | OJH-FPKG/SO/AS
  • Electrical Design: DC PNP
  • Output Function: Light-on / Dark-on Programmable
  • Operating Voltage: 10 to 30 VDC
  • Material: housing: ABS; fixture: diecast zinc; LED window: SEPS; pushbutton: SEPS
  • Range [mm]: 15...400 (Range referred to white paper 200 x 200 mm, 90 % remission)
  • Ambient Temperature [C]: -25 to 60
  • Alternate Manufacturer Name: IFM
  • Type of light: red light
  • Housing: rectangular
  • Dimensions [mm]: 35 x 11 x 24
  • System: Background suppression
  • Function principle: Diffuse reflection sensor
  • Current consumption [mA]: 25
  • Protection class: III
  • Reverse polarity protection: yes
  • Wave length [nm]: 660
  • Max. voltage drop switching output DC [V]: 2.5
  • Permanent current rating of switching output DC [mA]: 200
  • Switching frequency DC [Hz]: 1000
  • Short-circuit protection: yes
  • Type of short-circuit protection: yes (non-latching)
  • Overload protection: yes
  • Range adjustable: yes
  • Max. light spot diameter [mm]: 18
  • Light spot dimensions refer to: Range
  • Background suppression available: yes
  • Protection: IP 67
  • EMC: EN 60947-5-2
  • MTTF [years]: 556
  • Weight [g]: 35.3
  • Lens material: PMMA
  • Lens alignment: Side sensing
  • Display: Switching status 1 x LED, yellow Power 1 x LED, green
  • Electronic lock: yes
  • Accessories (supplied): Basic clip: 1 x, E20964 screws: 2 x x M3 x 16 spring washers: 2 x Nuts: 2 x
  • Remarks: cULus - Class 2 source required
  • Pack quantity: 1 pcs.
  • Connection: Connector: 1 x M8
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on OJ5048 . Santa Clara Systems carries 2,078 items from Efector.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
