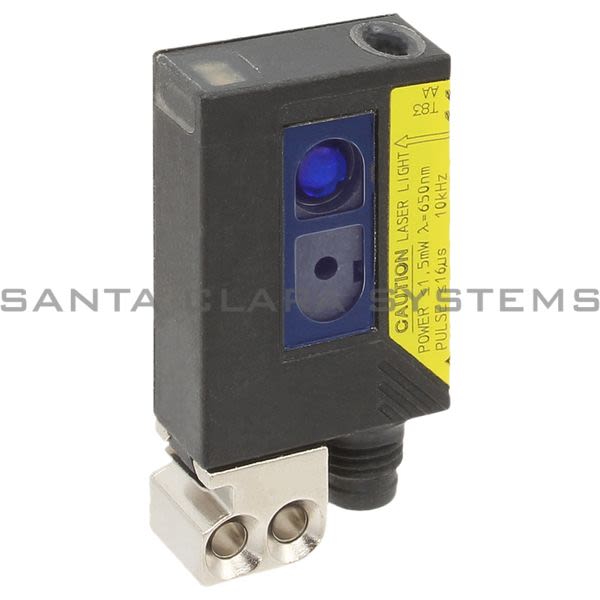

• Efector OJ5052 Diffuse Reflection Sensor | OJHLFPKG/FO/AS Product Image

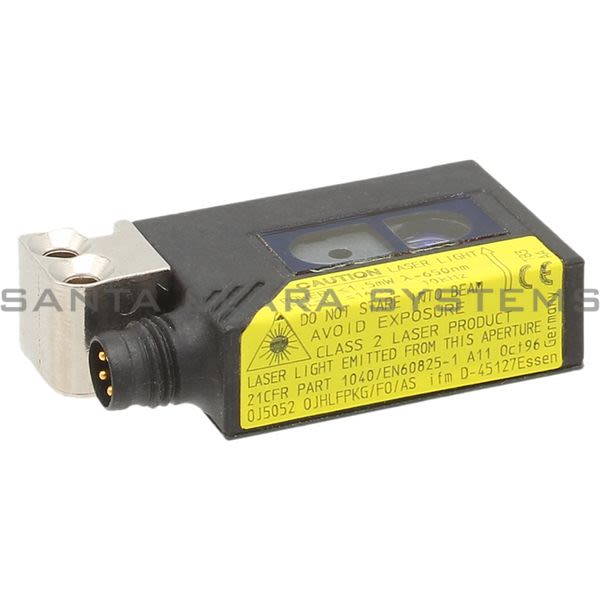

  • Efector OJ5052 Diffuse Reflection Sensor | OJHLFPKG/FO/AS Product Image

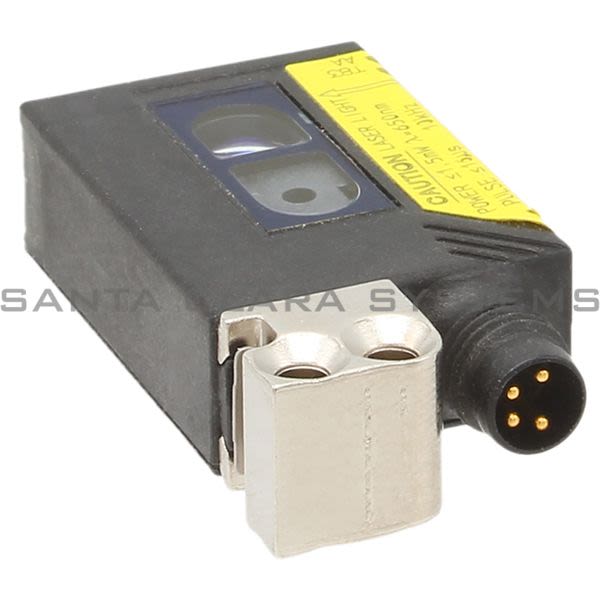

  • Efector OJ5052 Diffuse Reflection Sensor | OJHLFPKG/FO/AS Product Image

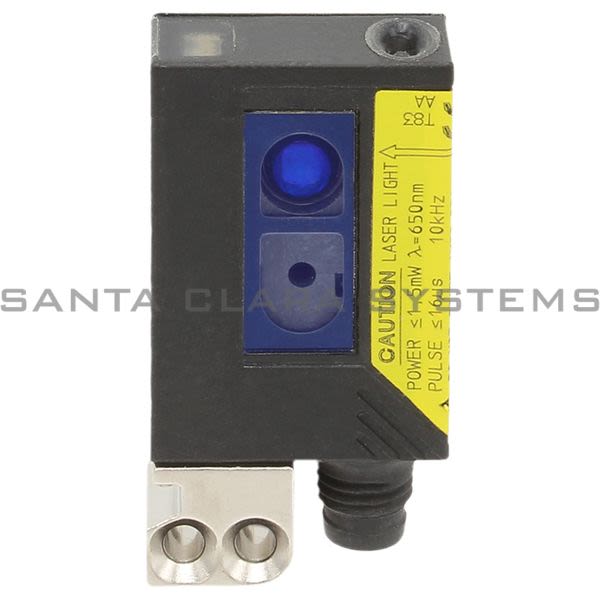

  • Efector OJ5052 Diffuse Reflection Sensor | OJHLFPKG/FO/AS Product Image
  • Efector OJ5052 Barcode

OJ5052

Product Summary:

  • Electrical Design: Pnp
  • Output Function: Light-On/Dark-On Mode; (Programmable)
  • Material: Housing: Abs; Fixture: Diecast Zinc; Led Window: Seps; Pushbutton: Seps
  • Function Principle: Diffuse Reflection Sensor
  • Operating Voltage [V]: 10...30 Dc
Get a Quote

Current response time:

8 Minutes 46 Seconds
  • Description: Diffuse Reflection Sensor | OJHLFPKG/FO/AS
  • Electrical Design: Pnp
  • Output Function: Light-On/Dark-On Mode; (Programmable)
  • Material: Housing: Abs; Fixture: Diecast Zinc; Led Window: Seps; Pushbutton: Seps
  • Function Principle: Diffuse Reflection Sensor
  • Operating Voltage [V]: 10...30 Dc
  • Current Consumption [Ma]: 13
  • Protection Class: Iii
  • Reverse Polarity Protection: Yes
  • Type Of Light: Red Light
  • Wave Length [Nm]: 650
  • Typ. Lifetime [H]: 50000
  • Max. Voltage Drop Switching Output Dc [V]: 2.5
  • Permanent Current Rating Of Switching Output Dc [Ma]: 200
  • Switching Frequency Dc [Hz]: 1000
  • Short-Circuit Protection: Yes
  • Type Of Short-Circuit Protection: Yes (Non-Latching)
  • Overload Protection: Yes
  • Range [Mm]: 15...200; (White Paper 200 X 200 Mm 90 % Remission)
  • Range Adjustable: Yes
  • Diameter Of The Smallest Detectable Object [Mm]: 2
  • Max. Light Spot Width [Mm]: 2
  • Max. Light Spot Height [Mm]: 1
  • Background Suppression Available: Yes
  • Ambient Temperature [C]: -10...60
  • Protection: Ip 67
  • Emc: En 60947-5-2
  • Laser Protection Class: 1; (Iec 60825-1 : 2007; Complies With 21 Cfr 1040 Except For Deviations Pursuant To Laser Notice No. 50, Dated June 2007.)
  • Housing: Rectangular
  • Dimensions [Mm]: 35 X 24 X 11
  • Lens Material: Pmma
  • Lens Alignment: Front Sensing
  • Display: Switching Status 1 X Led, Yellow Power 1 X Led, Green
  • Electronic Lock: Yes
  • Accessories (Supplied): Basic Clip: 1 X, E20964 Screws: 2 X X M3 X 16 Spring Washers: 2 X Nuts: 2 X
  • Connection: Connector: 1 X M8
  • Background Suppression Chart: X: Distance Sensor/Object [Mm] Y: Min. Distance Object/Background [Mm] 1 = Object Black (6 % Remission) , Background (White 90 % Remission) 2 = Object Grey (18 % Remission) , Background (White 90 % Remission) 3 = Object White (90 % Remission) , Background (White 90 % Remission)
  • Alternate Manufacturer Name: IFM
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on OJ5052 . Santa Clara Systems carries 2,078 items from Efector.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.

Alternates

  • OJHLFPKG/FO/AS
