• Efector OJ5148 Barcode

OJ5148

Let Us Find It

Current response time:

By 5AM PT on Friday

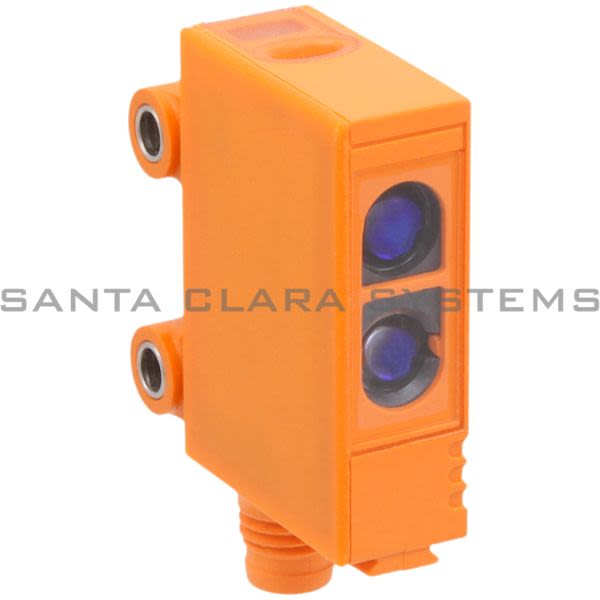

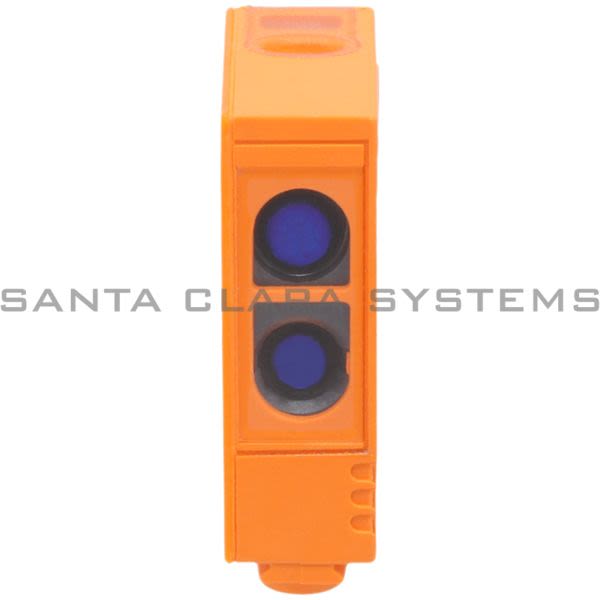

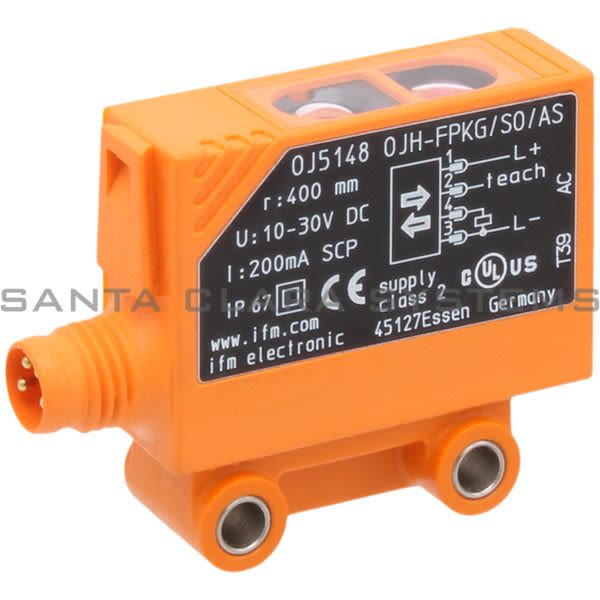

  • Description: Diffuse Reflection Sensor | OJH-FPKG/SO/AS
  • Electrical Design: Pnp
  • Output Function: Light-On/Dark-On Mode; (Programmable)
  • Material: Housing: Abs; Led Window: Seps; Pushbutton: Seps
  • Function Principle: Diffuse Reflection Sensor
  • Operating Voltage [V]: 10...30 Dc
  • Current Consumption [Ma]: 25
  • Protection Class: Iii
  • Reverse Polarity Protection: Yes
  • Type Of Light: Red Light
  • Wave Length [Nm]: 660
  • Max. Voltage Drop Switching Output Dc [V]: 2.5
  • Permanent Current Rating Of Switching Output Dc [Ma]: 200
  • Switching Frequency Dc [Hz]: 1000
  • Short-Circuit Protection: Yes
  • Type Of Short-Circuit Protection: Yes (Non-Latching)
  • Overload Protection: Yes
  • Range [Mm]: 15...400; (White Paper 200 X 200 Mm 90 % Remission)
  • Range Adjustable: Yes
  • Max. Light Spot Diameter [Mm]: 18
  • Light Spot Dimensions Refer To: Range
  • Background Suppression Available: Yes
  • Ambient Temperature [C]: -25...60
  • Protection: Ip 67
  • Emc: En 60947-5-2
  • Housing: Rectangular
  • Dimensions [Mm]: 35 X 11 X 24
  • Lens Material: Pmma
  • Lens Alignment: Side Sensing
  • Display: Switching Status 1 X Led, Yellow Power 1 X Led, Green
  • Electronic Lock: Yes
  • Accessories (Supplied): Screws: 2 X Spring Washers: 2 X Nuts: 2 X
  • Connection: Connector: 1 X M8
  • Background Suppression Chart: X: Distance Sensor/Object [Mm] Y: Min. Distance Object/Background [Mm] 1 = Object Black (6 % Remission) , Background (White 90 % Remission) 2 = Object Grey (18 % Remission) , Background (White 90 % Remission) 3 = Object White (90 % Remission) , Background (White 90 % Remission)
  • Alternate Manufacturer Name: IFM
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on OJ5148 . Santa Clara Systems carries 2,203 items from Efector.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.

Alternates

  • OJH-FPKG/SO/AS
