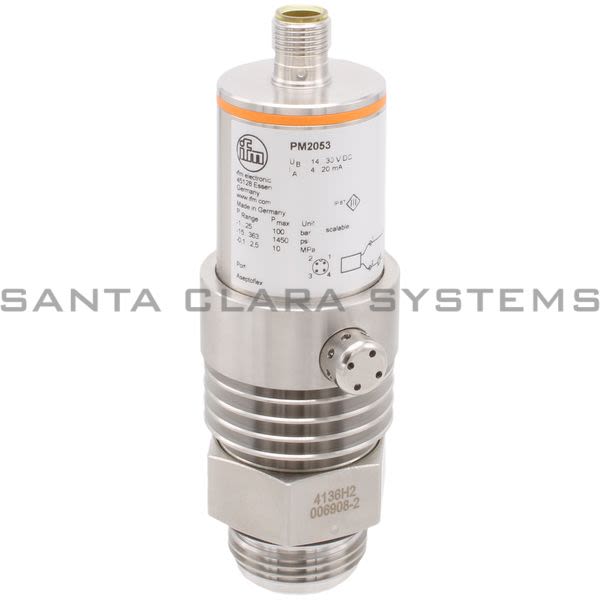

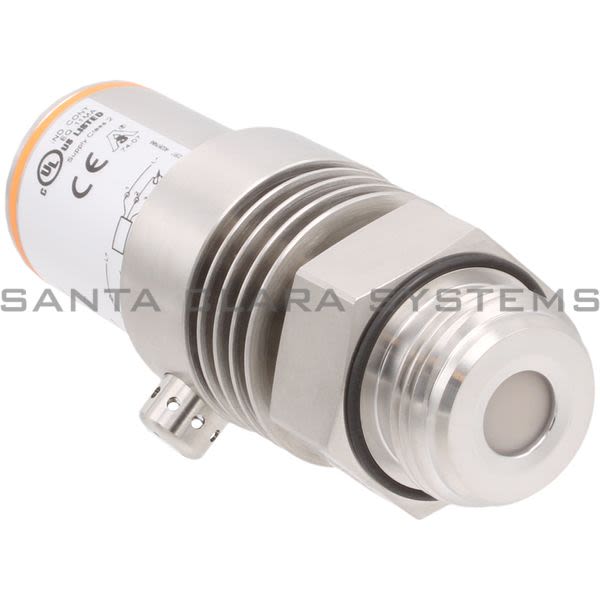

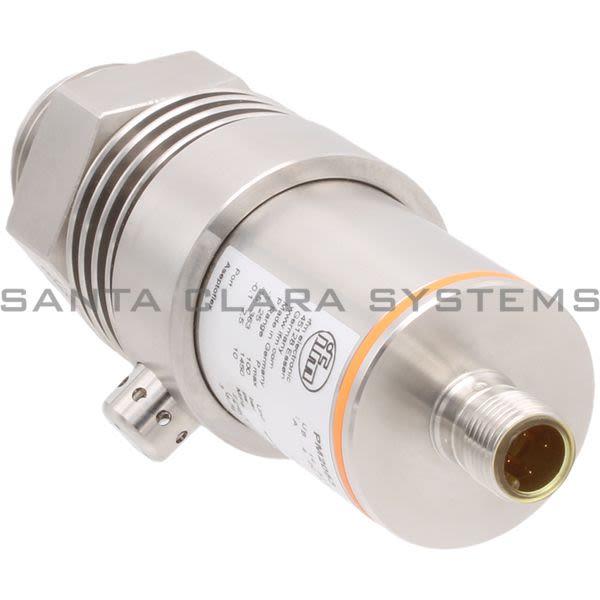

- Description: Pressure Control
- Material: Stainless Steel (1.4404 / 316L); Pei; Fkm
- Media: Viscous Media And Liquids With Suspended Particles; Liquids And Gases
- Medium Temperature [C]: -25...125; (145 Max. 1H)
- Pressure Rating: 100 Bar 1450 Psi 10 Mpa
- Min. Bursting Pressure: 350 Bar 5070 Psi 35 Mpa
- Type Of Pressure: Relative Pressure
- No Dead Space: Yes
- Operating Voltage [V]: 14...30 Dc
- Min. Insulation Resistance [M?]: 100; (500 V Dc)
- Protection Class: Iii
- Reverse Polarity Protection: Yes
- Number Of Inputs And Outputs: Number Of Analog Outputs: 1
- Total Number Of Outputs: 1
- Output Signal: Analog Signal
- Number Of Analog Outputs: 1
- Analog Current Output [Ma]: 4...20
- Max. Load [?]: 550; (Ub = 24 V; (Ub - 13 V) / 20 Ma)
- Overload Protection: Yes
- Measuring Range: -1...25 Bar -15...363 Psi -0.1...2.5 Mpa
- Analog Start Point: -1...18.8 Bar -15...272 Psi -0.1...1.88 Mpa
- Analog End Point: 5.3...25 Bar 76...363 Psi 0.53...2.5 Mpa
- In Steps Of: 0.1 Bar 1 Psi 0.01 Mpa
- Factory Setting: Asp = 0.0 Bar Aep = 25.0 Bar
- Repeatability [% Of The Span]: < 0,1; (With Temperature Fluctuations < 10 K; Turn Down 1:1)
- Characteristics Deviation [% Of The Span]: < 0,6; (Turn Down 1:1 Linearity, Incl. Hysteresis And Repeatability Limit Value Setting To Din 16086)
- Linearity Deviation [% Of The Span]: < 0,5; (Turn Down 1:1)
- Hysteresis Deviation [% Of The Span]: < 0,1; (Turn Down 1:1)
- Long-Term Stability [% Of The Span]: < 0,1; (Turn Down 1:1; Per Year)
- Temperature Coefficient Zero Point [% Of The Span / 10 K]: < 0,1; (0...80 C)
- Temperature Coefficient Span [% Of The Span / 10 K]: < 0,2; (0...80 C)
- Max. Response Time Analog Output [Ms]: 3
- Parameter Setting Options: Zero Point; Span
- Communication Interface: Eps
- Ambient Temperature [C]: -25...80
- Storage Temperature [C]: -40...100
- Protection: Ip 67
- Emc: En 61000-4-2 Esd 4 Kv Cd / 8 Kv Ad En 61000-4-3 Hf Radiated 10 V/M En 61000-4-4 Burst 2 Kv En 61000-4-6 Hf Conducted 10 V
- Shock Resistance: Din Iec 68-2-27 50 G (11 Ms)
- Vibration Resistance: Din Iec 68-2-6 20 G (10...2000 Hz)
- Materials (Wetted Parts): Ceramics (99.9 % Al2O3); Ptfe; Stainless Steel (1.4404 / 316L); Surface Characteristics: Ra < 0,4 / Rz 4
- Min. Pressure Cycles: 100 Million
- Process Connection: Threaded Connection Aseptoflex External Thread Aseptoflex
- Connection: Connector: 1 X M12; Contacts: Gold-Plated
- Alternate Manufacturer Name: IFM
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on PM2053 . Santa Clara Systems carries 2,216 items from Efector.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
