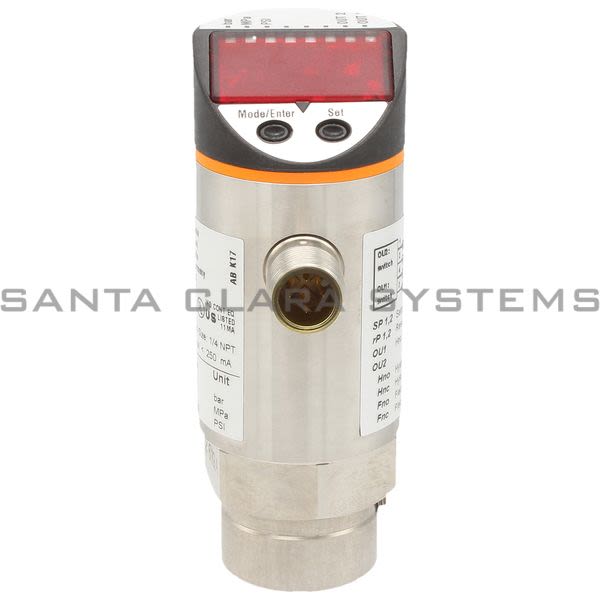

• Efector PN2222 Pressure Sensor | PN-100-SBN14-MFRKG/US/ /V Product Image
  • Efector PN2222 Pressure Sensor | PN-100-SBN14-MFRKG/US/ /V Product Image
  • Efector PN2222 Pressure Sensor | PN-100-SBN14-MFRKG/US/ /V Product Image
  • Efector PN2222 Pressure Sensor | PN-100-SBN14-MFRKG/US/ /V Product Image
  • Efector PN2222 Pressure Sensor | PN-100-SBN14-MFRKG/US/ /V Product Image
  • Efector PN2222 Barcode

PN2222

Product Summary:

  • Electrical Design: DC PNP/NPN
  • Output function: normally open / closed; (configurable)
  • Operating Voltage [V]: 18...32 DC )
  • Measuring Range: 0...1450 psi, 0...100 bar, 0...10 MPa
  • Ambient Temperature [C]: -25...80
Get a Quote

Current response time:

By 5AM PT on Thursday
  • Description: Pressure Sensor | PN-100-SBN14-MFRKG/US/ /V
  • Electrical Design: DC PNP/NPN
  • Output function: normally open / closed; (configurable)
  • Output: 2 Outputs: OUT1 = switching output OUT2 = switching output or analog output
  • Material: stainless steel (1.4301 / 304); stainless steel (1.4404 / 316L); PC; PBT; PEI; FKM
  • Operating Voltage [V]: 18...32 DC )
  • Measuring Range: 0...1450 psi, 0...100 bar, 0...10 MPa
  • Ambient Temperature [C]: -25...80
  • Alternate Manufacturer Name: IFM
  • Output signal: switching signal; analog signal; IO-Link; (configurable)
  • Process connection: threaded connection 1/4 NPT Internal thread
  • System: gold-plated contacts
  • Application: for industrial applications
  • Media: liquids and gases
  • Conditionally suitable for: use in gases at pressures > 25 bar only on request
  • Medium temperature [C]: -25...80
  • Pressure rating: 300 bar 4350 psi 30 MPa
  • Min. bursting pressure: 650 bar 9400 psi 65 MPa
  • Type of pressure: relative pressure
  • Current consumption [mA]: < 35
  • Min. insulation resistance [M]: 100; (500 V DC)
  • Protection class: III
  • Reverse polarity protection: yes
  • Power-on delay time [s]: 0.3
  • Integrated watchdog: yes
  • Number of inputs and outputs: Number of digital outputs: 2; Number of analog outputs: 1
  • Total number of outputs: 2
  • Number of digital outputs: 2
  • Max. voltage drop switching output DC [V]: 2
  • Permanent current rating of switching output DC [mA]: 250
  • Switching frequency DC [Hz]: < 500
  • Number of analog outputs: 1
  • Analog current output [mA]: 4...20; (scalable 1:4)
  • Max. load []: (Ub - 10 V) / 20 mA
  • Analog voltage output [V]: 0...10; (scalable 1:4)
  • Min. load resistance []: 2000
  • Short-circuit protection: yes
  • Type of short-circuit protection: yes (non-latching)
  • Overload protection: yes
  • Measuring/setting range Measuring range: 0...100 bar 0...1450 psi 0...10 MPa
  • Measuring/setting range Set point SP: 0.8...100 bar 12...1450 psi 0.08...10 MPa
  • Measuring/setting range Reset point rP: 0.4...99.6 bar 6...1444 psi 0.04...9.96 MPa
  • Measuring/setting range Analog start point: 0...75 bar 0...1088 psi 0...7.5 MPa
  • Measuring/setting range Analog end point: 25...100 bar 364...1450 psi 2.5...10 MPa
  • Measuring/setting range In steps of: 0.2 bar 2 psi 0.02 MPa
  • Measuring/setting range Factory setting: SP1 = 362 psi rP1 = 334 psi SP2 = 1088 psi rP2 = 1058 psi ASP = 0 psi AEP = 1450 psi
  • Switch point accuracy [% of the span]: < 0,4; (Turn down 1:1)
  • Repeatability [% of the span]: < 0,1; (with temperature fluctuations < 10 K; Turn down 1:1)
  • Characteristics deviation [% of the span]: < 0,25 (BFSL) / < 0,5 (LS); (Turn down 1:1; BFSL = Best Fit Straight Line; LS = limit value setting)
  • Hysteresis deviation [% of the span]: < 0,1; (Turn down 1:1)
  • Long-term stability [% of the span]: < 0,1; (Turn down 1:1; per year)
  • Temperature coefficient zero point [% of the span / 10 K]: < 0,2; (0...80 C)
  • Temperature coefficient span [% of the span / 10 K]: < 0,2; (0...80 C)
  • Response time [ms]: < 1.5
  • Damping for the switching output dAP [s]: 0.01...4
  • Damping for the analog output dAA [s]: 0.01...4
  • Max. response time analog output [ms]: 3
  • Parameter setting options: hysteresis / window; normally open / closed; switching logic; current/voltage output; Damping; adaptation of displayed values; display can be rotated and switched off; Display unit; Zero point; span
  • Communication interface: IO-Link
  • Transmission type: COM2 (38.4 kBaud)
  • IO-Link revision: 1.0
  • Storage temperature [C]: -40...100
  • Protection: IP 67
  • EMC: EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-5 Surge 0,5/1 kV EN 61000-4-6 HF conducted 10 V
  • Shock resistance: DIN IEC 68-2-27 50 g (11 ms)
  • Vibration resistance: DIN IEC 68-2-6 20 g (10...2000 Hz)
  • MTTF [years]: 131
  • Pressure equipment directive: sound engineering practice; can be used for group 2 fluids; group 1 fluids on request
  • Weight [g]: 266.5
  • Materials (wetted parts): stainless steel (1.4305 / 303); ceramics; FKM
  • Min. pressure cycles: 100 million
  • Restrictor element integrated: no (can be retrofitted)
  • Display: Display unit 3 x LED, green Switching status 2 x LED, yellow Function display alphanumeric display, 4-digit Measured values alphanumeric display, 4-digit
  • Notes: Discontinued article
  • Pack quantity: 1 pcs.
  • Connector: 1 x M12; Contacts: gold-plated
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on PN2222 . Santa Clara Systems carries 1,831 items from Efector.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
