PN2293

Efector - Pressure Sensor | PN-025-REN14-MFRKG/US/ /V

Current response time:

8 Minutes 3 Seconds

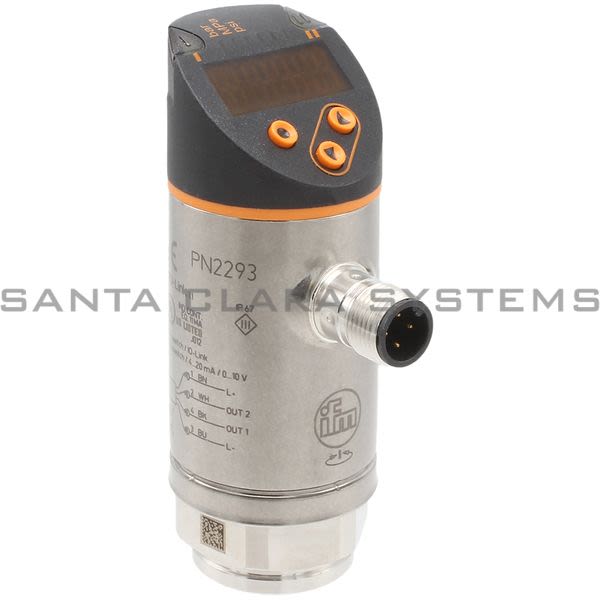

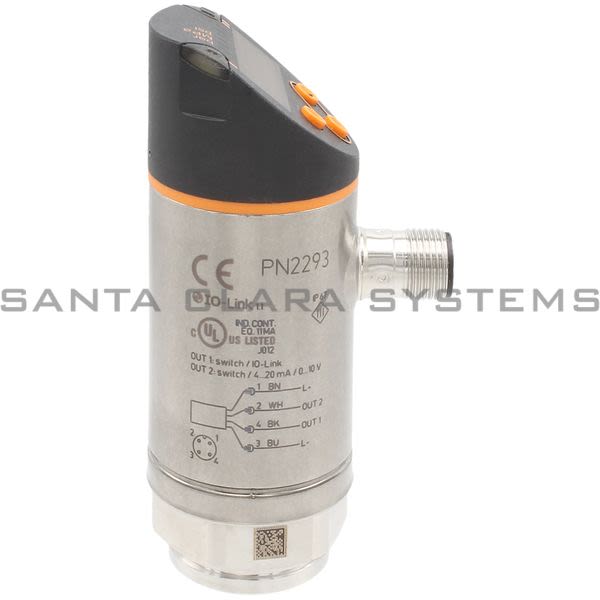

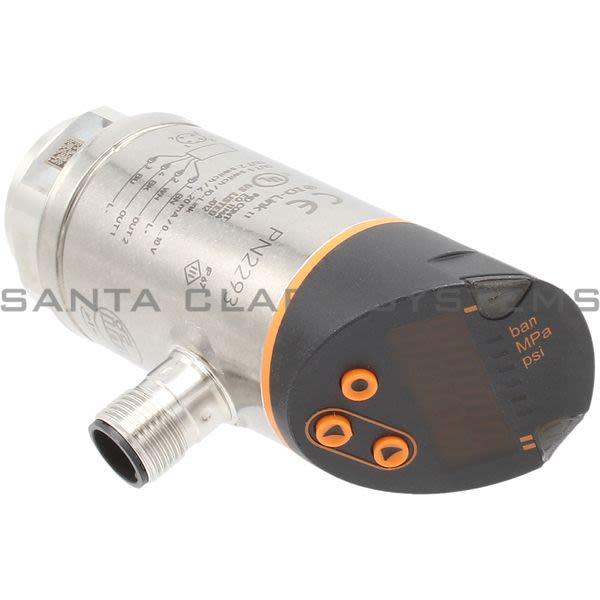

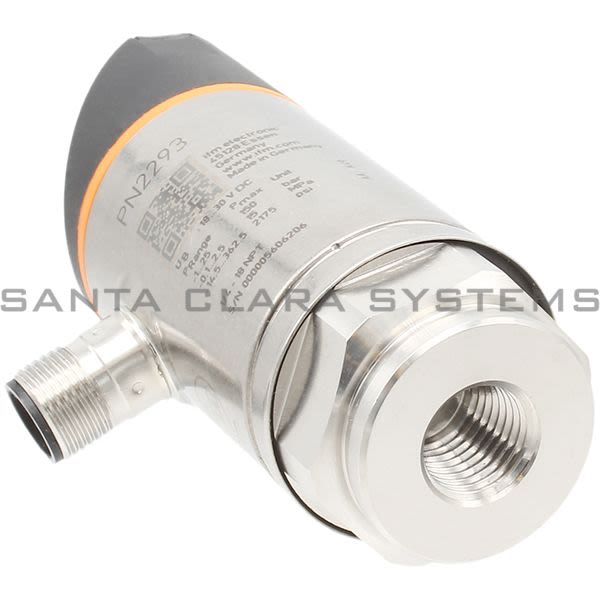

Description: Pressure Sensor | PN-025-REN14-MFRKG/US/ /V
Electrical Design: Pnp/Npn
Output Function: Normally Open / Closed; (Configurable)
Material: Stainless Steel (1.4404 / 316L); Pbt+Pc-Gf30; Pbt-Gf20; Pc
Measuring Element: Ceramic-Capacitive Pressure Measuring Cell
Media: Liquids And Gases
Medium Temperature [C]: -25...80
Pressure Rating: 150 Bar 2175 Psi 15 Mpa
Min. Bursting Pressure: 350 Bar 5075 Psi 35 Mpa
Vacuum Resistance [Mbar]: -1000
Type Of Pressure: Relative Pressure
Mawp (For Applications According To Crn): 70 Bar 1015 Psi 7 Mpa
Operating Voltage [V]: 18...30 Dc; (According To En 50178 Selv/Pelv)
Current Consumption [Ma]: < 35
Min. Insulation Resistance [M?]: 100; (500 V Dc)
Protection Class: Iii
Reverse Polarity Protection: Yes
Power-On Delay Time [S]: 0.3
Integrated Watchdog: Yes
Number Of Inputs And Outputs: Number Of Digital Outputs: 2; Number Of Analog Outputs: 1
Total Number Of Outputs: 2
Output Signal: Switching Signal; Analog Signal; Io-Link; (Configurable)
Number Of Digital Outputs: 2
Max. Voltage Drop Switching Output Dc [V]: 2
Permanent Current Rating Of Switching Output Dc [Ma]: 250
Switching Frequency Dc [Hz]: < 500
Number Of Analog Outputs: 1
Analog Current Output [Ma]: 4...20; (Scalable 1:5)
Max. Load [?]: 500
Analog Voltage Output [V]: 0...10; (Scalable 1:5)
Min. Load Resistance [?]: 2000
Short-Circuit Protection: Yes
Type Of Short-Circuit Protection: Yes (Non-Latching)
Overload Protection: Yes
Measuring Range: -1...25 Bar -14.5...362.5 Psi -0.1...2.5 Mpa
Set Point Sp: -0.85...25 Bar -12...362.5 Psi -0.085...2.5 Mpa
Reset Point Rp: -0.95...24.9 Bar -13.5...361 Psi -0.095...2.49 Mpa
Analog Start Point: -1...20 Bar -14.5...290 Psi -0.1...2 Mpa
Analog End Point: 4...25 Bar 58...362.5 Psi 0.4...2.5 Mpa
In Steps Of: 0.05 Bar 0.5 Psi 0.005 Mpa

Switch Point Accuracy [% Of The Span]: < 0,4; (Turn Down 1:1)
Repeatability [% Of The Span]: < 0,1; (With Temperature Fluctuations < 10 K; Turn Down 1:1)
Characteristics Deviation [% Of The Span]: < 0,25 (Bfsl) / < 0,5 (Ls); (Turn Down 1:1; Bfsl = Best Fit Straight Line; Ls = Limit Value Setting)
Hysteresis Deviation [% Of The Span]: < 0,1; (Turn Down 1:1)
Long-Term Stability [% Of The Span]: < 0,05; (Turn Down 1:1; Per 6 Months)
Temperature Coefficient Zero Point [% Of The Span / 10 K]: 0,2; (-25...80 C)
Temperature Coefficient Span [% Of The Span / 10 K]: 0,2; (-25...80 C)
Response Time [Ms]: < 1.5
Delay Time Programmable Ds, Dr [S]: 0...50
Damping For The Switching Output Dap [S]: 0...4
Damping For The Analog Output Daa [S]: 0...4
Max. Response Time Analog Output [Ms]: 3
Parameter Setting Options: Hysteresis / Window; Normally Open / Closed; Switch-On/Switch-Off Delay; Damping; Display Unit; Current/Voltage Output
Communication Interface: Io-Link
Transmission Type: Com2
Io-Link Revision: 1.1
Sdci Standard: Iec 61131-9
Io-Link Device Id: 472 D / 00 01 D8 H
Profiles: Smart Sensor: Process Data Variable; Device Identification, Device Diagnosis
Sio Mode: Yes
Required Master Port Class: A
Process Data Analogue: 1
Process Data Binary: 2
Min. Process Cycle Time [Ms]: 2.3
Ambient Temperature [C]: -25...80
Storage Temperature [C]: -40...100
Protection: Ip 65; Ip 67
Emc: Din En 61000-6-2 Din En 61000-6-3
Shock Resistance: Din En 60068-2-27 50 G (11 Ms)
Vibration Resistance: Din En 60068-2-6 20 G (10...2000 Hz)
Ul Approval: Ul Approval Number J012
Pressure Equipment Directive: Sound Engineering Practice; Can Be Used For Group 2 Fluids; Group 1 Fluids On Request
Materials (Wetted Parts): Stainless Steel (1.4404 / 316L); Al2O3 (Ceramics); Fkm
Min. Pressure Cycles: 100 Million
Tightening Torque [Nm]: > 50; (Depends On Lubrication, Seal And Pressure Rating)
Process Connection: Threaded Connection 1/4 Npt Internal Thread
Restrictor Element Integrated: No (Can Be Retrofitted)
Display: Display Unit 3 X Led, Green (Bar, Psi, Mpa) Switching Status 2 X Led, Yellow Measured Values Alphanumeric Display, Red/Green 4-Digit
Connection: Connector: 1 X M12; Contacts: Gold-Plated
Alternate Manufacturer Name: IFM
