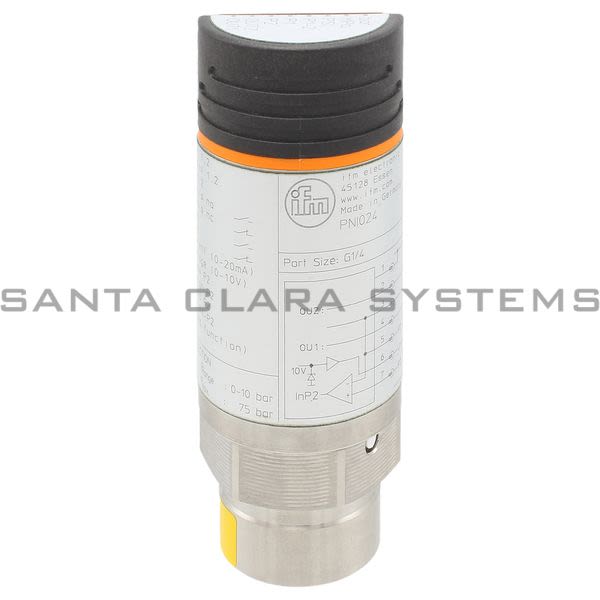

• Efector PNI024 Pressure Monitor | PNI010-RBR14-QFRKG/US/ /V Product Image

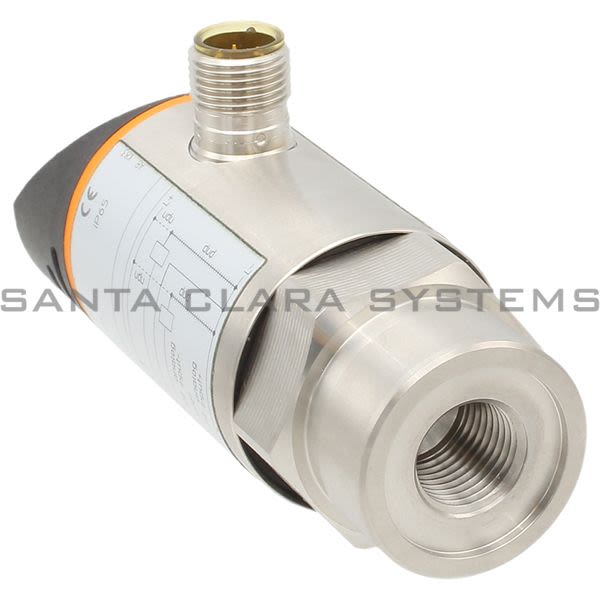

  • Efector PNI024 Pressure Monitor | PNI010-RBR14-QFRKG/US/ /V Product Image

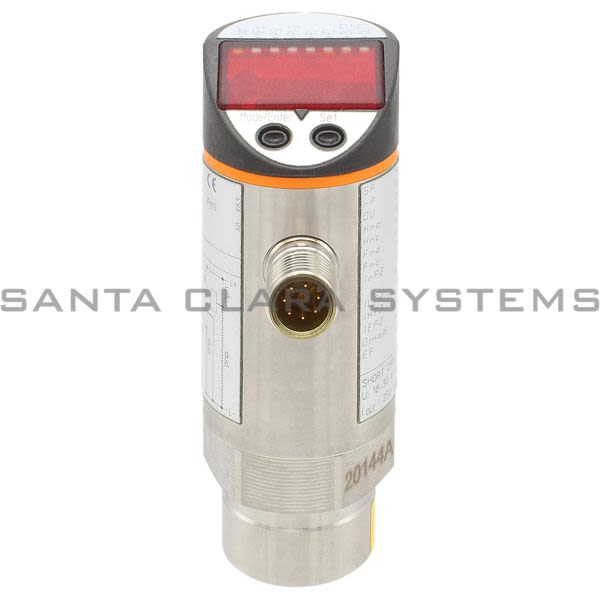

  • Efector PNI024 Pressure Monitor | PNI010-RBR14-QFRKG/US/ /V Product Image

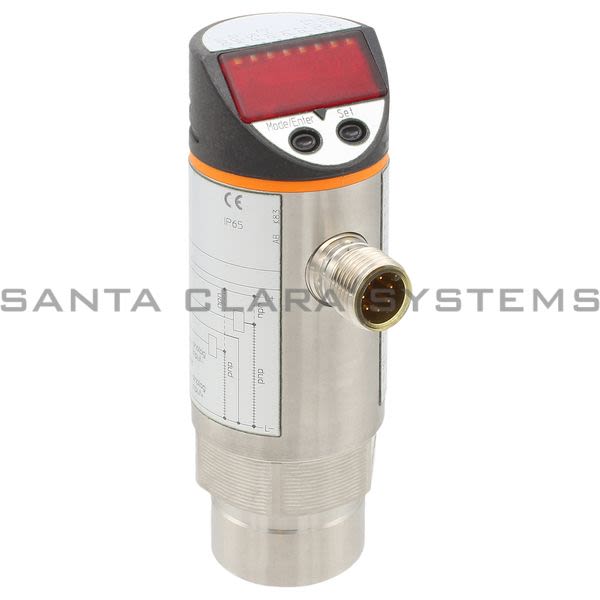

  • Efector PNI024 Pressure Monitor | PNI010-RBR14-QFRKG/US/ /V Product Image
  • Efector PNI024 Barcode

PNI024

Product Summary:

  • Electrical Design: Pnp/Npn
  • Output Function: Normally Open / Closed; (Configurable)
  • Material: Stainless Steel (1.4305 / 303); Pbt; Pc; Pa; Fkm
  • Media: Liquids And Gases
  • Medium Temperature [C]: -25...80
Get a Quote

Current response time:

15 Minutes 41 Seconds
  • Description: Pressure Monitor | PNI010-RBR14-QFRKG/US/ /V
  • Electrical Design: Pnp/Npn
  • Output Function: Normally Open / Closed; (Configurable)
  • Material: Stainless Steel (1.4305 / 303); Pbt; Pc; Pa; Fkm
  • Media: Liquids And Gases
  • Medium Temperature [C]: -25...80
  • Pressure Rating [Bar]: 50
  • Min. Bursting Pressure [Bar]: 150
  • Type Of Pressure: Relative Pressure
  • Operating Voltage [V]: 18...30 Dc
  • Current Consumption [Ma]: < 90
  • Min. Insulation Resistance [M?]: 100; (500 V Dc)
  • Protection Class: Iii
  • Reverse Polarity Protection: Yes
  • Power-On Delay Time [S]: 0.2
  • Integrated Watchdog: Yes
  • Number Of Inputs And Outputs: Number Of Digital Outputs: 2
  • Analog Input (Current) [Ma]: 0...20
  • Max. Load [?]: 300
  • Analog Input (Voltage) [V]: 0...10
  • Min. Load Resistance [?]: 90000
  • Total Number Of Outputs: 2
  • Output Signal: Switching Signal
  • Number Of Digital Outputs: 2
  • Max. Voltage Drop Switching Output Dc [V]: 2
  • Permanent Current Rating Of Switching Output Dc [Ma]: 250
  • Switching Frequency Dc [Hz]: < 170
  • Short-Circuit Protection: Yes
  • Type Of Short-Circuit Protection: Yes (Non-Latching)
  • Overload Protection: Yes
  • Measuring Range [Bar]: 0...10
  • Set Point Sp [Bar]: -2.46...10
  • Reset Point Rp [Bar]: -2.5...9.96
  • In Steps Of [Bar]: 0.02
  • Characteristics Deviation [% Of The Final Value]: < 0,6
  • Temperature Drift Per 10 K: < 0.3
  • Characteristics Deviation Analog Input: < 0.3
  • Temperature Drift Analog Input Per 10 K: < 0.1
  • Temperature Drift Analog Input [C]: 0...80
  • Response Time [Ms]: < 3
  • Delay Time Programmable Ds, Dr [S]: 0, 0,1...50
  • Damping For The Switching Output Dap [S]: 0...4
  • Adjustment Of The Switch Point: Programming Button
  • Parameter Setting Options: Hysteresis / Window; Normally Open / Closed; Switching Logic; Current/Voltage Input; Damping; Adaptation Of Displayed Values; Display Can Be Rotated And Switched Off; Display Unit
  • Ambient Temperature [C]: -25...80
  • Storage Temperature [C]: -40...100
  • Protection: Ip 65
  • Emc: En 61000-4-2 Esd 4 Kv Cd / 8 Kv Ad En 61000-4-3 Hf Radiated 10 V/M En 61000-4-4 Burst 2 Kv En 61000-4-6 Hf Conducted 10 V
  • Shock Resistance: Din Iec 68-2-27 50 G (11 Ms)
  • Vibration Resistance: Din Iec 68-2-6 20 G (10...2000 Hz)
  • Materials (Wetted Parts): Stainless Steel (1.4305 / 303); Ceramics; Fkm
  • Min. Pressure Cycles: 100 Million
  • Process Connection: Threaded Connection G 1/4 Internal Thread
  • Display: Display Unit 3 X Led, Green Display Mode 3 X Led, Green Function Display Alphanumeric Display, 4-Digit Measured Values Alphanumeric Display, 4-Digit
  • Display Unit: Bar; Psi; Mpa
  • Connection: Connector: 1 X M12; Contacts: Gold-Plated
  • Alternate Manufacturer Name: IFM
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on PNI024 . Santa Clara Systems carries 2,078 items from Efector.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
