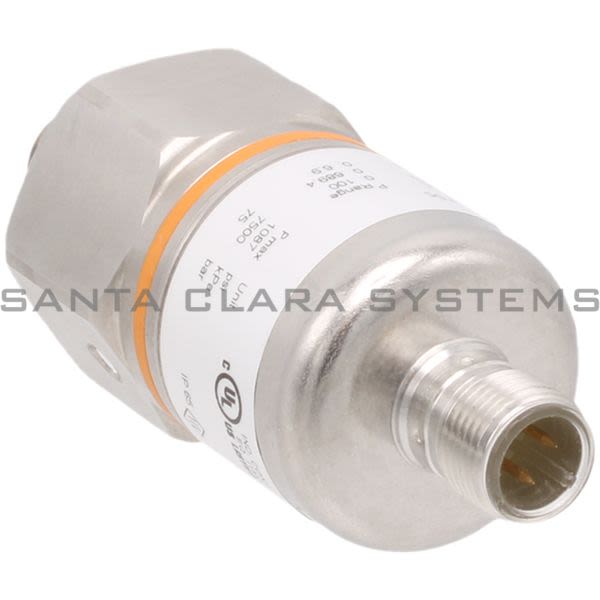

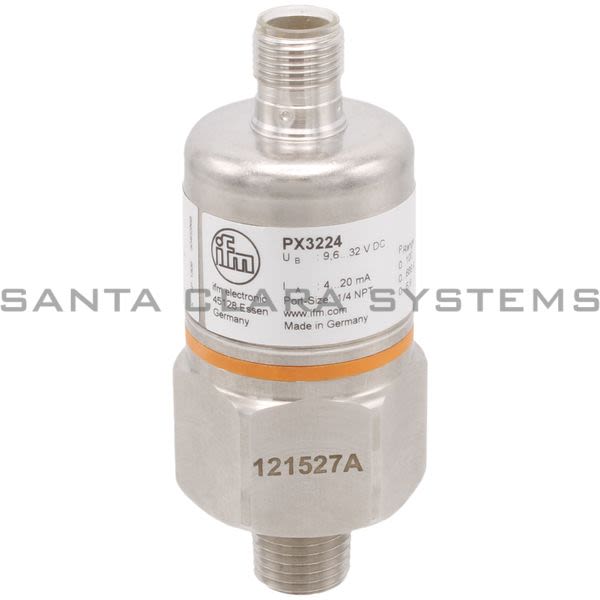

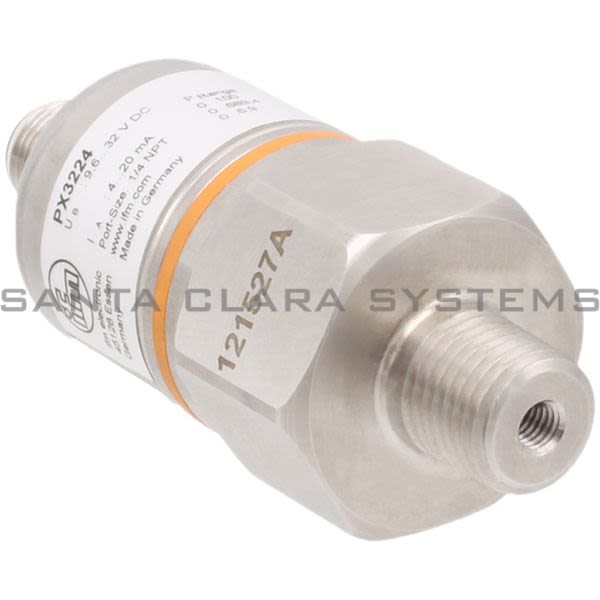

PX3224

Efector - Pressure Transmitter | PA-010PRBN14-A-ZVG/US/ /V

Product Summary:

Media: liquids and gases
Medium temperature [°C]: -25...90
Pressure rating [psi]: 1087
Min. bursting pressure [psi]: 2175
Type of pressure: relative pressure

Current response time:

11 Minutes 36 Seconds

Description: Pressure Transmitter | PA-010PRBN14-A-ZVG/US/ /V
Media: liquids and gases
Medium temperature [°C]: -25...90
Pressure rating [psi]: 1087
Min. bursting pressure [psi]: 2175
Type of pressure: relative pressure
Operating voltage [V]: 9.6...32 DC
Min. insulation resistance [MΩ]: 100; (500 V DC)
Protection class: III
Reverse polarity protection: yes
Number of inputs and outputs: Number of analog outputs: 1
Total number of outputs: 1
Output signal: analog signal
Number of analog outputs: 1

Analog current output [mA]: 4...20
Max. load [Ω]: 720; (Ub = 24 V; (Ub - 9,6 V) / 20 mA)
Overload protection: yes
Measuring range [psi]: 0...100
Repeatability [% of the span]: < 0,15; (with temperature fluctuations < 10 K)
Characteristics deviation [% of the span]: < ± 0,35 (BFSL) / < ± 0,75 (LS); (incl. linearity, zero and span error (limit value setting))
Long-term stability [% of the span]: < ± 0,05; (per 6 months)
Temperature coefficient zero point [% of the span / 10 K]: 0,2; (0...80 °C)
Temperature coefficient span [% of the span / 10 K]: 0,3; (0...80 °C)
Step response time analogue output [ms]: 3
Ambient temperature [°C]: -25...80
Storage temperature [°C]: -40...100
Protection: IP 65
Weight [g]: 212
