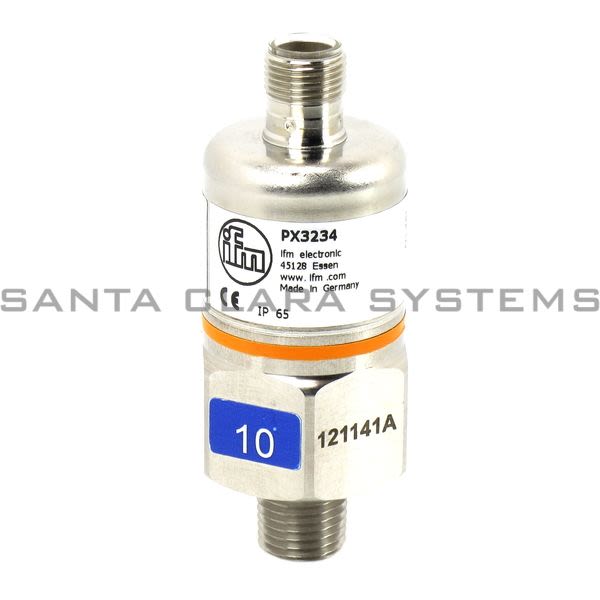

• Efector PX3234 Pressure Sensor | PA-020PRBN14-A-ZVG/US/ /V Product Image

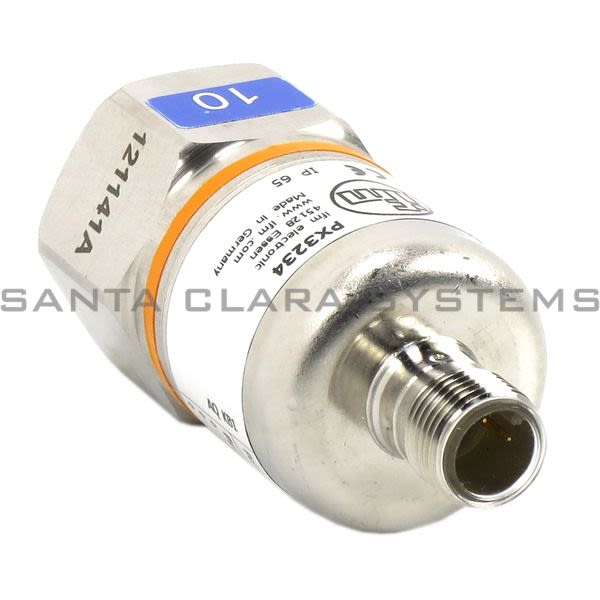

  • Efector PX3234 Pressure Sensor | PA-020PRBN14-A-ZVG/US/ /V Product Image

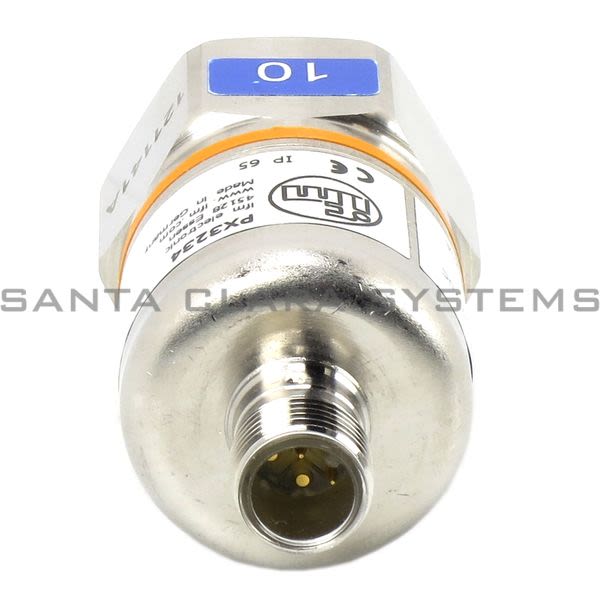

  • Efector PX3234 Pressure Sensor | PA-020PRBN14-A-ZVG/US/ /V Product Image
  • Efector PX3234 Barcode

PX3234

Product Summary:

  • Electrical Design: DC
  • Operating Voltage: 9.6 to 32 VDC
  • Material: Stainless steel (1.4404 / 316L); FKM; PA; EPDM/X
  • Pressure Rating: 1087 psi
  • Ambient temperature [C]: -25 to 80
Get a Quote

Current response time:

7 Minutes 47 Seconds
  • Description: Pressure Sensor | PA-020PRBN14-A-ZVG/US/ /V
  • Electrical Design: DC
  • Operating Voltage: 9.6 to 32 VDC
  • Material: Stainless steel (1.4404 / 316L); FKM; PA; EPDM/X
  • Pressure Rating: 1087 psi
  • Ambient temperature [C]: -25 to 80
  • Measuring Range: 0 to 200 psi
  • Alternate Manufacturer Name: IFM
  • Output signal: analog signal
  • Process connection: threaded connection 1/4 NPT external thread Internal threadM5
  • System: gold-plated contacts
  • Application: for industrial applications
  • Media: Liquids and gases
  • Medium temperature [C]: -25...90; (on request: -40...90 C)
  • Pressure rating [psi]: 1087
  • Min. bursting pressure [psi]: 2175
  • Type of pressure: relative pressure
  • Min. insulation resistance [M]: 100; (500 V DC)
  • Protection class: III
  • Reverse polarity protection: yes
  • Number of inputs and outputs: Number of analog outputs: 1
  • Total number of outputs: 1
  • Number of analog outputs: 1
  • Analog current output [mA]: 4...20
  • Max. load []: 720; (Ub = 24 V; (Ub - 9,6 V) / 20 mA)
  • Overload protection: Yes
  • Measuring range [psi]: 0...200
  • Repeatability [% of the span]: < 0,1; (with temperature fluctuations < 10 K)
  • Characteristics deviation [% of the span]: < 0,35 (BFSL) / < 0,75 (LS); (BFSL = Best Fit Straight Line; LS = limit value setting)
  • Long-term stability [% of the span]: < 0,05; (per 6 months)
  • Temperature coefficient zero point [% of the span / 10 K]: 0,15; (0...80 C)
  • Temperature coefficient span [% of the span / 10 K]: 0,2; (0...80 C)
  • Step response time analogue output [ms]: 3
  • Storage temperature [C]: -40...100
  • Protection: IP 65
  • EMC: EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 30 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 10 V radiation of interference according to the automotive directive 2004/104/EC / CISPR 25 noise immunity according to the automotive directive 2004/104/EC / ISO 11452-2 HF radiated 100 V/m pulse resistance ISO 7637-2 / severity level 3
  • Shock resistance: DIN IEC 68-2-27 50 g (11 ms)
  • Vibration resistance: DIN IEC 68-2-6 20 g (10...2000 Hz)
  • MTTF [years]: 555
  • Pressure equipment directive: Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request
  • Weight [g]: 215.5
  • Materials (wetted parts): Stainless steel (1.4305 / 303); ceramics; FKM
  • Min. pressure cycles: 100 million
  • Restrictor element integrated: no (can be retrofitted)
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on PX3234 . Santa Clara Systems carries 2,078 items from Efector.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
