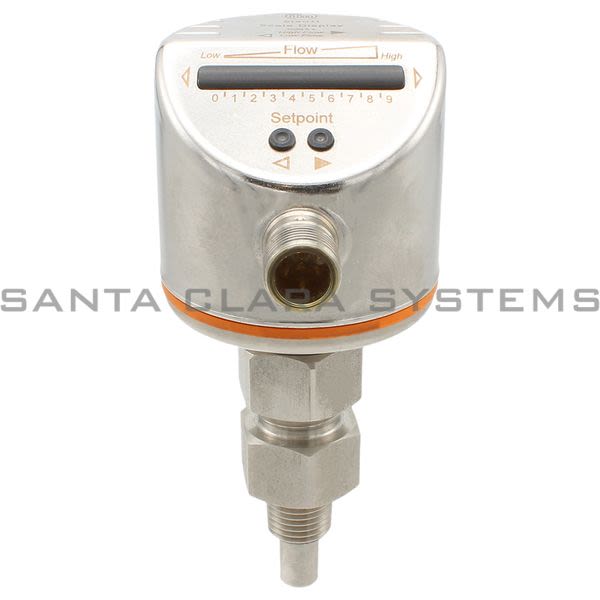

• Efector SI5011 Flow Monitor | SID10ADBFNKG/US-100 Product Image

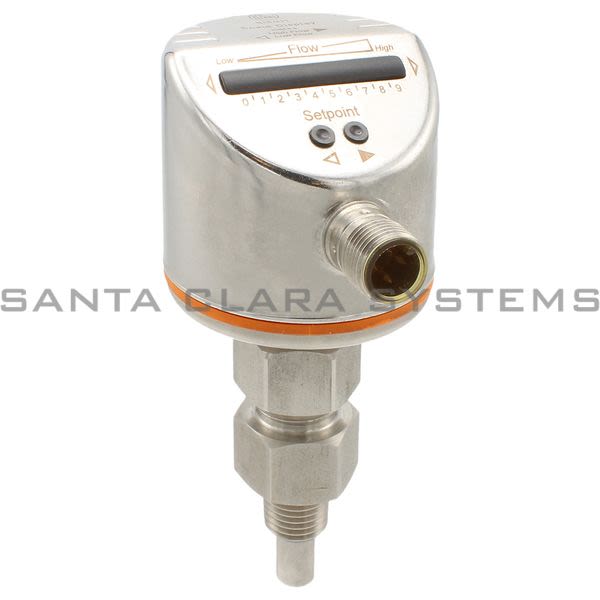

  • Efector SI5011 Flow Monitor | SID10ADBFNKG/US-100 Product Image

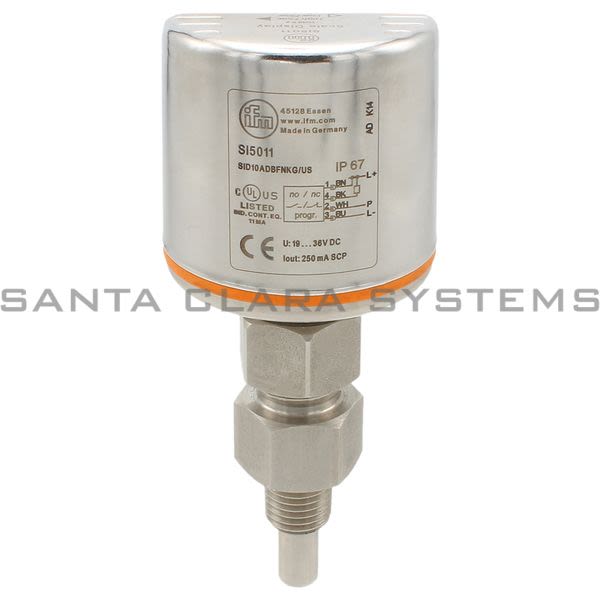

  • Efector SI5011 Flow Monitor | SID10ADBFNKG/US-100 Product Image

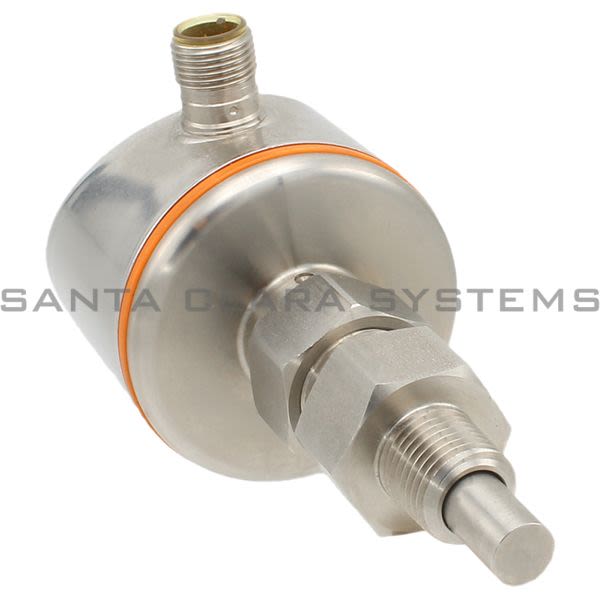

  • Efector SI5011 Flow Monitor | SID10ADBFNKG/US-100 Product Image
  • Efector SI5011 Barcode

SI5011

Product Summary:

  • Electrical Design: Npn
  • Output Function: Normally Open / Closed; (Configurable)
  • Media: Liquids; Gases
  • Medium Temperature [C]: -25...80
  • Pressure Rating [Bar]: 300
Get a Quote

Current response time:

By 5AM PT on Monday
  • Description: Flow Monitor | SID10ADBFNKG/US-100
  • Electrical Design: Npn
  • Output Function: Normally Open / Closed; (Configurable)
  • Material: Stainless Steel (1.4404 / 316L); Stainless Steel (1.4310 / 301); Pc; Pbt-Gf20; Epdm/X
  • Media: Liquids; Gases
  • Medium Temperature [C]: -25...80
  • Pressure Rating [Bar]: 300
  • Operating Voltage [V]: 19...36 Dc
  • Current Consumption [Ma]: < 60
  • Protection Class: Iii
  • Reverse Polarity Protection: Yes
  • Power-On Delay Time [S]: 10
  • Number Of Inputs And Outputs: Number Of Digital Outputs: 1
  • Total Number Of Outputs: 1
  • Output Signal: Switching Signal
  • Number Of Digital Outputs: 1
  • Max. Voltage Drop Switching Output Dc [V]: 2.5
  • Permanent Current Rating Of Switching Output Dc [Ma]: 250
  • Short-Circuit Protection: Yes
  • Type Of Short-Circuit Protection: Yes (Non-Latching)
  • Overload Protection: Yes
  • Probe Length L [Mm]: 45
  • Setting Range [Cm/S]: 200...3000
  • Greatest Sensitivity [Cm/S]: 200...800
  • Repeatability [Cm/S]: 1...5
  • Temperature Drift [Cm/S X 1/K]: 0.1; (For Water 5...100 Cm/S; 10...70 C)
  • Max. Temperature Gradient Of Medium [K/Min]: 300
  • Switch Point Accuracy [Cm/S]: 2... 10; (For Water 5...100 Cm/S; 25 C; Factory Setting)
  • Hysteresis [Cm/S]: 2...5; (For Water 5...100 Cm/S; 25 C; Factory Setting)
  • Response Time [S]: 1...10
  • Adjustment Of The Switch Point: Pushbuttons
  • Ambient Temperature [C]: -25...80
  • Storage Temperature [C]: -25...100
  • Protection: Ip 67
  • Emc: En 61000-4-2 Esd 4 Kv Cd / 8 Kv Ad En 61000-4-3 Hf Radiated 10 V/M En 61000-4-4 Burst 2 Kv En 61000-4-6 Hf Conducted 10 V
  • Shock Resistance: Din Iec 68-2-27 50 G (11 Ms)
  • Vibration Resistance: Din En 60068-2-6 20 G (55...2000 Hz)
  • Dimensions [Mm]: M18 X 1.5
  • Thread Designation: M18 X 1.5
  • Materials (Wetted Parts): Stainless Steel (1.4404 / 316L); O-Ring: Fkm 80 Shore A
  • Process Connection: M18 X 1,5 Internal Thread
  • Display: Function 10 X Led, Three-Colour
  • Connection: Connector: 1 X M12
  • Alternate Manufacturer Name: IFM
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on SI5011 . Santa Clara Systems carries 2,078 items from Efector.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
